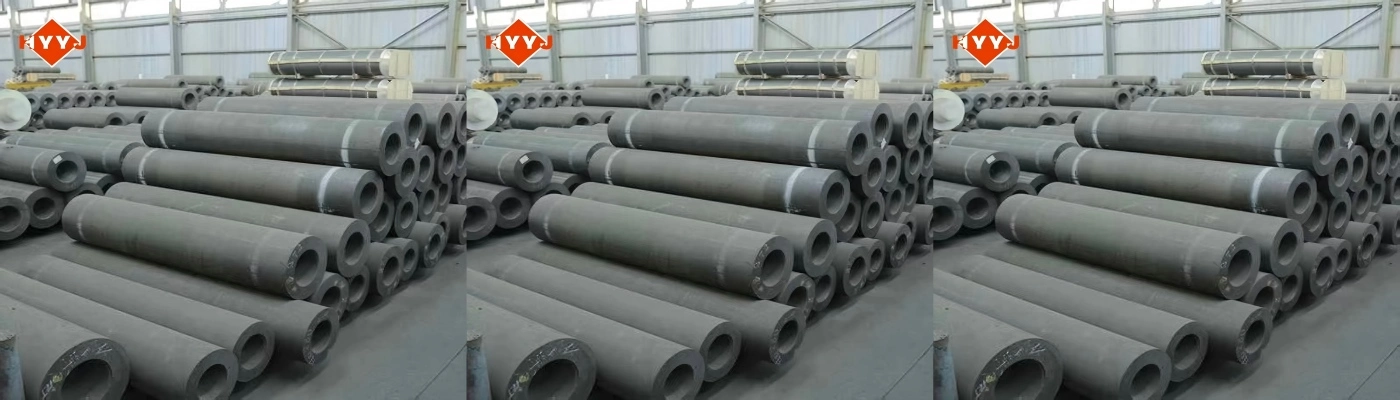

Furnace Graphite Electrode
High-Performance Furnace Graphite Electrode Solutions
Need dependable Furnace Graphite Electrode options for your electric arc furnace work? Shaanxi Heyuan sells graphite electrodes made for harsh industrial situations that are suitable for large businesses. Our electrodes can work in temperatures as high as 2800°C and have a better breaking strength of at least 25 MPa. Our solutions work with furnaces ranging in size from 6300kva to 72000kva, with diameters from 150mm to 700mm and lengths that can be changed up to 3 meters. With more than 20 years of experience in the field of metallurgy and work for more than 400 clients around the world, we can make sure that your steel production runs smoothly with little downtime and the best performance.
What Makes Our Graphite Electrodes Essential for Your Operations?
In order to make steel, you need stable electrical transmission in harsh environments. These graphite electrodes are the most important part of the connection between your power source and the melted metal. They turn huge electrical currents into the intense heat that steel needs to melt.
If you want to use an electric arc heater, you need wires that won't break when they get hot. Because it is made of high-purity graphite, it has great electrical and heat efficiency and doesn't rust. This means you won't have to change the electrodes as often and the arc will work better throughout all of your production processes.
Common problems in the industry can be solved by the special qualities of our electrodes. Because the electrical resistance is low (≤8 ¼··m), you'll use less energy. Cracks don't form when temperatures change quickly because of the low thermal expansion rate, and the high mechanical strength can handle the rough hits from falling scrap metal.
Technical Specifications
| Parameter | Specification | Benefits |
|---|---|---|
| Operating Temperature | Up to 2800°C | Maintains stability at extreme heat |
| Electrode Diameter | 150 ~ 700 mm (Customizable) | Fits various furnace capacities |
| Bending Strength | ≥ 25 MPa | Resists mechanical stress and breakage |
| Resistivity | ≤ 8 μΩ·m | Ensures efficient electrical conductivity |
| Ash Content | ≤ 0.5% | Minimizes impurities in steel production |
| Standard Length | 1.5 ~ 3 m (Customizable) | Flexible sizing for different applications |
| Service Life | ≥ 50 heats | Reduces replacement frequency |
Applications Across Metallurgical Processes
Electric Arc Furnace Steelmaking
Our ultra-high power electrodes help your main steel-making processes. These can handle the tough conditions of large-capacity furnaces and provide fast melting processes and reliable performance. Even when there is a sudden scrap fall, the sensors keep the arc stable.
Ladle Refining Operations
When steel is being refined, our electrodes allow for precise temperature control in secondary metallurgy processes. You'll have better control over adding alloys without picking up extra carbon, which will ensure that the end steel grade meets the requirements.
Submerged Arc Furnace Applications
When we make ferroalloys or silicon metal, our electrodes can stand up to chemical attacks from materials with complex charges. The ability to run continuously cuts down on production stops and keeps output steady.
Why Choose Shaanxi Heyuan's Furnace Graphite Electrode Solutions?
Proven Manufacturing Excellence

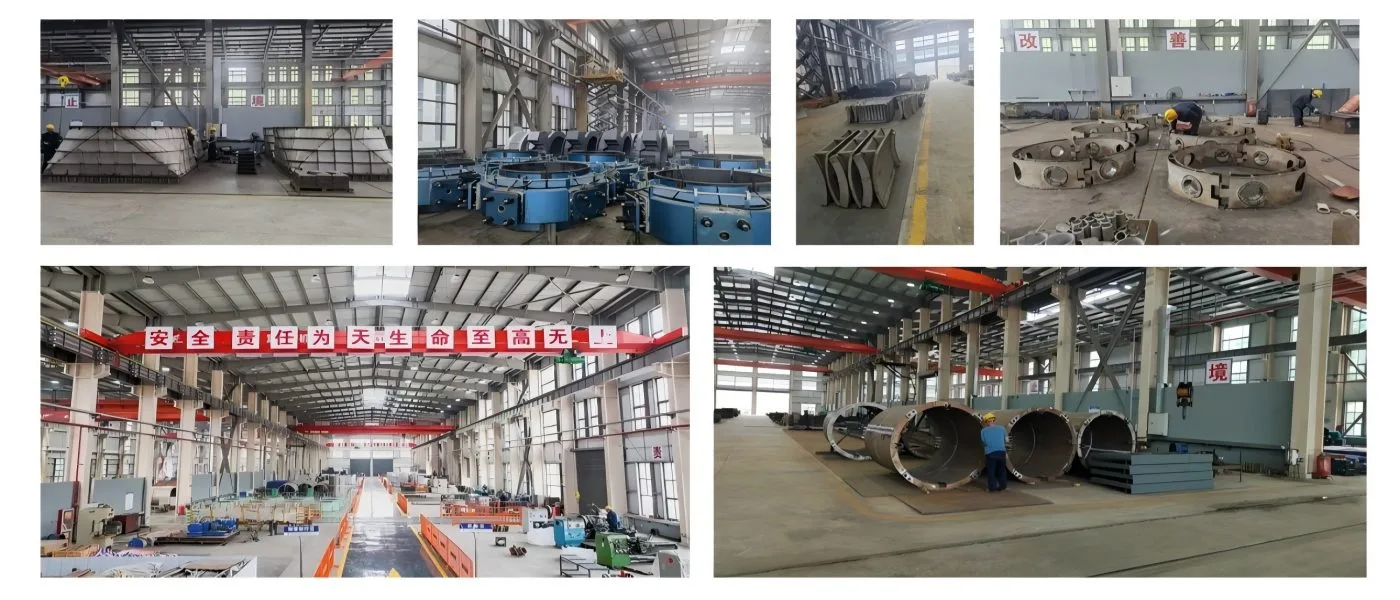

With production facilities in Xianyang and Shangluo, we maintain strict quality control throughout the manufacturing process. Our three-system certifications ensure consistent product quality that meets international standards.
Rapid Delivery Performance
Standard configurations ship within 15-20 days, keeping your operations running smoothly. Custom designs are delivered in 30-45 days with comprehensive quality inspection reports.
Comprehensive Technical Support
Our team of 11 senior experts provides on-site guidance for electrode installation and optimization. You'll receive matching connectors, specialized tools, and technical documentation with every order.
Customization Capabilities
Every furnace operation has unique requirements. We customize electrode diameter, length, and grade specifications to match your specific power requirements and smelting conditions.
Quality Advantages That Drive Your Success
Our high-purity graphite material delivers exceptional electrical conductivity while minimizing energy consumption. You'll notice reduced operating costs through improved efficiency and longer electrode life.
The extreme temperature resistance ensures stable performance at 2800°C without melting or deformation. This reliability translates to consistent production schedules and predictable maintenance windows.
Precise thread processing creates reliable electrode connections that prevent dangerous arc breakage during operation. This safety feature protects both equipment and personnel while maintaining production continuity.
Good thermal shock stability adapts to frequent temperature changes during your smelting cycles. The low coefficient of thermal expansion prevents structural failure under rapid heating and cooling conditions.
Global Experience You Can Trust
Since 2003, we've delivered electrode solutions to customers across South Korea, Uzbekistan, Kazakhstan, Iran, Vietnam, Thailand, Indonesia, and many other countries. This international experience means we understand diverse operational requirements and regulatory standards.
Our 400+ equipment installations worldwide demonstrate proven reliability in various industrial environments. From small specialty operations to large-scale steel production facilities, our Furnace Graphite Electrode solutions consistently deliver performance.
Contact Us
Ready to optimize your furnace operations with Furnace Graphite Electrode? Contact our experts at sxhyyj606@163.com for customized electrode solutions.
