Special Carbon Electrode Paste China Customized Manufacturers

Applications Raw material for self-baking electrodes of submerged arc furnaces and electric arc furnaces; continuously baked into solid electrodes during operation to conduct electricity, generate heat and supply smelting energy. Features Good plasticity and caking property; high carbon content, excellent electrical conductivity; stable baking performance without cracking; strong high-temp oxidation resistance. Key Parameters Operating Temperature: Up to 2000°C; Fixed Carbon Content: ≥88%; Softening Point: 70–90°C. Service Advantages Custom formula per furnace type, smelting process and electrode diameter; bulk or packaged supply options, fast delivery, convenient transportation; technical guidance on application and baking process optimization.

Special Carbon Electrode Paste - Premium Grade Self-Baking Electrode Solution

Looking for electrodes that will work reliably in your high-capacity furnace? Special Carbon Electrode Paste from Shaanxi Heyuan is very reliable and has a set carbon content of at least 88%. It can conduct electricity very well up to 2000°C. Our special recipe guarantees stable baking without cracking, and its 70–90°C breaking point makes sure that electrodes are formed consistently. With more than 11 years of experience in metallurgy and more than 400 successful furnace setups around the world, we can give you custom solutions that cut down on electrode use and improve the efficiency of your smelting.

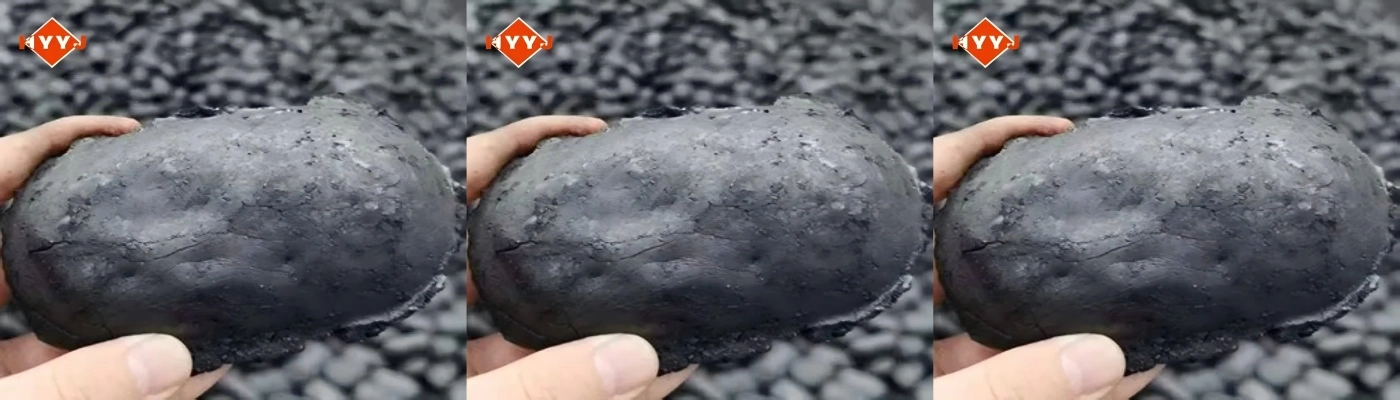

Special Carbon Electrode Paste

What Makes Our Carbon Electrode Paste Special?

Because we use complex recipe engineering, our carbon electrode paste stands out. We use precise binder ratios and high-purity materials to make a self-baking product that works consistently in harsh industrial settings.

The paste goes easily into the electrode case. As it moves down through the furnace's hot spots, it changes into solid electrical carbon. This slow hardening process makes sure that the electrical conductivity stays the same and the structure stays strong even at very high temperatures.

Our product works better because the raw materials we use were carefully chosen. Each batch goes through strict quality checks to make sure it meets the needs of your stove and how it works.

Key Applications Across Industries

Ferroalloy Production

For your ferrosilicon and ferrochrome processes, you need electrodes that can handle the rough conditions in the furnace. Our paste works consistently in high-temperature smelting processes, keeping arc operations stable even in furnaces with more than 30 MVA of power.

Calcium Carbide Manufacturing

For continuous running to work, the electrodes must work reliably. The paste has a high mechanical strength and can withstand wear from harsh charge materials. It also stays electrically conductive even after many production cycles.

Electric Arc Furnace Operations

Whether you're making steel or another metal, having steady electrode performance has a direct effect on how efficiently you run your business. Our recipe guarantees even sintering rates, which keeps furnaces from having to be shut down for expensive repairs.

Technical Specifications

Parameter	Specification
Operating Temperature	Up to 2000°C
Fixed Carbon Content	≥ 88%
Softening Point	70~90°C
Ash Content	≤ 4%
Volatile Matter	≤ 6%
Resistivity (After Baking)	≤ 50 μΩ·m

Performance Advantages

Superior Electrical Properties

High fixed carbon content and low resistivity deliver excellent electrical conductivity. You'll experience improved heat generation efficiency that translates to better furnace performance and reduced energy consumption.

Reliable Baking Characteristics

Stable baking performance ensures uniform shrinkage during the sintering process. This prevents electrode cracking that could disrupt your production schedule or damage furnace equipment.

Enhanced Workability

Good plasticity makes the paste easy to handle and compact. It fills electrode casings completely, ensuring close contact between the paste and casing for optimal current transfer.

Extended Service Life

Strong high-temperature oxidation resistance prolongs electrode life. You'll see reduced electrode consumption per ton of product, improving your operational economics.

Quality Consistency

Low ash content with no harmful impurities protects your final product quality. Stable batch-to-batch characteristics ensure predictable furnace operation and consistent results.

Why Choose Shaanxi Heyuan?

Proven Expertise

Since 2003, we've delivered over 400 furnace installations across diverse international markets. Our team of 11 senior experts brings deep metallurgical knowledge to every project.

Custom Solutions

We formulate Special Carbon Electrode Paste based on your specific furnace type, smelting process, and electrode diameter requirements. No two operations are identical, so your paste formulation shouldn't be either.

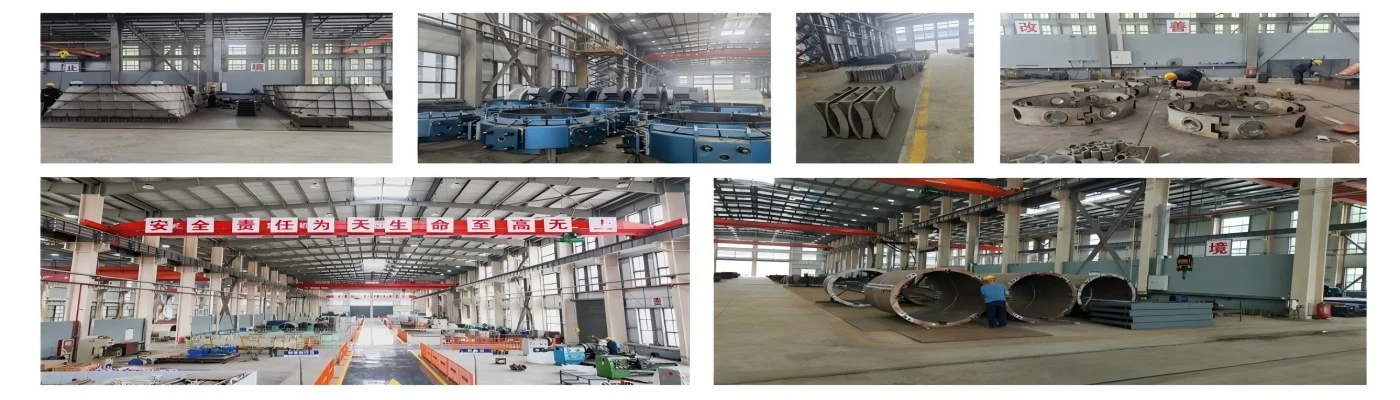

Factory Strength

Comprehensive Support

Beyond supplying quality paste, we provide technical guidance for application optimization and baking process improvement. Our experts help you achieve maximum electrode performance.

Flexible Supply Options

Choose between bulk or packaged supply based on your handling preferences. Standard configurations ship within 15-20 days, while custom formulations require 30-45 days from order confirmation.

After-sales service

Quality Assurance Process

Before being sent out, each batch goes through a lot of tests. We keep an eye on the flexibility, breaking point, ash content, and volatile matter release to make sure that your stove always works well.

By baking sample tubes to 1000°C and then checking their electrical conductivity, our lab acts like an oven. This process of checking makes sure that our product meets your operating needs.

Qualification Certification

Contact Us

Ready to improve your furnace electrode performance with Special Carbon Electrode Paste? Contact our technical team to discuss your specific requirements and receive customized formulation recommendations.
