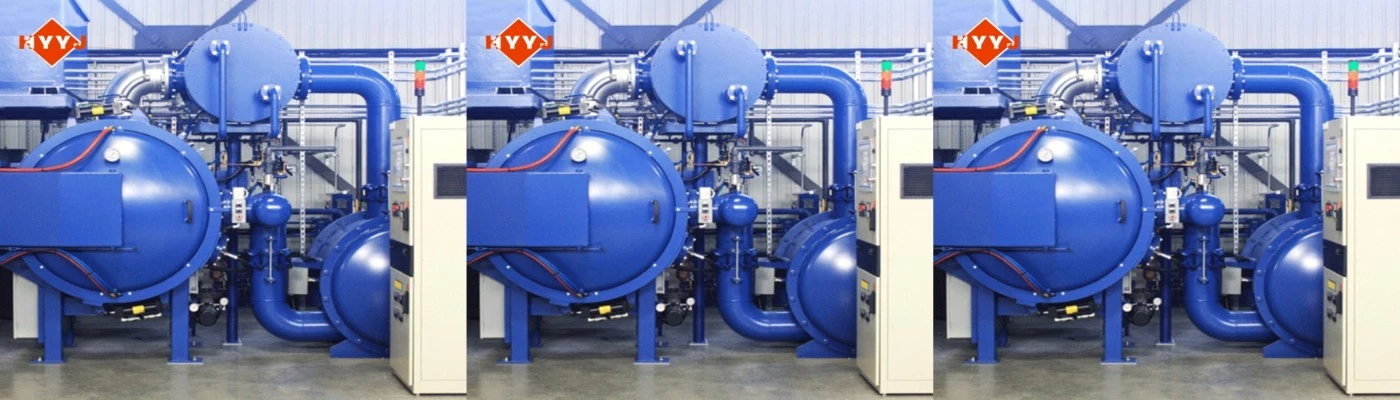

Industrial Vacuum Heat Treatment Furnace
Industrial Vacuum Heat Treatment Furnace - Precision Metallurgical Solutions by Shaanxi Heyuan
The Industrial Vacuum Heat Treatment Furnace at Shaanxi Heyuan is a cutting-edge piece of metal working equipment made for exacting work. Our furnaces work at temperatures of up to 1300°C and vacuum levels of up to 6.7×10⁻Pa, which guarantees the highest standard processes. Our systems have chambers that are 400x400x600mm up to 1200x1200x1800mm and can precisely control the temperature to within ±1°C for consistent results. Our team of 11 top experts and nearly 400 professionals with 11 years or more of metallurgical experience has helped us produce over 400 furnace systems around the world since 2003.
What Makes Our Vacuum Heat Treatment Technology Superior?
The way you make things needs to be very precise. That's exactly what our tools for vacuum heat treatment do. Oxidation and decarburization are bad things that can happen to metals when they are exposed to high temperatures in air. These worries are completely taken away by our vacuum surroundings.
Oxygen and reactive gases are taken out of your working room by the controlled low-pressure environment. This means that the surface finishes are perfect and there is no need for cleanup after processing. Your parts keep their excellent mechanical qualities and achieve physical stability that meets the strictest requirements.
Key Benefits You'll Experience:
- Zero oxidation or surface discoloration on your treated parts
- Enhanced mechanical properties that exceed conventional treatment methods
- Complete thermal process control for consistent batch results
- Uniform heat distribution throughout your workpieces
- Eliminated post-processing requirements saving time and costs
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | Room temperature - 1300°C |
| Furnace Chamber Size | 400×400×600mm ~ 1200×1200×1800mm (Customizable) |
| Vacuum Level | ≤6.7×10⁻²Pa |
| Temperature Control Precision | ±1°C |
| Temperature Uniformity | ≤3°C |
| Heating Element | Molybdenum wire / Graphite |
| Cooling Method | Double-layer water cooling |
| Vacuum Holding Time | ≥24 hours |
Industry Applications That Benefit From Our Systems
Aerospace and Defense Manufacturing
The mechanical qualities of your turbine parts must be perfect. Nickel-based superalloys like Inconel and titanium alloys can be solution treated and aged very well in our ovens. We stop the formation of alpha-cases, which keeps your jet engine parts safe during flight by ensuring they maintain vital wear resistance.
Tool and Die Production
When you use our Industrial Vacuum Heat Treatment Furnace to make injection molds and precise dies, the results are great. Hot-work tool steels and high-speed steels get the best strength with the least amount of deformation. Your complicated shapes keep their dimensions without having to go through a lot of grinding after treatment.
Medical Device Manufacturing
Our vacuum brazing and heat treatment methods make the surfaces of surgery tools and orthopedic implants clean and germ-free. This makes sure that biocompatibility standards are met and that medical uses have better rust resistance.
Precision Component Manufacturing
We have methods that stop oxidation and decarburization whether you're working with titanium metals, die steel, or stainless steel. Your precise parts get better quality without losing their accuracy in terms of size.
Our Complete Process Methodology
Heating Phase
Your things go into our sealed vacuum room, where resistive heating elements slowly raise the temperature. Our molybdenum wire or graphite elements keep your workpieces from oxidizing and spread heat evenly across them.
Soaking Stage
During the soaking time, we keep your goal temperature within ±1°C of it. This controlled phase makes sure that the microstructural change is the same across the whole batch, which gives you repeatable metallurgical qualities.
Controlled Cooling
Our two-layer water cooling system lets you precisely control the rate of cooling. When fast cooling is needed, we use inert gases like argon or nitrogen to get the hardness and strength characteristics you want.
Advanced Safety and Performance Features
Your operational safety is our priority. Our furnaces include comprehensive monitoring systems:
- Vacuum degree monitoring ensures optimal processing conditions
- Over-temperature alarm systems protect your valuable components
- Over-pressure protection maintains safe operating parameters
- Extended vacuum holding capability maintains ≤6.7×10⁻²Pa for over 24 hours
Why Choose Shaanxi Heyuan's Solutions?
You need more than equipment – you need a complete solution. Our integrated approach combines research, development, production, installation, and service under one roof. With metallurgical design qualifications and construction general contracting capabilities, we deliver turnkey systems that meet your exact specifications.
Our experienced team provides swift installation, superior quality assurance, and responsive after-sales support. When you choose our product systems, you're partnering with proven expertise that has served customers across South Korea, Uzbekistan, Kazakhstan, Iran, Vietnam, Thailand, and many other countries.
Making the Right Choice for Your Operations
Selecting the optimal vacuum furnace requires careful consideration of your specific requirements. Consider these factors:
- Your material types and processing requirements
- Required temperature ranges for your applications
- Production volume and load capacity needs
- Desired quenching methods and pressure specifications
- Technical support requirements for ongoing operations
Our team works closely with you to identify the perfect solution for your manufacturing needs. From compact research units to large-scale production systems, we customize our product technology to match your operational demands.
Contact Us
Ready to enhance your heat treatment capabilities with an Industrial Vacuum Heat Treatment Furnace? Contact us at sxhyyj606@163.com for expert consultation and customized solutions.
