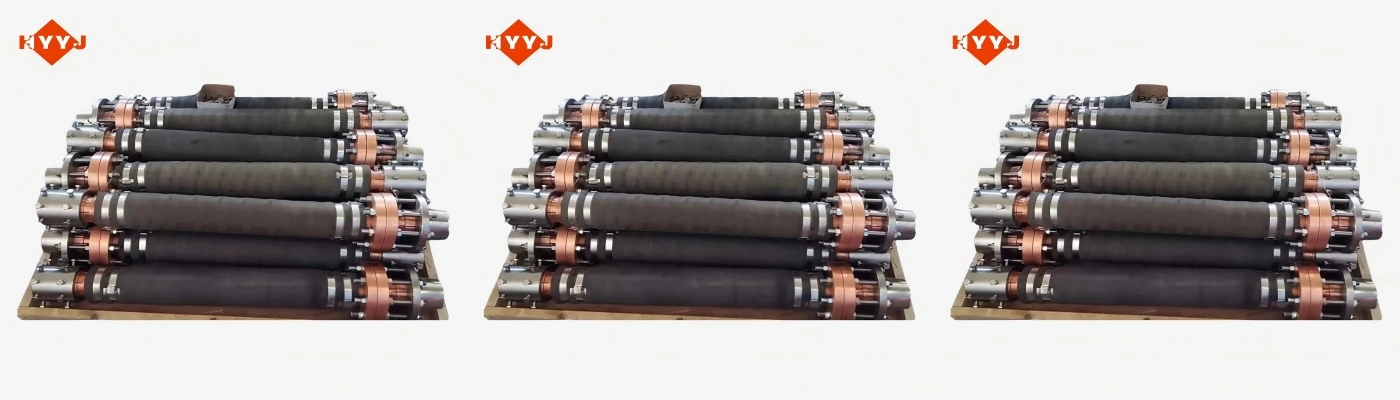

Water-Cooled Compensator
Premium Water-Cooled Compensator for Extreme Temperature Applications
Shaanxi Heyuan's Water-Cooled Compensator delivers enterprise-grade thermal expansion control for metallurgical systems operating at temperatures up to 800°C. Our specialized expansion joints feature advanced double-layer construction with active cooling circulation, maintaining metal component temperatures below critical thresholds. With compensation amounts ranging from ±50 to ±300 mm and customizable nominal diameters from DN100 to DN2000, these compensators effectively absorb pipeline thermal stress while preventing structural failure. Backed by our 11 years of metallurgical expertise and an operational team of nearly 400 professionals including 11 senior experts, we deliver reliable solutions that extend service life 3-5 times compared to conventional compensators.
Why Choose Water-Cooled Compensators for Your Industrial Operations?
High-temperature industrial processes demand robust thermal management solutions. Traditional expansion joints often fail under extreme heat, causing costly downtime and safety hazards. Our product addresses these critical challenges through innovative engineering.
The active cooling system circulates water around flexible bellows and internal sleeves, preventing metal components from reaching dangerous temperatures. This design prevents thermal yield failure and catastrophic structural breakdown in demanding environments like blast furnace systems and electric arc furnace operations.
Your facility benefits from superior vibration dampening capabilities. High-frequency mechanical vibrations in high-velocity gas flows can damage adjacent equipment. Our compensators isolate these vibrations, reducing noise levels and preventing fatigue cracking in connected ductwork.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | Up to 800°C |
| Nominal Diameter | DN100 ~ DN2000 (Customizable) |
| Compensation Amount | ±50 ~ ±300 mm (Customizable) |
| Working Pressure | 0.1 ~ 1.6 MPa |
| Material Options | Stainless Steel 304/316L |
| Sealing Material | High-Temperature Resistant Graphite |
| Metal Skin Temperature | Maintained < 100°C - 200°C |
| Cooling Water Velocity | >1.5 m/s (turbulent flow design) |
| Service Life Extension | 3-5x compared to conventional units |
Key Applications Across Heavy Industries
Iron and Steel Metallurgy
Our compensators excel in blast furnace hot blast stove branch pipes and tuyere stocks. These systems handle air temperatures exceeding 1200°C while protecting structural components from thermal damage. The water cooling prevents ductwork rupture during thermal expansion cycles.
Non-Ferrous Smelting Operations
Flash furnace uptake shafts and waste heat boiler connections benefit from our corrosion-resistant design. Beyond managing extreme heat, these compensators withstand aggressive SO2-rich flue gases common in copper and nickel smelting processes.
Electric Arc Furnace Systems
Primary suction ducts connecting furnaces to drop-out boxes experience violent temperature fluctuations. Our Water-Cooled Compensator maintains structural integrity during rapid heating cycles while minimizing dust adhesion through controlled inner wall temperatures.
Advanced Design Features
Double Sealing Structure
Reliable sealing performance prevents medium leakage under extreme conditions. High-temperature resistant graphite sealing materials maintain integrity across wide temperature ranges.
Flexible Operation Design
Low resistance to medium flow ensures minimal impact on system operations. The compensator accommodates significant axial, lateral, and angular movements without transmitting dangerous stress loads to connecting equipment.
Superior Material Selection
Stainless steel construction (304/316L options) provides exceptional corrosion resistance. Material selection follows ASME Boiler and Pressure Vessel Code standards for maximum safety and reliability.
Structural Rigidity
Robust construction bears pipeline weight and external forces while maintaining flexibility for thermal movement. This balanced design prevents both structural failure and operational restrictions.
Installation and Maintenance Advantages
Your maintenance team will appreciate the straightforward installation process. Critical installation checks include verifying water flow direction and removing shipping bars after installation but before system startup.
Water quality requirements are clearly defined. We recommend demineralized or softened industrial water to prevent calcium carbonate scaling within the cooling jacket. This maintains optimal heat transfer efficiency throughout the service life.
Our design prevents steam hammer through strategic outlet placement and calculated flow velocities. The water outlet positioning at the highest point facilitates proper air venting, while maintaining flow rates above 1.5 m/s prevents vapor lock conditions.
Service and Support Excellence
Shaanxi Heyuan provides comprehensive support from design through commissioning. Our one-stop service includes customization per your production needs, complete installation, and operator training.
Standard configurations ship within 15-20 days, while custom designs require 30-45 days from order confirmation. This efficient delivery schedule minimizes project delays and gets your systems operational quickly.

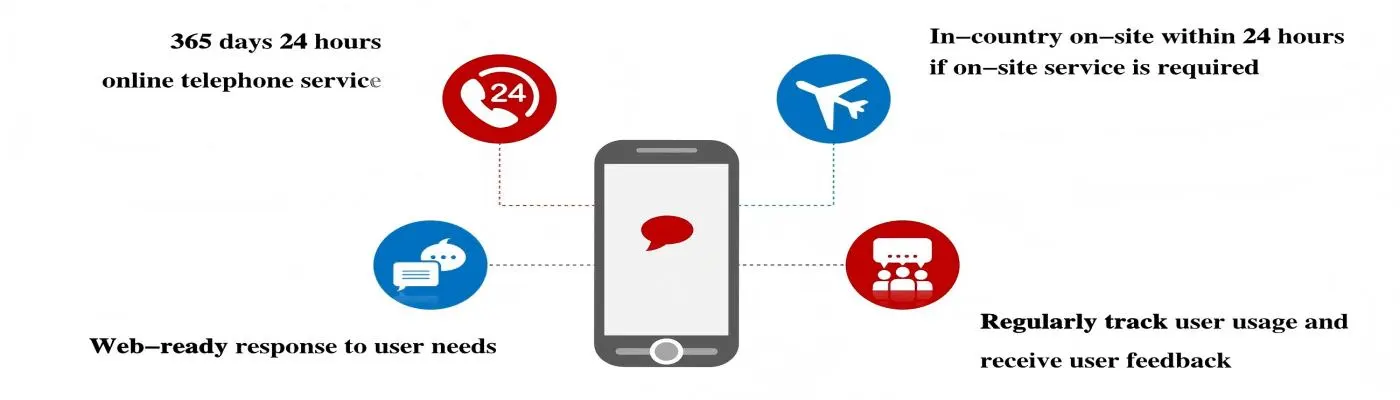

Software upgrades and after-sales support ensure continued optimal performance. Our technical team remains available for consultation throughout your compensator's service life.
Quality Assurance and Certifications
With metallurgical design qualifications and construction general contracting credentials, we meet international quality standards. Our three-system certifications demonstrate commitment to consistent excellence.
Over 400 delivered furnace equipment sets across global markets including South Korea, Kazakhstan, Iran, Vietnam, Thailand, and Indonesia prove our international expertise and reliability.
