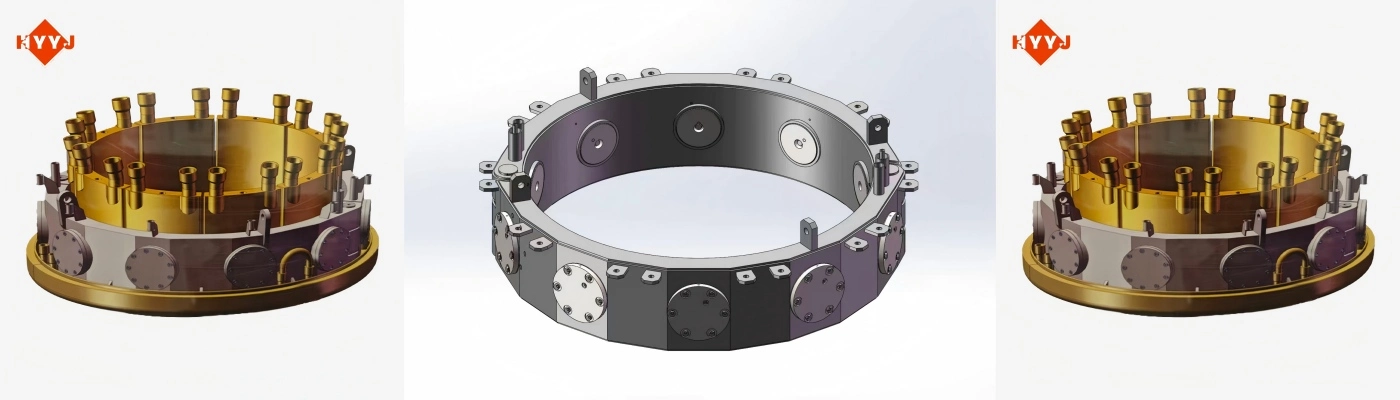

Electrode Pressure Ring
Professional Electrode Pressure Ring for Industrial Furnace Applications
Are you looking for safe ways to clamp electrodes for your electric furnace? With a gripping force that can be changed from 10 to 100 kN and a working temperature range of up to 500°C, Shaanxi Heyuan's Electrode Pressure Ring provides business-level performance. Our high-strength alloy steel design can hold electrodes with diameters between 100 and 800 mm, which ensures the best electrical conductivity and stable pressure transfer. With more than 20 years of experience in the field of metallurgy and more than 400 successful sites around the world, we offer full integration from concept to commissioning. Standard models are sent out within 15 to 20 days, while special setups take 30 to 45 days and come with professional installation instructions.
Understanding Electrode Pressure Ring Technology
In electric arc furnaces and underground arc furnaces, the electrode pressure ring is a very important part. This carefully designed part keeps the horizontal force on the contact shoes the same, which makes sure that the electrode and power system can conduct electricity as well as possible.
The function of your furnace depends on the electrodes staying in the same place and the current flowing smoothly. Without the right clamping force, the electrode could slip, the contact shoe could spark, and production could stop, which would cost a lot of money.
These problems can be solved by modern pressure ring devices that use controlled hydraulic or mechanical pressure. They keep a stable connection even when the temperature changes and the electrodes wear out.
Technical Specifications
| Parameter | Specification | Customizable Options |
|---|---|---|
| Operating Temperature | ≤ 500°C | Standard range |
| Clamping Force | 10 ~ 100 kN | Adjustable per requirements |
| Electrode Diameter | 100 ~ 800 mm | Custom sizing available |
| Material | High-Strength Alloy Steel | Non-magnetic options |
| Hardness (HRC) | ≥ 30 | Enhanced hardness grades |
| Service Life | ≥ 1 Year | Normal operating conditions |
| Delivery Time | 15-20 days standard | 30-45 days custom |
Key Features and Benefits
Superior Material Construction
Our pressure rings utilize high-strength alloy steel with exceptional rigidity. This construction prevents deformation under high clamping forces while maintaining dimensional stability throughout operation.
Optimized Contact Performance
The stable clamping mechanism ensures close contact between electrode and contact shoe assemblies. This reduces contact resistance and minimizes electrical losses in your furnace system.
High-Temperature Durability
Advanced metallurgy provides excellent high-temperature resistance. The material maintains strength without oxidation or softening at elevated operating temperatures.
Extended Service Life
Wear-resistant contact surfaces and robust construction deliver extended operational life. This reduces maintenance frequency and improves your overall production efficiency.
Industrial Applications
Ferroalloy Production
In ferrosilicon and silicomanganese production, pressure rings enable controlled Söderberg electrode slipping. They maintain proper baking zone positioning while handling dust-laden environments.
Calcium Carbide Manufacturing
These applications require continuous high-current operation. Our pressure rings prevent uncontrolled electrode dropping that can cause furnace eruptions and production delays.
Steel Refining Operations
DC and AC electric arc furnaces demand rapid current fluctuation handling. The pressure ring maintains necessary contact pressure for transmitting currents exceeding 100kA while withstanding high-vibration environments.
Quality Assurance and Testing
Every pressure ring undergoes comprehensive quality control procedures before delivery. Our testing protocols include dimensional verification, material certification, and performance validation.
Non-destructive testing ensures internal integrity while hydraulic testing validates pressure capabilities. This thorough approach guarantees reliable performance in your critical applications.
Material composition verification confirms steel grade compliance with your specifications. We maintain strict tolerances to ensure proper integration with existing contact shoe assemblies.
Installation and Maintenance Support
Our professional team provides comprehensive installation guidance for all pressure ring configurations. We supply matching fasteners and provide detailed assembly procedures to ensure proper integration.

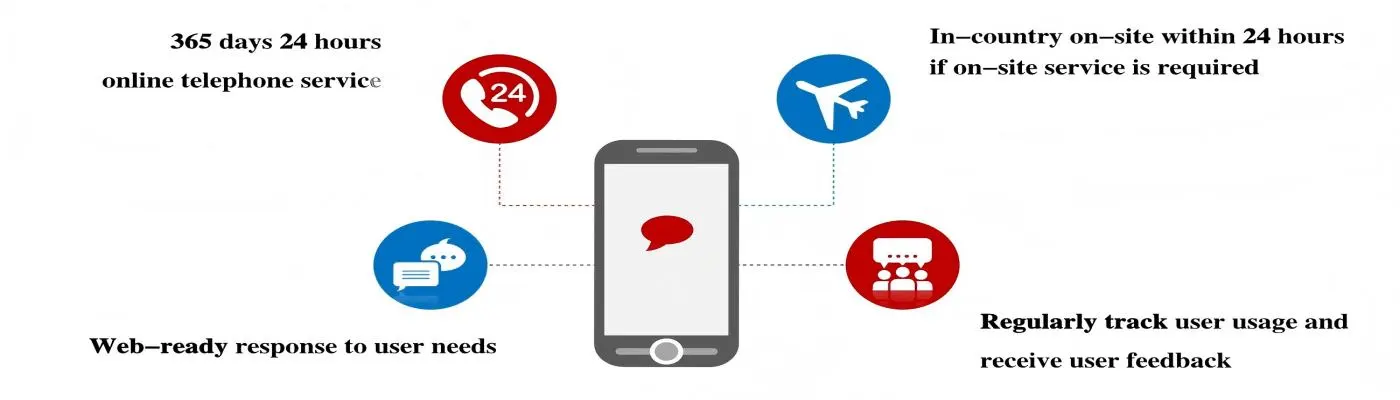

Regular maintenance recommendations help maximize service life and performance. We offer ongoing technical support and replacement part availability throughout the operational lifecycle.
Customization capabilities allow adaptation to specific electrode diameters and equipment requirements. Our engineering team works closely with you to optimize performance for your unique applications.
Why Choose Shaanxi Heyuan?

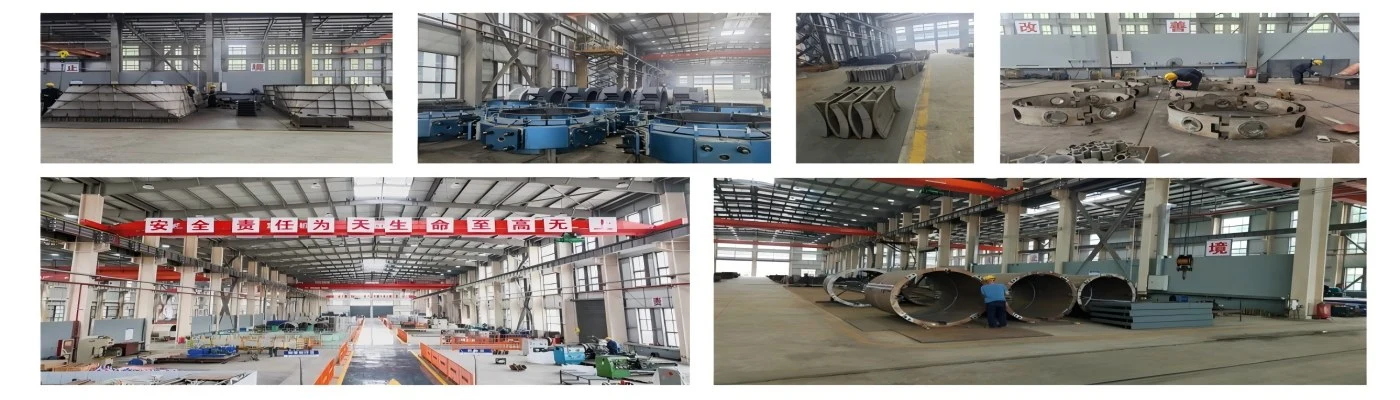

With over 20 years in metallurgical equipment manufacturing, we bring proven expertise to every project. Our 400-strong professional team includes 11 senior experts ensuring rapid service response and technical excellence.
We've delivered more than 400 furnace equipment sets to customers across 15+ countries. This global experience provides valuable insights for optimizing your product performance.
Our integrated approach combines research, development, production, installation, and service. This comprehensive capability ensures seamless project execution from concept to commissioning.
Quality certifications and construction qualifications demonstrate our commitment to industry standards. We provide complete equipment solutions from 6,300kVA to 72,000kVA capacity ranges.
Contact Us
Ready to enhance your furnace performance with Electrode Pressure Ring? Contact our technical team at sxhyyj606@163.com for customized solutions and expert consultation.
