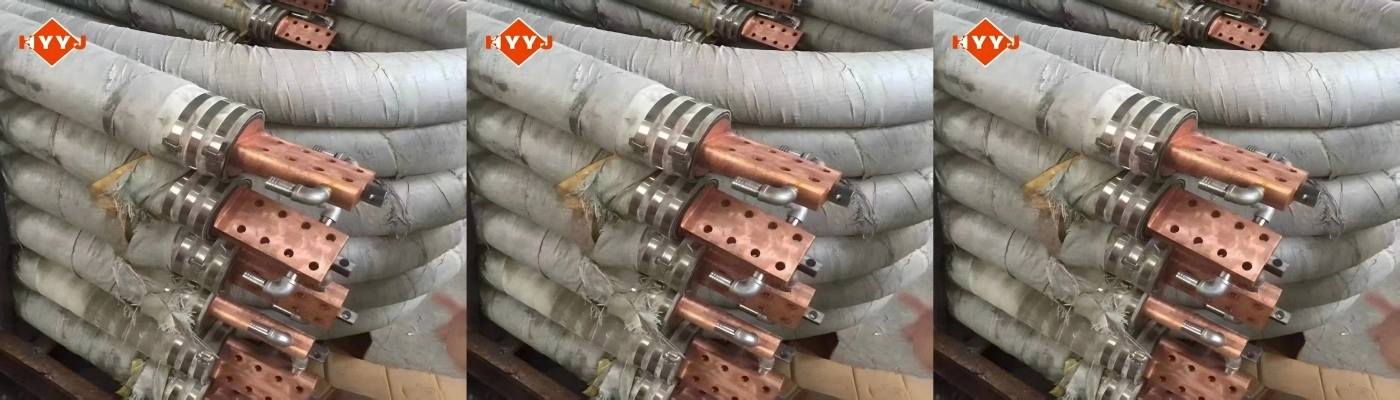

Furnace Water Cooled Cable

Furnace Water Cooled Cable - High-Performance Electrical Conductors for Metallurgical Furnaces

Shaanxi Heyuan's Furnace Water Cooled Cable delivers enterprise-grade performance for electric arc furnaces, ladle refining operations, and submerged arc furnace applications. Our water-cooled cables handle massive currents from 5,000A to 50,000A while operating in temperatures up to 600°C. With over 400 delivered furnace equipment sets worldwide and 11 years of metallurgical expertise, we provide customizable cable solutions ranging from 3-15 meters in length. Our high-purity copper conductors (≥99.9%) ensure minimal energy loss and stable operation.

What Makes Our Water Cooled Cables Essential for Your Operations?

Superior Current Handling Capacity

Your furnace operations demand reliable power transmission without interruption. Our water-cooled cables excel in three critical industrial scenarios. Electric arc furnaces require massive power loads while withstanding violent furnace movements. Your steelmaking process depends on cables that survive constant flexing and extreme ambient temperatures.

Ladle refining applications need precise temperature control. Our flexible design allows accurate electrode positioning during your alloying processes. For vacuum induction furnaces, space limitations make our compact, cool-running design essential for protecting surrounding equipment.

Advanced Cooling Technology

Heat dissipation sets our cables apart from standard conductors. Internal water circulation prevents conductor melting under high current densities. This cooling system mitigates the skin effect, reducing AC resistance significantly. Your operations benefit from consistent performance without thermal degradation.

The efficient water cooling structure ensures fast heat dissipation. This maintains stable operation even under maximum current loads. Your furnace productivity increases when power transmission remains reliable throughout extended production cycles.

Technical Specifications

Key Performance Advantages

Electrical Excellence

High-purity copper construction delivers exceptional electrical conductivity with minimal energy loss. Low resistivity design optimizes your power factor while reducing operating costs. The segmented strand arrangement minimizes reactance and power losses from proximity effects.

Mechanical Durability

Flexible construction adapts to electrode movement and narrow installation spaces. Your furnace operations continue smoothly despite repetitive tilting, swinging, and vibration. The robust design withstands mechanical fatigue that destroys standard cables.

Safety Features

Sealed water cooling joints provide high pressure resistance without leakage risks. High-temperature resistant insulation maintains excellent electrical isolation. Strong anti-interference capability ensures stable current transmission for improved smelting consistency.

Thermal Management

The hollow-core design increases effective conductor surface area. This dramatically reduces AC resistance compared to solid conductors. Efficient heat exchange through turbulent water flow maintains optimal operating temperatures.

Quality Assurance and Testing

Comprehensive Inspection Standards

Every Furnace Water Cooled Cable undergoes rigorous quality control procedures. Hydrostatic pressure testing subjects cables to 1.5 times working pressure, ensuring zero leakage at terminals and hose connections.

DC resistance measurements verify the integrity of copper cross-sections using precision micro-ohmmeters. Water flow verification confirms internal geometry doesn't restrict coolant passage. Insulation resistance testing validates electrical isolation performance.

Installation and Maintenance Support

Proper installation length prevents torsional stress that causes premature failure. Our technical team provides guidance on water quality requirements. Demineralized cooling water with pH 7-9 and inlet temperature below 35°C ensures optimal performance.

Non-magnetic stainless steel terminal clamps prevent eddy current heating. This eliminates connection point overheating that leads to system failure.

Manufacturing and Delivery

Custom Solutions for Your Application

Standard configurations ship within 15-20 days of order confirmation. Custom designs require 30-45 days for specialized requirements. Our design team creates solutions matching your specific production needs.

One-stop service includes design, integration, installation, and commissioning. Software upgrades and operator training ensure your team maximizes equipment performance. After-sales support maintains your investment long-term.

Proven Track Record

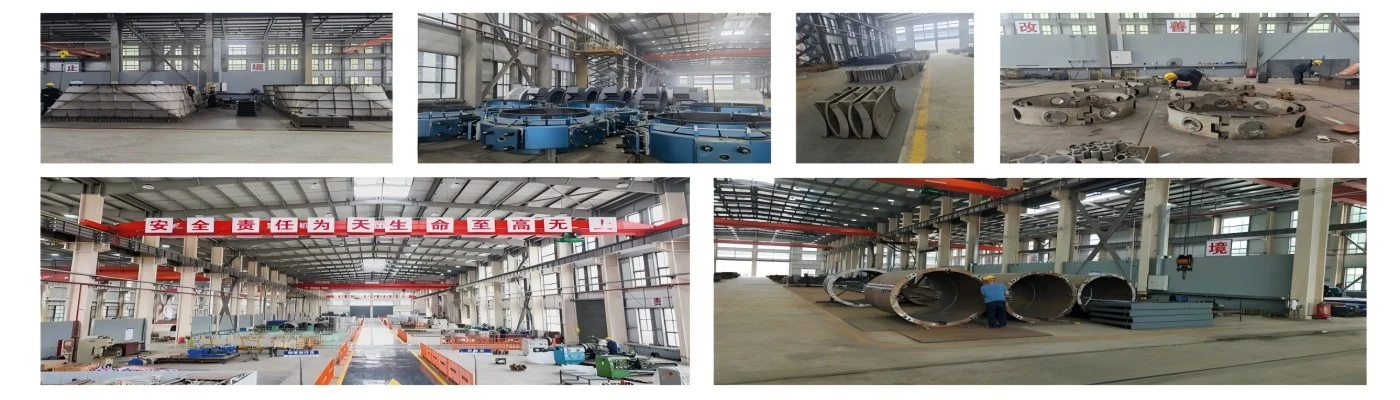

Since 2003, Shaanxi Heyuan has delivered reliable metallurgical equipment across global markets including South Korea, Kazakhstan, Vietnam, Thailand, and Indonesia. Our 400-member professional team includes 11 senior experts ensuring rapid service response.

Why Choose Shaanxi Heyuan?

Your metallurgical operations deserve proven reliability. Our integrated research, development, production, and service capabilities ensure comprehensive support. With metallurgical design qualifications and construction contracting credentials, we provide complete 6,300kVA to 72,000kVA equipment solutions.

The product represents our commitment to first-class technology, superior quality, and exceptional service. Your operations benefit from equipment designed specifically for demanding industrial environments.

Contact Us

Ready to upgrade your furnace electrical systems with Furnace Water Cooled Cable? Email us at sxhyyj606@163.com for technical specifications and custom solutions.
