Furnace Water-Cooling System - Professional Industrial Cooling Solutions

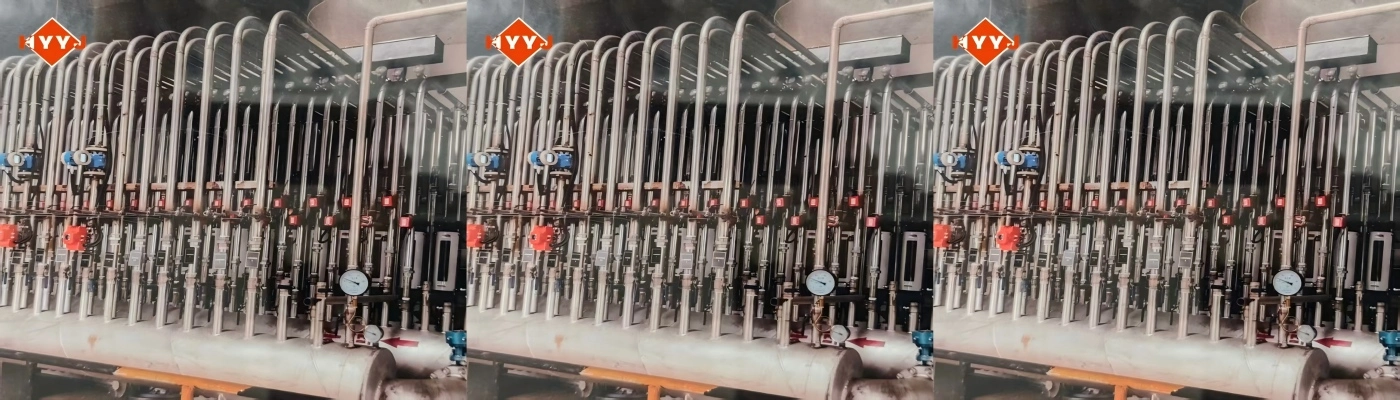

Shaanxi Heyuan's Furnace Water-Cooling System delivers enterprise-grade thermal protection for high-temperature industrial applications. When coming in at ≒35°C and going out at ≤60°C, our advanced cooling solutions work. You can change the flow rates from 10 to 500 m³/h and the working pressures from 0.3 to 1 MPa. Our cooling capacity runs from 50 to 5000 kW, and we've shipped more than 400 furnace systems around the world and have 11 years of experience in the metalworking industry. This solid infrastructure keeps parts from getting too hot, extends the life of equipment, and ensures the highest level of safety during work in electric arc furnaces, buried arc furnaces, and blast furnaces.
What Makes Our Cooling System Essential for Your Operations?
The conditions in which your boiler works are very harsh. If you don't handle temperature properly, your tools could break down badly and cost a lot to fix.
Our water cooling system keeps important burner parts from getting too hot, up to 1,600°C. The system builds a shield that keeps structures from getting damaged and keeps operations running smoothly.
Critical Applications
Protecting your electric arc furnace: Our tubular panel design is good for the sides and tops of your EAF. We use up to 70% less standard refractory materials, which means your upkeep costs per ton of steel will go down by a lot.
Blast Furnace Parts: Our copper cooling elements can handle the roughest conditions at hearth level. The fast-moving water channels keep the shell from melting when it comes into touch with molten iron and slag all the time.
Off-Gas Ductwork: Our cooling jackets can handle toxic gases at 1,200°C+ for your smelting business. Before gases get into filtering systems, this stops ducts from twisting and sulfur from rusting.
Technical Specifications & Parameters
| Parameter | Specification | Notes |
|---|---|---|
| Cooling Water Temperature | Inlet ≤35°C, Outlet ≤60°C | Optimal heat transfer range |
| Water Flow Rate | 10-500 m³/h | Fully customizable |
| Working Pressure | 0.3-1.0 MPa | Safe operational limits |
| Cooling Capacity | 50-5000 kW | Scalable to your needs |
| Water Quality | Conductivity ≤50 μS/cm | Prevents scaling and corrosion |
| Control Mode | Automatic/Manual | Flexible operation modes |
Key Features That Protect Your Investment
Efficient Heat Dissipation: Our modern heat exchanger technology makes sure that parts that are hot cool down quickly. You always have heat safety, even when operations are at their busiest.
Precise Control Systems: Flow and temperature control can be changed to fit different heating conditions. No matter how production changes, your processes stay the same.
Saving Water: The closed-loop drainage system saves water and lowers your costs of doing business. You follow the rules for the surroundings without lowering speed.
Better Durability: Treatments that stop rust and scale buildup make systems last longer. The goods you sell will last for years and years with very little upkeep.
Safety Integration: Alarms built in watch for low water pressure, high temperatures, and situations of high pressure. You are automatically protected in case the system fails.
Why Choose Shaanxi Heyuan's Solution?
Our metallurgical expertise spans over two decades. We understand your operational challenges and deliver solutions that work.
Complete Service Package: From initial design to final commissioning, we handle everything. Our team of nearly 400 professionals, including 11 senior experts, ensures rapid response to your needs.
Proven Track Record: With over 400 furnace systems delivered globally, we've solved cooling challenges across diverse applications. Our solutions operate successfully from South Korea to Paraguay.
Customization Capability: Every Furnace Water-Cooling System is tailored to your specific furnace type and components. We design, select, install, and commission based on your exact requirements.
Ongoing Support: Regular maintenance, descaling, and system optimization keep your equipment running efficiently. You get continuous support throughout your system's lifecycle.
Fast Delivery & Installation
Your production schedule matters to us. Standard configurations ship within 15-20 days of order confirmation. Custom designs require 30-45 days, ensuring you get precisely what your operation needs.
Our installation teams work efficiently to minimize your downtime. We coordinate closely with your maintenance windows to ensure smooth integration with existing systems.
Investment in Operational Excellence
A properly designed product is essential for modern metallurgical operations. The cost of thermal protection is minimal compared to the expense of equipment replacement or extended downtime.
Our systems prevent the overheating that damages induction coils, reduces conductivity, and increases electrical resistance. You maintain peak furnace efficiency while protecting your capital investment.
The freeze line created by our cooling technology protects your steel shell from direct exposure to extreme temperatures. This extends campaign life and reduces refractory replacement frequency.
Contact Us
Ready to protect your furnace investment with the Furnace Water-Cooling System? Contact our experts at sxhyyj606@163.com for customized cooling solutions that meet your specific operational requirements.
