Furnace Self-Baking Electrode China Customized Manufacturers

Application Electric heating component for submerged arc furnaces (ferroalloy, calcium carbide, yellow phosphorus smelting). Baked into solid electrode by smelting heat, conducts electricity, generates arcs for smelting energy. Characteristics Good electrical & thermal conductivity; high-temperature & oxidation resistance; stable baking (no cracking); strong molten slag erosion resistance. Key Parameters Operating Temperature: ≤ 2000°C; Electrode Diameter: 300~1200 mm; Current Density: 3~8 A/mm² Service Advantages Customizable diameter, length & formula per furnace type and smelting process; matching electrode paste & professional baking guidance provided; large inventory, stable supply, long-term contracts supported.

Furnace Self-Baking Electrode - Advanced Electric Arc Furnace Solutions

Your metallurgical operations demand reliable, cost-effective electrode solutions. Shaanxi Heyuan's Furnace Self-Baking Electrode systems deliver continuous operation for submerged arc furnaces with proven performance at temperatures up to 2000°C. Our advanced self-baking technology supports electrode diameters from 300 to 1200mm, handling current densities of 3-8 A/mm² for ferroalloy, calcium carbide, and phosphorus smelting applications. With over 11 years of metallurgical expertise and 400+ furnace installations worldwide, we provide enterprise-grade solutions backed by our 400-professional team including 11 senior experts.

Furnace Self-Baking Electrode

What Makes Our Self-Baking Electrodes Superior?

Our electrode systems work differently from traditional pre-baked alternatives. The product forms directly within your furnace using specialized carbonaceous paste in a steel casing. As the electrode consumes at the tip, heat from your smelting process bakes the paste above, creating a continuous, solid carbon conductor.

This technology eliminates costly downtime for electrode joining. You get uninterrupted smelting operations while reducing overall operational costs. The steel casing provides structural integrity through ribbed construction, ensuring stable performance even under heavy furnace loads.

Key Applications for Maximum Efficiency

Ferroalloy Production

Perfect for ferrosilicon and silicomanganese smelting where large electrode diameters exceed 1.5 meters. Our electrodes handle currents over 100kA while maintaining stability during heavy burden movements in reducing atmospheres.

Calcium Carbide Manufacturing

The steel casing design works ideally for calcium carbide production. Iron content from the melting casing integrates compatibly with your final carbide product, unlike other electrode types that introduce problematic contamination.

Specialized Metallurgical Processes

For platinum group metals and matte smelting operations, our electrodes provide consistent heat distribution. The continuous operation maintains undisturbed slag layers, optimizing phase separation in your settling furnaces.

Technical Specifications

Parameter	Specification
Operating Temperature	Up to 2000°C
Electrode Diameter	300 ~ 1200 mm (Customizable)
Current Density	3 ~ 8 A/mm²
Fixed Carbon Content	≥ 88%
Resistivity (After Baking)	≤ 60 μΩ·m
Length	2 ~ 6 m (Customizable)

Performance Advantages You Can Count On

Superior Electrical Properties: High fixed carbon content and low resistivity deliver excellent conductivity and heat generation efficiency for your operations.

Stable Baking Performance: Uniform shrinkage during the baking process prevents electrode breakage, ensuring continuous production without unexpected shutdowns.

Enhanced Durability: Strong resistance to high-temperature oxidation and molten slag erosion extends service life, reducing replacement frequency and costs.

Mechanical Reliability: Post-baking strength supports electrode weight and furnace charge loads without structural failure.

Smooth Operation: Clean surface finish minimizes arc fluctuation, maintaining stable smelting conditions throughout your production cycles.

Customization and Service Excellence

We customize every Furnace Self-Baking Electrode system to match your specific furnace type and smelting requirements. Our engineering team adjusts diameter, length, and paste formulation based on your operational parameters.

You receive matching electrode paste and comprehensive professional baking guidance. Our large inventory ensures stable supply chains, and we support long-term contracts for consistent pricing and availability.

Standard configurations ship within 15-20 days. Custom designs require 30-45 days from order confirmation, giving you predictable delivery schedules for production planning.

After-sales service

Quality Assurance Process

Our quality control covers both electrode paste inspection and steel casing fabrication. We test paste plasticity, elongation, and sintering behavior to prevent operational issues. Ash content verification keeps impurities below acceptable limits for your alloy specifications.

Steel casing fabrication maintains strict tolerances with circularity precision and high-penetration welding for internal ribs. This ensures proper current conduction and structural support before baking completion.

Why Choose Shaanxi Heyuan?

Since 2003, we've delivered proven metallurgical solutions worldwide. Our complete integration of research, development, production, installation, and service streamlines your project experience. With installations across South Korea, Uzbekistan, Kazakhstan, Iran, Vietnam, and many other countries, we understand diverse operational requirements.

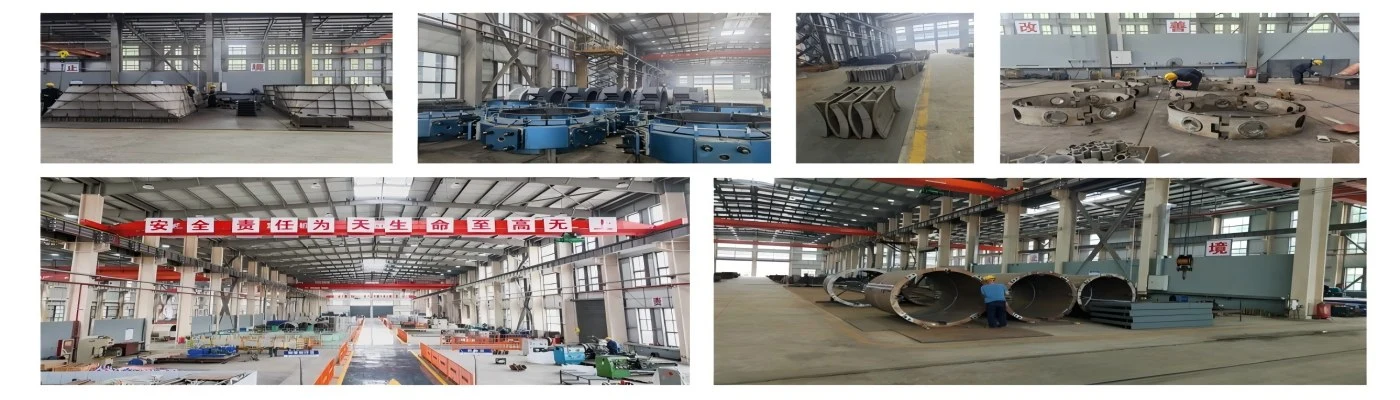

Factory Strength

Our three-system certifications and metallurgical design qualifications demonstrate technical competency. We provide complete equipment packages from 6300kVA to 72000kVA for comprehensive ferroalloy plant construction.

Qualification Certification

Contact Us

Ready to optimize your furnace operations with Furnace Self-Baking Electrode? Contact our team today at sxhyyj606@163.com for technical consultation and custom electrode solutions.
