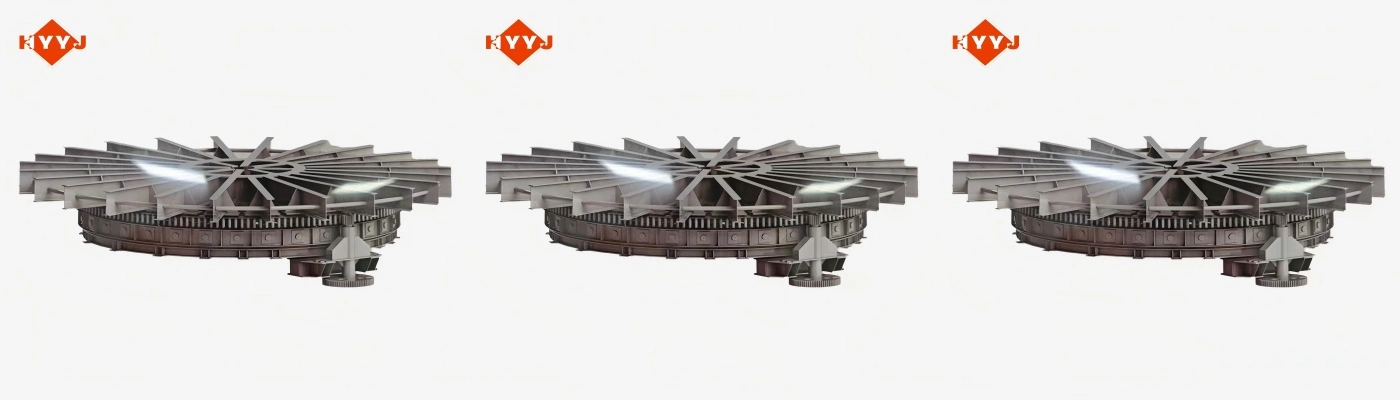

Furnace Body Rotation Mechanism
Furnace Body Rotation Mechanism - Industrial Metallurgical Equipment
Shaanxi Heyuan's Furnace Body Rotation Mechanism delivers precision rotation control for tilting arc furnaces and converters. Our system features 0-180° adjustable rotation, motor power ranging from 15-160 kW, and operates reliably in -10°C to 200°C environments. With rotating torque capacity of 50-5000 kN·m and ±0.5° angle precision, this mechanism ensures smooth smelting operations. Backed by our 20+ years of metallurgical expertise and 400+ global installations, you get reliable performance for your critical furnace operations.
What is a Furnace Body Rotation Mechanism?
A product serves as the backbone of modern furnace operations. This sophisticated system rotates your furnace body to optimize charging, slag removal, and tapping processes.
The mechanism solves critical industry challenges. It eliminates thermal cold spots during scrap melting. It prevents refractory erosion by distributing heat evenly. Your electrode breakage risks drop significantly. Process efficiency improves through faster melting cycles.
You benefit from precise angle control. The system handles massive furnace loads safely. Smooth operation reduces vibration and noise in your plant.
Key Technical Specifications
| Parameter | Range | Details |
|---|---|---|
| Operating Temperature | -10°C ~ 200°C | All-weather operation |
| Rotating Angle | 0° ~ 180° | Fully adjustable |
| Motor Power | 15 ~ 160 kW | Customizable for your needs |
| Rotating Torque | 50 ~ 5000 kN·m | Heavy-duty capacity |
| Rotating Speed | 0.5 ~ 5 r/min | Variable speed control |
| Drive Mode | Hydraulic/Electric | Your choice of system |
| Angle Accuracy | ±0.5° | Precision positioning |
Core Advantages for Your Operations
Superior Load Handling
Our high-strength gear and bearing components support massive furnace weights. You get reliable operation even with full charge loads. The robust design handles both furnace body and molten metal weight effortlessly.
Precision Control System
Achieve exact positioning with ±0.5° angle accuracy. This precision ensures perfect alignment for charging and tapping operations. Your process control improves dramatically.
Smooth Operation Technology
Choose between hydraulic or electric drive systems. Both deliver vibration-free rotation. Your furnace experiences minimal mechanical stress during operation.
Enhanced Safety Features
The self-locking device secures your furnace at any angle. Emergency stops engage instantly. Multiple safety interlocks protect your equipment and operators. Peace of mind comes standard.
Long-Term Reliability
Strong structural design extends service life. Low maintenance requirements reduce your operating costs. Simple operation supports both manual and automatic control modes.
Industrial Applications
Electric Arc Furnace Operations
Your EAF benefits from improved arc efficiency. The rotation system prevents electrode damage from collapsing scrap. Energy distribution becomes uniform across the charge. Melting cycles complete faster with lower power consumption.
Converter Processes
Optimize your converter operations through precise angle control. Slag removal becomes more efficient. Metal tapping flows smoothly. Process consistency improves significantly.
Ladle Refining Systems
The Furnace Body Rotation Mechanism enhances ladle positioning. You achieve better alloy mixing. Temperature distribution stays uniform. Final product quality meets stringent specifications.
Quality Assurance Standards
Shaanxi Heyuan implements rigorous quality control. Every slewing bearing undergoes ultrasonic testing. Gear tooth hardness profiles meet international standards. Hydraulic systems pass pressure tests at 1.5x operating pressure.
Laser alignment ensures perfect concentricity. Factory acceptance testing simulates full load conditions. Motor performance verification confirms specifications. Emergency systems undergo thorough testing.
Service Excellence
Design Flexibility
We customize torque, angle, and structure for your specific furnace. Our engineering team adapts to your capacity requirements. Weight considerations factor into every design decision.
Complete Support Package
You receive one-stop service from design through commissioning. Our installation team provides on-site training. Long-term maintenance support includes spare parts supply. Technical assistance continues throughout equipment life.
Fast Delivery
Standard configurations ship within 15-20 days. Custom designs require 30-45 days from order confirmation. Our manufacturing efficiency keeps your projects on schedule.
Why Choose Shaanxi Heyuan?
With over 400 installations worldwide, we understand your challenges. Our nearly 400 professionals include 11 senior experts. This expertise ensures rapid response to your needs.
Twenty years of metallurgical experience backs every product we deliver. We've served customers across South Korea, Vietnam, Kazakhstan, and many other countries. Your success drives our innovation.

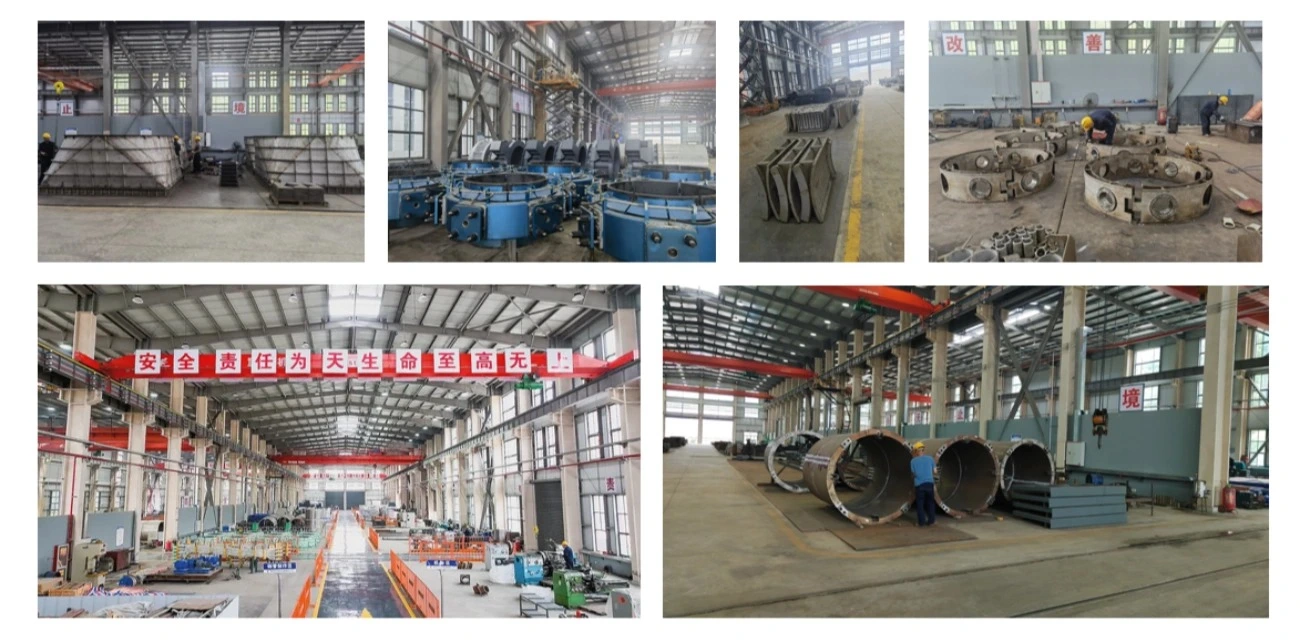

Our integrated approach covers research, development, production, and service. This comprehensive capability means single-source responsibility for your project. Quality control remains consistent throughout.
Contact Us
Ready to optimize your furnace operations with the Furnace Body Rotation Mechanism? Contact our experts at sxhyyj606@163.com for customized solutions and technical specifications.
