Furnace Electrode System: Advanced High-Current Solutions for Industrial Furnaces
Shaanxi Heyuan's Furnace Electrode System provides high-quality ways to send power to electric arc and buried arc furnaces. With precise positioning control (±1 mm accuracy), our combined system can handle electrode sizes from 150 to 1200 mm. The system works successfully in high temperatures of up to 1200°C and can handle currents of up to 60,000 A. With more than 400 sites around the world and more than 11 years of experience in metallurgy, we offer full electrode automation systems that include lifting mechanisms, clamping devices, and servo control systems to make sure that the arc forms steadily and that your industrial processes use the least amount of energy possible.
What Makes Our Electrode Control Technology Superior?
Through smart robotics, our electrode placement technology changes how your furnace works. The powerful PLC servo control system reacts in milliseconds to keep the arc length at the right level. This accuracy keeps the electrodes from breaking during scrap cave-ins and increases the efficiency of energy transfer.
Our built-in water cooling system will help you because it keeps parts from getting damaged by heat. The effective clamping device makes sure that the electrical contact is stable and that there is little resistance loss. This design lowers your operating costs and makes your tools last longer.
Several safety features are built into our product, such as overload protection, anti-collision sensors, and protection against burning. These safeguards keep your investment safe while keeping production steady.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | Up to 1,200°C (Furnace Environment) |
| Electrode Diameter Range | 150 ~ 1,200 mm (Customizable) |
| Lifting Stroke | 0 ~ 2,000 mm (Adjustable) |
| Lifting Speed | 0.1 ~ 5 mm/s (Variable) |
| Control System | PLC + Servo Control |
| Maximum Current Capacity | Up to 60,000 A |
| Position Accuracy | ≤ ±1 mm |
| Response Time | <20 milliseconds |
Key System Components
Electrode Management Assembly
Our electrode arms hold heavy graphite columns securely and allow for precise movement up and down. The hydraulic lifting system works smoothly and has stroke lengths that can be changed up to 2000 mm.
Advanced Clamping Technology
With its good electrical contact, the clamping device makes sure that the electrodes are securely held in place. The low contact resistance design keeps the current flowing steadily during the heating process and reduces the amount of power that is lost.
Intelligent Control Interface
The built-in control system constantly checks the furnace's conditions. Real-time changes keep the arc length at the right level and keep the electrodes from getting damaged by hits or high temperatures.
Applications Across Industries

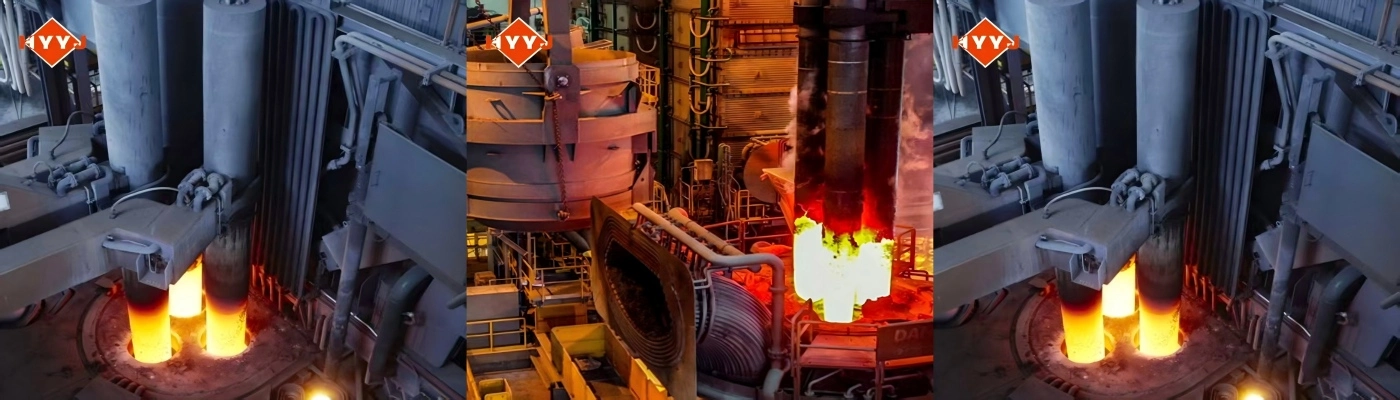

Electric Arc Furnace Operations
Your steelmaking processes benefit from our system's ability to handle extreme thermal cycling and mechanical stress. The electrode positioning maintains consistent melting rates while reducing energy consumption per ton of steel produced.
Ladle Refining Applications
For secondary metallurgy operations, our Furnace Electrode System provides precise temperature control without excessive carbon pickup. This precision enables accurate steel chemistry adjustments during the refining process.
Submerged Arc Furnace Solutions
Ferroalloy production requires continuous operation in aggressive environments. Our system resists chemical corrosion from reactive slags while maintaining structural integrity during extended production campaigns.
Why Choose Shaanxi Heyuan?
Proven Track Record
Since 2003, we've delivered over 400 furnace installations across 15 countries. Our systems operate successfully in facilities from South Korea to Paraguay, demonstrating reliable performance across diverse operating conditions.
Comprehensive Support
You receive complete project support from initial design through commissioning. Our team of nearly 400 professionals includes 11 senior experts who ensure rapid response to your technical requirements.
Customization Capabilities
Every system is tailored to your specific furnace requirements. We configure electrode diameter ranges, lifting parameters, and control settings to match your production needs and operational preferences.
Fast Delivery and Installation
Standard electrode system configurations ship within 15-20 days of order confirmation. Custom engineered solutions require 30-45 days for complete manufacturing and testing. Our installation teams provide on-site commissioning and operator training to ensure smooth startup.
Quality and Safety Standards
Our manufacturing processes meet international quality certifications with comprehensive three-system verification. Each system undergoes rigorous testing before shipment to ensure reliable operation in your facility.
The integrated safety systems protect against overload conditions, component overheating, and collision damage. These features minimize downtime while protecting your personnel and equipment investments.
Contact Us
Ready to upgrade your furnace electrode operations with the Furnace Electrode System? Contact us at sxhyyj606@163.com for customized solutions that improve your productivity and efficiency.
