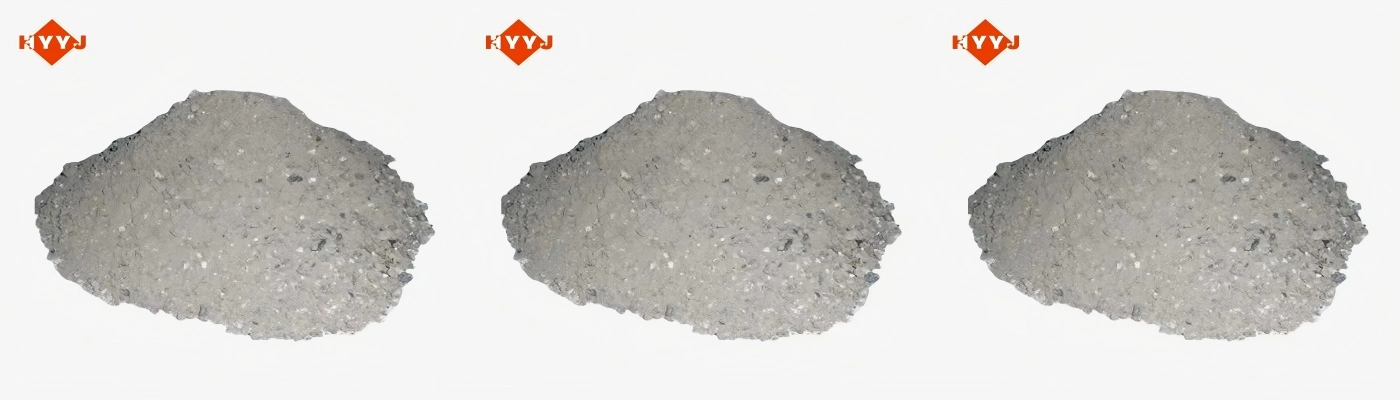

Ramming Materials
High-Performance Ramming Materials for Industrial Furnace Applications
Ramming Materials from Shaanxi Heyuan provide enterprise-level performance for important metallurgical uses. They can withstand temperatures up to 1800°C and have a higher visible density of 2.6 g/cm³ after ramming. Our high-tech monolithic refractory solutions have a compressive strength of 35 MPa or more after being baked. They are backed by over 11 years of mechanical experience and a 400-person professional team that includes 11 top experts. More than 400 successful sites around the world have shown that these high-density materials work well in buried arc furnaces, EAFs, and ladle linings.
What Makes Our Ramming Materials Different?
Our products are better than other choices when you're looking for solid furnace lining solutions. We used advanced particle size distribution theory to design these goods so that they have the most packing density and the fewest holes.
The way your heater works requires constant performance in all kinds of weather. Our goods make a thick, solid refractory layer that is better at stopping hot metal from getting through than regular brick linings. The monolithic structure gets rid of the parts that are most likely to break, so the service life is longer and the cost of upkeep is lower.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | Up to 1800°C |
| Apparent Density (After Ramming) | ≥ 2.6 g/cm³ |
| Compressive Strength (After Baking) | ≥ 35 MPa |
| Thermal Shock Stability (1100°C Water Quenching) | ≥ 12 Times |
| Loss on Ignition (1050°C) | ≤ 3% |
| Particle Size | 0-10 mm (Graded) |
Key Applications for Maximum Performance
For submerged arc furnaces, our materials protect the floor and sides of your furnace very well. The high-density structure keeps liquid metal out and keeps the structure strong even when electromagnetic forces move it.
Electric Arc Furnace Linings: Areas that get a lot of wear and tear, like tap holes and furnace bottoms, will have better weathering resistance. The materials can handle the mechanical force of scrap charge and the chemical attack from slags that are very active.
Ladle and Tundish Construction: This type of construction works great in impact zones and slag lines, where there is a lot of chemical damage and turbulence. Your tools will last a lot longer because of the thick barrier.
Furnace Bottom Ramming: This method makes a strong base that can withstand changes in temperature and mechanical stress without breaking or cracking.
Why Choose Our Ramming Solutions?
Superior Workability: You'll find our materials easy to ram and compact, ensuring consistent installation quality every time. The optimized particle gradation prevents segregation during handling and placement.
Exceptional Density: After proper ramming and baking, you get a virtually pore-free structure that stops molten metal and slag penetration cold. This dense matrix is key to long-term furnace reliability.
Outstanding Thermal Performance: Your operations will benefit from excellent thermal shock stability. The materials adapt to rapid temperature changes without cracking, maintaining protective integrity throughout heating cycles.
Chemical Resistance: We've formulated these Ramming Materials to resist aggressive slag attack and molten metal erosion. The high-purity base materials prevent formation of low-melting phases that could compromise performance.
Professional Service and Support
You get more than just materials when you choose Shaanxi Heyuan. Our technical team provides comprehensive installation guidance to ensure optimal ramming density and proper baking procedures. We customize chemical composition and particle size distribution to match your specific operating conditions.
Flexible Packaging Options: Available in convenient 25kg bags or efficient 1000kg bulk bags to suit your project requirements and handling capabilities.
Rapid Delivery: Standard configurations ship within 15-20 days. Custom formulations require 30-45 days from order confirmation, ensuring you get exactly what your application demands.
Technical Expertise: Our 11 senior experts and nearly 400 professionals provide ongoing support throughout your project lifecycle. We've successfully delivered solutions to customers across South Korea, Kazakhstan, Iran, Vietnam, Thailand, and many other countries.
Quality You Can Trust
Every batch of our products undergoes rigorous quality control testing. We verify particle size distribution, chemical composition, and sintering characteristics to ensure consistent performance. Our three-system certifications and metallurgical design qualifications guarantee you're getting professional-grade materials.
The materials maintain excellent volume stability during heating, preventing excessive shrinkage that could compromise your lining integrity. You'll also appreciate the superior repairability compared to precast shapes, making maintenance more efficient and cost-effective.
Contact Us
Ready to upgrade your furnace performance with Ramming Materials? Contact our technical team at sxhyyj606@163.com for customized solutions and expert guidance.
