Why Choose a High-Efficiency Ferro Silicon Aluminum Furnace?

If you manage alloy production, you already know that equipment selection directly affects your output quality, energy costs, and long-term profitability. A ferro silicon aluminum furnace is a specialized submerged arc furnace designed to smelt silicon-aluminum-iron alloys through carbothermic reduction of silica, alumina, and iron sources. Compared with conventional alternatives, high-efficiency models operate at 1700°C–2000°C, deliver tighter alloy composition control, and consume less energy per ton produced — making them the preferred choice for steel plants, ferroalloy smelters, and foundry operations worldwide.

Understanding Ferro Silicon Aluminum Furnaces and Their Efficiency

What Is a Ferro Silicon Aluminum Furnace?

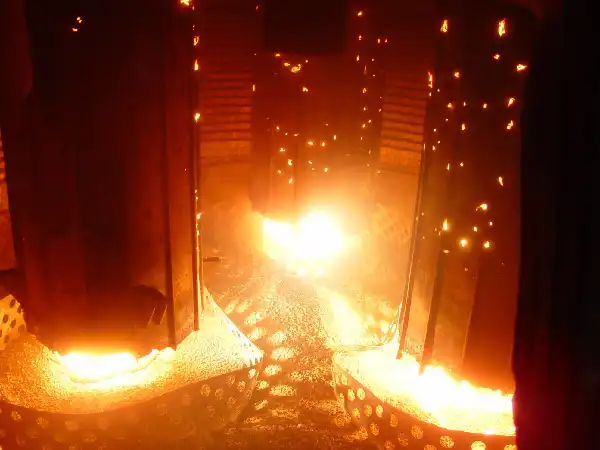

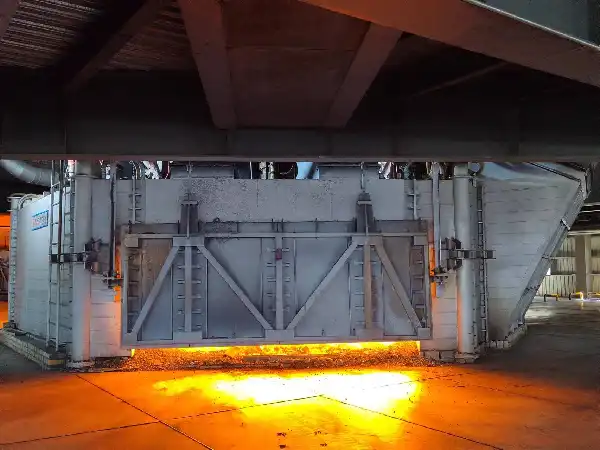

A ferro silicon aluminum furnace is a type of submerged arc furnace (SAF). It turns bauxite, silica quartz, and steel chips into FeSiAl compound deoxidizers by using carbothermic processes at high temperatures. Unlike a normal ferrosilicon furnace, this equipment has to deal with higher reduction temperatures and the higher viscosity of high-alumina slag systems. This is a technical problem that separates entry-level equipment from units that really work well.

How Modern High-Efficiency Models Differ

Older SAF designs had trouble with temperature fields that weren't consistent and electrodes that used a lot of power. Modern ferro silicon aluminum furnaces have low-inductance short-net electrical systems that keep voltage drops to a minimum and send as much power as possible to the arc zone. As a result, the reduction environment is more stable, less energy is used per ton, and electrodes break down less often during production runs.

Furnace Types and Industrial Applications

Self-baking (Söderberg) and prebaked carbon electrodes are the two main types of electrodes used in FeSiAl furnaces. Because electrodes are cheaper in self-baking devices, they are better for large-scale production that goes on all the time. Most steel complexes have power capacities between 10 MVA and 60 MVA, depending on the size of the operation. The right arrangement depends on the metal grade you want to make, the amount of material you can get, and how much you want to make each year.

Key Benefits of Choosing a High-Efficiency Ferro Silicon Aluminum Furnace

Buying a high-performance ferro silicon aluminum furnace changes more than just the specs of the equipment; it also changes the costs of every step of the production process. Here are the main benefits that this type of equipment offers:

• Energy savings: A well-designed ferro silicon aluminum furnace achieves energy consumption at or below 8,000 kWh per ton of alloy produced. This figure compares favorably against older furnace designs that routinely exceed 11,000–13,000 kWh/MT, according to industry benchmarking data.
• Alloy composition accuracy: Three-phase electrode heating creates a balanced, uniform temperature field across the reduction zone. Heyuanxin's ferro silicon aluminum furnace maintains alloy composition deviation at ≤±0.5%, which meets demanding steel grade specifications consistently.
• Extended operational uptime: Annual operating time exceeding 8,000 hours is achievable with proper electrode regulation and refractory lining management, reducing costly unplanned shutdowns.
• Environmental compliance: An integrated baghouse dust collection system handles sub-micron particulates and high-temperature off-gases, achieving emission concentrations below 20 mg/Nm³ — meeting U.S. and international environmental protection standards.

These benefits directly fix the problems with production that purchasing teams at steel mills and ferroalloy makers face every day. Cutting down on downtime and energy use per ton can make a big difference in a facility's annual costs.

When the FeSiAl alloys made in this furnace are added to liquid steel in a ladle, they lower the oxygen activity in the steel more effectively than adding pure aluminum. The aluminosilicate inclusions that form float out of the melt more easily, making the steel cleaner overall and preventing nozzle clogging in continuous casting. This is a practical benefit that has been reported by all integrated steelmaking plants.

Comparing Ferro Silicon Aluminum Furnaces with Other Furnace Types

FeSiAl Furnace vs. Electric Arc Furnace

An electric arc furnace (EAF) is mostly used to melt and refine scrap steel, not to reduce alloys. A ferro silicon aluminum furnace works with electrodes that are buried in the load charge. The arc resistance and electrical resistance of the charge mix create heat. This setup works much better for lowering both silica and alumina at the same time. EAFs are not a direct replacement for making large amounts of FeSiAl alloy.

Price-Performance Ratio

Based on data from 2024 purchases, mid-range ferro silicon aluminum furnaces with power levels of 25–33 MVA offer the best price-performance ratio for companies that want to make between 15,000 and 40,000 MT of aluminum each year. Larger units (45–60 MVA) have lower working costs per ton, but they need more money up front and take longer to get up and running.

Selecting the Right Configuration for Your Operation

The best furnace specification depends on your alloy target ratio (Si:Al:Fe), the composition of the raw materials you have access to, and your budget. A ferro silicon aluminum furnace supplier with in-house engineering can model your specific burden chemistry and suggest the right transformer tap voltages, electrode diameter, and lining grade. This will keep you from having to pay a lot of money to fix equipment that doesn't work with your process.

Maintenance, Safety, and Operational Tips for Optimal Performance

Routine Inspection Protocols

A ferro silicon aluminum furnace should have its electrode contact clamp pressure checked once a week, its refractory thickness measured once a month using thermal imaging, and its hydraulic electrode lifting cylinders checked every three months while they are under operating pressure. It is possible for linings to last at least 1.5 years if these recommendations are always followed.

Safety Precautions for Personnel and Facilities

For operations above 1700°C, there must be strict access controls, full PPE compliance, and automated emergency shutdown logic that has been tested and proven to work through factory acceptance testing (FAT). One of the most common safety problems in FeSiAl furnace operations is electrode breaking, which can be caused by thermal shock during hard runs or the wrong Söderberg paste recipe. This risk is much lower if the paste standard is right for the conditions of aluminum reduction.

Managing Emissions and Environmental Impact

The high-alumina waste gas that comes out of a ferro-silicon aluminum burner has a lot of silica smoke and alumina dust in it. The standard solution is a pulse-jet baghouse dust collector that can handle high gas temperatures all the time. Adding lime to the charge mix helps control the viscosity of the slag and lowers the risk of tap-hole blockage. This operational practice also lowers energy use indirectly by keeping the furnace at the right temperature.

​​​​​​​

Procuring High-Efficiency Ferro Silicon Aluminum Furnaces: What You Need to Know

Evaluating Supplier Credibility

A reliable ferro silicon aluminum furnace maker has certificates that can be checked. At the very least, they should have ISO quality management, environmental management, and occupational health management system certifications.

Lead Times, Customization, and Pricing

Patents in electrode regulation, lining design, or short-net systems show real engineering depth, not just the ability to put together equipment.

After-Sales Support and Long-Term Partnerships

Standard ferro silicon aluminum furnace types with set layouts usually ship in 15 to 20 days. It takes 30 to 45 days to make custom-engineered units that are based on a certain alloy ratio or a chamber geometry that isn't standard. The procurement teams should include these dates in the planning of the EPC project so that there are no delays during the commissioning phases of the plant.

Conclusion

A high-efficiency ferro silicon aluminum furnace is more than just a piece of machinery; it's an investment in long-term production. With the right furnace, you can lower your per-ton energy costs, better control the alloy composition, and make sure your facility meets environmental standards. It can also keep up with the continuous production schedules that steel mills and ferroalloy plants need. The most important thing you will need to do when buying things for your metal production line is to find a seller with proven technical knowledge, valid certifications, and reliable after-sales support.

FAQ

What temperature range does a ferro silicon aluminum furnace operate at?

Operating temperatures are usually between 1,700°C and 2,000°C, but this depends on the target alloy grade and the make-up of the load. For the carbothermic reduction of alumina to happen, these temperatures are needed. This process needs a lot more heat energy than normal ferrosilicon production.

How does a ferro silicon aluminum furnace differ from an electric arc furnace?

Open arc energy is used by an EAF to cook and polish scrap steel. A ferro silicon aluminum furnace has electrodes that are immersed in a dense mixture of silica, bauxite, and reductants. This makes FeSiAl alloys through constant carbothermic reduction, which is a very different way of doing things and a very different kind of equipment.

What are the key safety measures required?

For safe continuous operation, you need at least an automated electrode slipping logic system, emergency shutdown interlocks that have been checked by FAT, full refractory lining inspection protocols, and a baghouse dust collection system that is rated correctly.

Can the furnace be adapted to produce other ferroalloys?

Yes. In a ferro silicon aluminum furnace, the transformer and lining architecture can usually handle making ferrosilicon or calcium silicon as long as the voltage taps and secondary current parameters are adjusted to match the resistance characteristics of the new load.

What emission standards does the off-gas system meet?

It is possible to get emission levels below 20 mg/Nm³ with a high-capacity pulse-jet baghouse. This meets both Chinese national standards and U.S. EPA industry emission rules for particulate matter.

Get Your Custom Ferro Silicon Aluminum Furnace Quote from Shaanxi Heyuan

Shaanxi Heyuan has shipped more than 400 ferro silicon aluminum furnace units around the world since 2008. They have more than ten application model patents and are fully ISO certified. As a reliable ferro silicon aluminum furnace manufacturer, we offer full solutions from design to commissioning. Depending on your needs, we can deliver in 15 to 45 days. To get a personalized quote right away, email our engineering team at sxhyyj606@163.com.
