What Is an Electron Beam Melting Furnace Used For?

An electron beam melting furnace is a vacuum-based metallurgical system that uses a focused, high-energy electron beam to melt, refine, and purify reactive and refractory metals. Operating at 2000°C – 2800°C in a vacuum of ≤1×10⁻³ Pa, this kind of furnace eliminates dissolved gases, volatile impurities, and non-metallic inclusions from metal feedstock. This results in a high-purity ingot that is suited for aerospace, defence, electronics, and medical applications. Industries that can't afford material faults use electron beam melting furnace technology as their major refining process.

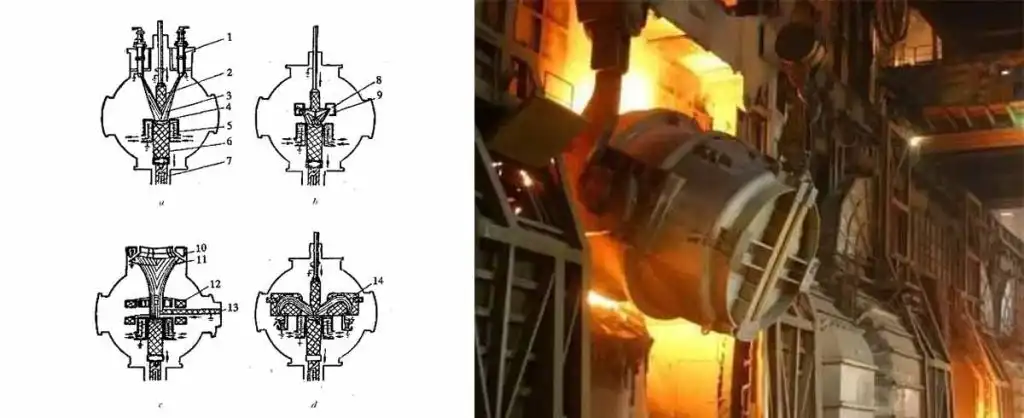

Understanding Electron Beam Melting Furnace Technology

You need to know how the equipment produces and regulates energy to appreciate what it accomplishes. In an electron beam melting furnace, electrons are accelerated from a heated cathode by a high voltage field. The beam is then focused by magnetic lenses and directed at the metal feedstock in a water-cooled copper crucible.

The Electron Gun and Beam Control

The electron gun is the heart of the system. It creates a beam with power densities up to 100 kW/cm², which is well above what induction or arc-based systems can accomplish. With such a concentration of energy, the operators are able to melt high-melting-point metals, such as tungsten (3422 °C), impossible for any ordinary furnace.

The Role of the Vacuum Chamber

The vacuum chamber is not merely a vessel to hold the process but is an active element of the refining process. At pressures ≤1×10⁻³ Pa, the melt zone is largely devoid of oxygen and nitrogen. This avoids oxidation of reactive metals such as titanium and niobium and makes feasible thermodynamic evaporation of volatile impurities like lead and bismuth out of the melt, which is impossible at atmospheric pressure.

Key Materials Processed

The electron beam melting furnace handles materials that other furnace types cannot. Common feedstocks include:

• Titanium alloys (e.g., Ti-6Al-4V) for aerospace rotating components
• Tantalum and niobium for electronic capacitors and sputtering targets
• Tungsten and molybdenum for high-temperature industrial applications
• Cobalt-chrome and nickel superalloys for turbine and medical implant use

Each of these materials requires the precise temperature control and contamination-free environment that only a vacuum electron beam system can deliver consistently.

Primary Applications of Electron Beam Melting Furnaces in Industry

The electron beam melting furnace serves industries where material failure is not an option. Its ability to produce zero-defect, high-purity ingots makes it the preferred refining route across several critical sectors.

Aerospace and Defense Manufacturing

Aerospace OEMs such as GE and Rolls-Royce mandate Electron Beam Cold Hearth Melting (EBCHM) for premium-grade titanium alloys. The furnace removes tungsten carbide tool bits (high-density inclusions) and dissolves hard alpha defects from Ti-6Al-4V. These defects, if left in the ingot, would cause fatigue failure in jet engine disks and fan blades. The electron beam melting furnace is the only proven technology for meeting these strict OEM specifications.

Electronics and High-Purity Materials

Tantalum and niobium capacitors require metal purity at the 5N–6N level (99.999%–99.9999%). The high-vacuum environment of the electron beam melting furnace enables selective evaporation of sub-oxides and metallic impurities from crude feedstock. This makes it the standard production method for sputtering targets used in semiconductor deposition and for niobium used in superconducting radio frequency (SRF) cavities in particle accelerators.

Medical Device and Implant Production

Biocompatible alloys for orthopedic and dental implants must meet strict composition tolerances. The controlled vacuum environment of the electron beam melting furnace eliminates harmful inclusions while preserving the precise chemical balance required by regulatory bodies. The directional solidification capability of the furnace also allows engineers to control grain structure, which directly improves the mechanical fatigue resistance of implant components.

Advantages of Electron Beam Melting Furnaces

When procurement teams look at this technology, they always find a set of operational and material quality advantages that set it apart from other ways of melting. Here are the main benefits of this type of equipment:

• Independent energy source: Unlike Vacuum Arc Remelting (VAR), the electron gun operates independently of the feedstock. Operators can hold metal in the liquid state as long as refining requires, without adding more material. This extended residence time removes inclusions that VAR would miss.
• Flexible feedstock acceptance: The furnace processes sponge, chips, turnings, and massive scrap directly. This is a significant economic advantage for titanium and superalloy recycling, where VAR requires a pre-compacted solid electrode.
• Zero crucible contamination: Water-cooled copper hearths mean the melt never contacts a ceramic refractory. This guarantees that the ingot chemistry reflects only the feedstock, with no crucible material dissolved into the product.
• Directional solidification control: Operators can program the beam scanning pattern to control how the ingot solidifies. This produces a defined grain structure that improves tensile strength and fatigue life in the final product.

These benefits directly meet the needs for quality and productivity in the medical, electronics, and aerospace industries. When plants switch from arc-based refining to electron beam technology, the quality of the ingot surface and the rate of rejecting inclusions usually get better.

Comparing Electron Beam Melting Furnace with Other Melting Techniques

When buying, teams know where the electron beam melting furnace works better than other options, they can make better decisions about where to spend money.

EBMF vs. Vacuum Arc Remelting (VAR)

The power input is directly linked to the melt rate in VAR. Because the anode wears out, the operator can't keep a liquid pool open for a long time to refine it. The electron beam melting furnace removes the supply of energy from the feeding of materials. This gives you a lot more control over the purification time and shape of the melt pool.

EBMF vs. Induction Melting

For steel and iron, induction furnaces work well, but they can't get hot enough for refractory metals. Also, they need ceramic crucibles, which can be dirty for metals that react, like titanium. Both of these problems are taken care of by the vacuum electron beam system.

EBMF vs. Plasma Arc Melting

Using an inert gas shield, plasma arc melting works at room temperature and pressure. It can deal with some unstable metals, but it can't reach the deep vacuum needed to get rid of high-vapor-pressure impurities. For 5N-grade purity goals, the electron beam melting oven needs to reach vacuum levels that are many orders of magnitude lower.

Procurement Considerations for Electron Beam Melting Furnaces

Buying an electron beam melting furnace is a long-term capital commitment. Procurement teams should evaluate suppliers on technical capability, not just unit price.

Supplier Qualification and Certifications

Look for manufacturers with ISO quality management certification, documented installation records, and active after-sales service programs. A supplier that holds utility model patents specific to furnace design demonstrates ongoing R&D investment. Verify that the supplier can provide component-level support for the cathode, electron gun optics, and vacuum pumping systems over the equipment's service life.

Key Technical Parameters to Verify

Before signing a purchase agreement, confirm the following specifications with the supplier:

• Operating temperature range (minimum 2000°C–2800°C for industrial-grade units)
• Electron beam power output (30kW–300kW covers most production scenarios)
• Vacuum leak-up rate (verified by helium mass spectrometry, target < 0.5 Pa·L/s)
• Beam pattern calibration records to confirm uniform energy distribution

Installation and Commissioning Support

Even a well-built furnace underperforms without proper installation. Insist on a commissioning team with direct experience on the specific model being purchased. Request operator training as part of the contract, and confirm that the supplier maintains a stock of critical spare parts—particularly cathode filaments, which have a finite service life due to ion bombardment.

Conclusion

In the processing of advanced metals, the electron beam melting furnace plays a unique and significant role. No other single melting technology can handle the range of materials, purity levels, and defect tolerances that this one can. Titanium used in aircraft and tantalum used in electronics are both real uses that are well known and growing. It's easy for procurement professionals to make a choice when looking at vacuum metallurgical equipment: the equipment's temperature range, vacuum integrity, feedstock flexibility, and the level of support from suppliers. If the right manufacturer is chosen, the electron beam melting furnace does all four.

FAQ

What metals can an electron beam melting furnace process?

Titanium, tantalum, niobium, tungsten, molybdenum, cobalt-chrome alloys, and nickel superalloys are all worked on in the furnace. It works especially well with reactive and refractory metals that easily rust or have melting points higher than what an induction furnace can reach.

How often does the cathode need replacement?

During use, evaporation and ion bombardment wear down the cathode filaments. How often you replace it depends on how many hours it has been used and how strong the beam is. It is common for factories to check the cathode every few hundred hours and change it as part of regular maintenance.

Can the furnace process scrap and turnings directly?

Yes. The electron beam melting furnace can take free chips, turnings, sponge, and scrap right into the hearth, while VAR needs an electrode that has already been pressed down. This makes it possible for projects to recycle titanium and superalloy to be cost-effective.

How does energy consumption compare to laser melting systems?

There is more power used by industrial electron beam melting furnace units than by laser-based powder bed systems, but they can handle much bigger batches. The energy cost per kilogram of polished metal is comparable to other metals, especially when it comes to making refractory metal ingots.

What vacuum level is required for effective titanium refining?

It is normal for titanium alloy processing to have a vacuum level of ≤1×10⁻³ Pa. This level of pressure stops oxidation and makes it easy for hydrogen and nitrogen that are dissolved in the melt pool to escape.

Partner with Shaanxi Heyuan for Your Next Electron Beam Melting Furnace

Shaanxi Heyuan has built and installed more than 400 heating systems around the world since 2008. They have more than ten utility model patents and are certified by ISO for quality management. Our electron beam melting furnace supplier team can design a furnace just for you, help you improve the smelting process, install the furnace professionally on-site, and keep you stocked on spare parts for a long time. Power beam designs ranging from 30kW to 300kW can meet the needs of both small-scale lab work and full-scale production. To talk about the details of your vacuum metallurgy project, please email our engineering team at sxhyyj606@163.com.

References

1. Schiller, S., Heisig, U., & Panzer, S. Electron Beam Technology. John Wiley & Sons, 1982.

2. Donachie, M. J., & Donachie, S. J. Superalloys: A Technical Guide. ASM International, 2002.

3. Froes, F. H. (Ed.). Titanium: Physical Metallurgy, Processing, and Applications. ASM International, 2015.

4. Mitchell, A. "Electron beam melting and refining of reactive and refractory metals." Vacuum, Vol. 48, No. 2, Elsevier, 1997.

5. Kaufman, J. G. Properties of Aluminum Alloys: Fatigue Data and the Effects of Temperature, Product Form, and Processing. ASM International, 2008.

6. Bewlay, B. P., & Gigliotti, M. F. X. "Cold hearth processing of titanium alloys for aerospace rotating components." Journal of Materials Engineering and Performance, ASM International, 2003.
