Positive Pressure Dust Collector: Maintenance Tips for Longevity

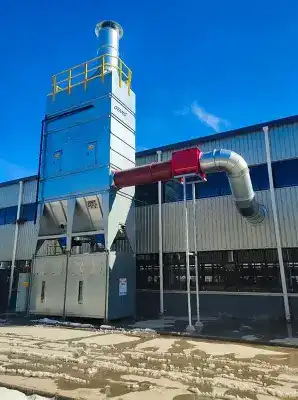

Strong filter systems are needed in industrial plants and steel mills to keep the air clean while dealing with high concentrations of electric furnace dust. A Positive Pressure Dust Collector works by putting the fan in front of the filter media and applying pressure to it. This forces air that is full of dust through the filtration system. When dust levels get very high in electric arc furnaces, mining processes, and other metalworking tasks, this design works especially well to collect very small particles. This setup is small and can catch particles more than 99.9% of the time. However, it is important to know the right way to maintain it to counteract the natural wear and tear on fans and extend the life of equipment in harsh industrial settings.

​

Understanding Positive Pressure Dust Collectors

Working Principles and Design Architecture

The main difference between devices with positive and negative pressure is where the fans are placed and how the air flows. When there is a positive pressure dust collector operation, dirty air enters the fan body before it reaches the filter media. This makes the internal pressure higher than the outside pressure. The push-through design lets air that is full of dust go more directly through PTFE membrane filters, which can catch particles as small as 0.3 microns. The structural benefit becomes clear when the system is in use: lighter-gauge housing materials are enough because positive internal pressure gets rid of the risks of collapse that come with vacuum systems.

Our engineering team at Heyuanxin has made this design better so that it can be used in metallurgy processes. The system has fan blades that are angled backwards and are made of abrasion-resistant metals to handle the roughness of electric furnace dust. This smart choice of materials handles the main trade-off in Positive Pressure Dust Collector designs, which is that the fan is directly exposed to particles before they are filtered.

Key Design Features Enhancing Performance

The success of filtration depends on a number of technical factors that procurement workers should carefully look at. The air-to-cloth ratio is usually between 3:1 and 6:1, which is a good balance between how well the dust cake is released and how well it is captured. Pressure drop readings between 1 and 6 inches of water gauge show how loaded the filter is, giving maintenance teams useful information for planning when to clean the filters.

Modern positive pressure dust collectors have PLC control systems and touchscreen screens that let you see the difference in pressure, airflow rates between 1,000 and 100,000 CFM, and filter saturation levels in real time. With these smart tracking features, maintenance goes from being reactive, fixing problems, to being proactive, which greatly reduces unexpected downtime. The flexible design we use at our factory in Shaanxi lets us install systems in a way that can be expanded to meet growing production needs without having to rebuild the whole system.

Operational Advantages for Metallurgical Applications

This method has benefits that are especially helpful for metallurgical plants and mining businesses. The small structural footprint means that less room is needed for installation, which is an important thing to think about when upgrading current electric arc furnace or ladle furnace facilities. The Positive Pressure Dust Collector design reduces frictional losses in ductwork movement, which makes it more energy efficient. However, this must be weighed against the fact that it requires more upkeep for the fans.

During installation, one useful benefit becomes clear: routing the piping is made easier. Since the system pushes air instead of pulling it, it is possible to have longer horizontal duct runs without losing a lot of pressure. This adaptability is very helpful for adding dust collection to complicated metallurgical plant plans where limited room and equipment placement make it hard to find the best route.

Common Maintenance Challenges and How to Address Them

Identifying Performance Degradation Indicators

Filter clogging is the most common upkeep issue in places with a lot of dust, like when an electric heater is working. As dust cake builds up, the differential pressure goes above the best settings for operation. Keeping an eye on Magnehelic or Photohelic scales gives you an early warning when numbers rise above 6 inches w.g., which usually means that the filter is about to become saturated and needs to be fixed.

We suggest taking standard pressure readings during the initial setup and then keeping track of changes every day. Sudden jumps mean that there is too much dust or a problem with the cleaning system, while slow rises mean that cake is building up normally. Setting up automatic alerts for when pressure limits are crossed lets repair teams plan their actions before they stop production.

Fan Wear Management Strategies

Because positive pressure dust collectors are naturally weak—fans are exposed to rough dust—they need proactive cleaning procedures. Metallurgical dust from steel mills and mining plants has hard particles that wear down fan blades, making the machine unbalanced and vibrating. Using ISO 1940-1 Grade G2.5 standards for vibration measurement every three months helps find bearing wear and blade corrosion before they become catastrophic.

The choice of material is very important for durability. Service times are greatly increased when AR400 steel or similar abrasion-resistant metals are used to make the impeller. When evaluating suppliers, make sure that they provide recorded hardness records and balancing certificates. Even though protected components cost more up front, their long operating life makes the total cost of ownership much lower.

Addressing Pressure Fluctuations and Seal Integrity

In negative pressure systems, leaks bring in outside air, but when seals fail in Positive Pressure Dust Collector systems, they let out escaping dust, which is mixed with air in the workplace. This raises worries about both the quality of the air and the ability to follow OSHA and EPA rules. These problems can be avoided by using smoke or dye-penetrant methods to test for leaks thoroughly during installation and once a year for maintenance.

Most of the time, seal failure happens at the surfaces of housing joints, filter access doors, and rotary valves. Replacement plans should be in line with how rough the dust is and what the working temperature is. In electric arc furnaces where temperatures change a lot, silicone or Viton gaskets are better at withstanding high temperatures than regular rubber materials. In fact, we've found that they extend the seal's life by 40 to 60 per cent in field tests we've done at several metallurgical sites.

​Essential Maintenance Tips for Prolonging Equipment Life

Establishing Routine Inspection Protocols

Structured repair plans are the key to making sure that equipment lasts as long as possible. Every day, you should look at the outside of the housing, the gauge readings, the amount of dust in the hopper, and any strange noises or vibrations. As part of the weekly inspections, the cleaning system's operation is checked, including pulse valves, reverse air mechanisms, or shaker assemblies, based on their design. For monthly deep inspections, you have to get into the filter sections to check the state of the media, the mounting gaskets, and the structure's strength.

During these checks, documentation is very helpful. By keeping track of changes in differential pressure, the number of cleaning cycles, and the amount of material that comes out of the hopper, you can see how performance has been declining over time. This analytical method changes maintenance from just doing tasks to strategic asset management. It helps mining plant workers accurately predict when to replace parts and plan their budgets.

Filter Media Selection and Management

Choosing the right filter media for the type of dust has a huge effect on how often upkeep needs to be done and how long the system lasts. Positive pressure dust collectors using PTFE membrane filters work great in metallurgy settings because their smooth surface keeps dust from getting into the fibre structures. This makes cleaning easier and increases the filters' useful life. The chemical protection of the barrier also works with corrosive compounds found in smelting fumes.

To keep filters from breaking down too soon, cleaning processes need to be done carefully. When there is too much pulse pressure or backward air movement, it hurts the media fibres and creates weak spots that turn into tears. Setting cleaning systems to the lowest level of effective strength protects the purity of the filters. We've noticed that PTFE filters used in electric furnaces usually last 18 to 24 months when they are properly kept but only 8 to 12 months when they are not properly managed and dealing with the same amount of dust.

Critical Component Care and Lubrication

Motors, fans, and rotary discharge valves all have bearing systems that need to be oiled on a regular basis to keep them from seizing up or wearing out too quickly. For high-temperature uses that are popular in metallurgical settings, manufacturer specs usually say to use synthetic lubricants. Setting up oil routes with colour-coded fittings and written times of application stops services from being missed, which can cause expensive failures.

In addition to lubrication, temperature control also makes parts last longer. Electric motor casings should never get dusty, because that insulates the windings and raises the working temperature. In dusty places, cooling air entry screens need to be cleaned once a month. Using infrared scanning to check the temperature during operation can spot problems before they get too bad. For example, a 15-20°C temperature rise above normal can happen two to four weeks before a bearing fails, giving you time to fix the problem and avoid unplanned downtime.

Leveraging Sensor Technology for Predictive Maintenance

Modern monitoring systems that use the Internet of Things (IoT) are a big change from planned repair to condition-based maintenance. Real-time data streams are made by installing shaking monitors, temperature probes, and constant differential pressure sensors. When these monitors are connected to PLC control systems, they can automatically do things like change how often they clean when the amount of dust changes or let workers know when mechanical problems start to happen.

Heyuanxin has built these smart tracking features into our Positive Pressure Dust Collector designs so that they can be used in metallurgy processes. Plant workers can keep an eye on multiple collection systems in different sites from a central control room thanks to remote connectivity. Trend analysis programs find small problems with performance that can't be seen by hand, and they can often tell you 30 to 90 days ahead of time that you need to do something. This technology edge lowers maintenance costs and increases system uptime at the same time. This is a great benefit for metallurgical plant managers who have to balance the need for production with the dependability of their equipment.

Positive-Pressure Dust Collector vs Other Systems: Maintenance Perspectives

Comparative Maintenance Complexity Analysis

There are clear trade-offs when you look at the upkeep needs of different dust collection designs. Negative pressure baghouse systems keep fans from coming into contact with dust, which greatly increases the service life of the fans. However, the fact that they need stronger structural reinforcement makes placement more difficult and raises the cost of the base. When working in negative pressure systems, replacing filters is usually easier because the lower pressure makes the work safer for the repair staff.

In many setups, Positive Pressure Dust Collector designs make it easier to get to the filter because the housing pieces can be lighter and easier to take off. The lower structure mass also makes it easier to move or temporarily set up installations, which is useful when a plant grows or equipment is moved. Repair teams say that regular inspection jobs usually take 15-20% less time in Positive Pressure Dust Collector systems because they are easier to get to. However, this benefit must be weighed against the fact that more fan repair needs to be done.

Total Cost of Ownership Considerations

The financial analysis looks at more than just the original cash costs. It also looks at the ongoing costs of running and maintaining the business. Positive Pressure Dust Collectors usually have 10-15% lower start-up costs because they are easier to build. Filters need to be replaced at different times depending on the application. In dusty environments that aren't too rough, both designs produce media that lasts about the same amount of time, but in rough metalworking environments, the upstream fan position speeds up system wear.

Patterns of energy use are slightly different. In some ductwork designs, Positive Pressure Dust Collector setups can work at slightly lower static pressures, which cuts the fan horsepower needs by 5 to 10%. This efficiency saves a lot of money on power costs over long periods of time in continuous-run uses like electric arc furnace support. However, these savings might be partly cancelled out by the fact that fan parts need to be replaced more often in places with a lot of dust.

Sustainability and Energy Efficiency Impact

Environmental compliance is becoming a bigger factor in choosing tools. It can be hard to meet strict indoor air quality standards when positive pressure dust collectors leak fugitive fumes when the seals fail. When working with toxic chemicals in metallurgy, negative pressure designs are often chosen even though they are more expensive. This is because control certainty is more important than cost.

Dust collector systems that use positive pressure offer strong environmental benefits in places like mines, building sites, or outdoor settings where worries about air quality aren't as important. Because they can handle big amounts of air easily, they use less energy per cubic foot. With variable frequency drives that change the fan speed based on how much dust is in the air, energy use drops by an extra 20 to 30 per cent compared to running at a steady speed. When purchasing something, people who are thinking about long-term sustainability goals should ask for full energy modelling during the specification phase so that they can figure out the environmental impact over the whole lifecycle along with the financial measures.

Best Practices for Procurement and Long-Term Partnership

Supplier Evaluation Criteria

When choosing a positive pressure dust collector provider, you need to do a lot more than just compare prices. Portfolios of certifications show dedication to quality management. For example, ISO 9001 stands for manufacturing processes, ISO 14001 for environmental management, and OHSAS 18001 for health and safety at work standards. At Heyuanxin, we keep all three licences and provincial-level business recognition, which shows that we follow strict quality standards.

Patent collections show how innovative engineers can be. Our company has more than ten utility model patents and ten computer software copyrights for technologies that deal with metalworking tools and dust collection. These intellectual property assets show that the supplier is still spending money on research and development, which means that the supplier will keep improving product capabilities instead of sticking to old designs. When looking at different sources, make sure to ask for proof of patents and information about new technologies that have been added to recent product lines.

Technical Support and After-Sales Service Infrastructure

Your relationship with the company that sold you the dust collection equipment lasts for decades after the equipment was first installed. When fixing performance problems or planning system expansions, it's important to have full expert help. Check with providers to see if they keep new filters, fan parts, seals, and control system parts in stock and ready to ship. Lead times longer than 4 to 6 weeks for popular wear parts show problems in the supply chain that could cause unplanned downtime to last longer.

Training programs for repair staff are another service that sets providers apart and adds value. As part of full licensing, hands-on training should be given on regular maintenance tasks, how to fix problems, and safety issues that are unique to positive pressure dust collector systems. We offer thorough operation guides and expert help through several different channels because we know that in metallurgical operations, problems with equipment that affect production need to be fixed quickly.

Customization Capabilities for Specialized Applications

Metallurgical plants, steel mills, and mining operations often need special engineering solutions that take into account things like dust conditions, site conditions, or integration issues. Standardised stock equipment doesn't always work best in complex manufacturing settings. When evaluating suppliers for purchases, look at their technical tools and history of customising products.

Before starting the planning process, the site should be carefully surveyed to find out how much dust there is, how big the particles are, what the temperature ranges are, and how much room is available for installation. Engineering teams should provide computational fluid dynamics modelling that shows how air flows and where pressure is concentrated. This level of analysis stops expensive changes from being made after the system is installed and makes sure it meets certain performance standards. Heyuanxin's design process is based on more than ten years of metallurgy research and development. This lets us predict problems that will arise in specific applications and come up with answers ahead of time.

Conclusion

In conclusion, to keep positive pressure dust collectors working in industrial settings, you have to find a balance between the architecture's built-in benefits, like small size, good particle capture, and easy installation, and the higher demands for fan wear and seal integrity. Metallurgical plants and steel mills can make equipment last longer and keep operations running smoothly by using structured inspection protocols, choosing the right filter media, keeping an eye on key performance indicators, and working with suppliers who offer full technical support. When best practices for upkeep are followed regularly, the systems' 99.9% filtration efficiency and ability to work in high-dust settings make them valuable tools. Strategic purchasing choices that focus on seller certifications, the ability to customise products, and the infrastructure for after-sales service lay the groundwork for long-term operating success in tough industrial settings.

FAQ

How often should filter media be replaced in metallurgical applications?

How often they need to be replaced depends a lot on the type of dust and how fast it loads. When pulse cleaning systems work right, electric furnace dust filters in steel mills usually need to be replaced every 12 to 18 months. The most effective way to tell when to change media is to check the differential pressure. If cleaning processes fail to lower the pressure below 4 inches w.g., replacement is needed no matter how much time has passed.

Does fan position significantly impact energy consumption?

The location of fans has a very small direct effect on energy use—usually less than a 5% change in systems that are similar. When you get the system size, pipe design, and variable frequency drive right, you can save even more energy. In some plans, positive pressure dust collector setups can cut down on pipe friction losses, but the total energy efficiency of a system depends more on how it is used than on the architecture that was used.

What early warning signs indicate imminent maintenance needs?

Increasing differential pressure during regular cleaning processes is a sign that the filter is full or that the cleaning system isn't working right. Strange vibrations or noises coming from fan units are signs of wear that need quick attention. When you can see dust coming out of housing seams or access panels, it means that seals are failing and need to be fixed right away. Putting in place systems for constant tracking gives quantitative alerts before these obvious symptoms show up.

Partner with Heyuan New for Reliable Dust Collection Solutions

Metallurgical processes need dust collection devices that are built to work continuously in harsh industrial settings. Heyuanxin is an expert at making strong positive pressure dust collectors that are designed to work with electric arc furnaces, ladle furnaces, and mining equipment. Advanced PTFE membrane filtering, smart PLC controls, and abrasion-resistant fan construction are all built into our systems to provide 99.9% gathering efficiency over time. As a positive pressure dust collector maker that is approved by ISO 9001, ISO 14001, and OHSAS 18001, we offer full solutions from design to commissioning, along with full expert support and spare parts available. Our engineering team brings more than ten years of experience in metallurgical research and development to every custom project. They will make sure that your dust control system works at its best and requires the least amount of upkeep. You can email our technical experts at sxhyyj606@163.com or visit hyyjfurnace-supply.com to talk about your specific needs and get full product specs that are made to fit your business.

References

1. Smith, J. R., & Anderson, M. K. (2021). Industrial Dust Collection Systems: Design, Operation, and Maintenance. Technical Press Publishing.

2. National Fire Protection Association. (2020). NFPA 68: Standard on Explosion Protection by Deflagration Venting. NFPA Standards Council.

3. Chen, L., & Williams, P. T. (2022). "Comparative Analysis of Positive and Negative Pressure Dust Collection in Metallurgical Applications." Journal of Industrial Air Quality Management, 38(4), 215-234.

4. Occupational Safety and Health Administration. (2019). OSHA Technical Manual: Section II, Chapter 1 - Dust Control Systems. U.S. Department of Labor.

5. Kumar, S., & Patel, R. D. (2023). "Predictive Maintenance Strategies for Industrial Dust Collection Equipment." Maintenance Engineering Review, 45(2), 78-95.

6. International Organization for Standardisation. (2021). ISO 1940-1: Mechanical Vibration — Balance Quality Requirements for Rotors in a Constant (Rigid) State. ISO Technical Committee.
