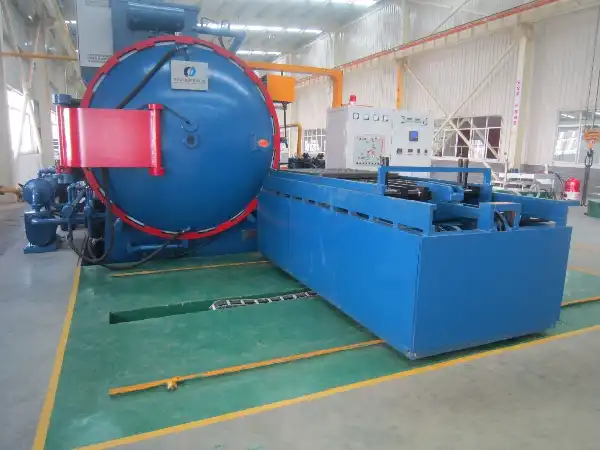

Industrial Vacuum Heat Treatment Furnace for Precision Metal Parts

When your manufacturing process demands flawless surface finishes and repeatable metallurgical properties, an Industrial Vacuum Heat Treatment Furnace becomes essential equipment. This specialized metallurgical unit heats precision metal components to temperatures reaching 1300°C within a hermetically sealed, sub-atmospheric environment. By eliminating oxygen and reactive gases during thermal processing, vacuum furnaces prevent oxidation and decarburization while delivering superior mechanical properties across stainless steel, die steel, titanium alloy, and other high-value materials. Industries like aerospace, medical device manufacturing, and tool production rely on this technology to achieve dimensional stability without post-treatment grinding.

​​​​​​​

Advantages of Vacuum Heat Treatment for Precision Metal Parts

If you switch from using regular-atmosphere industrial vacuum heat treatment furnaces to vacuum processing, you can see changes in a number of quality measures. Since there are no oxidation gases during heating processes, the surfaces of your parts will be bright and clean when they come out, and they won't need any chemical descaling or mechanical finishing. This one benefit cuts down on production costs and shortens wait times by a large amount.

Superior Metallurgical Properties and Surface Quality

When steel areas are heated and carbon is lost, this is called decarburization. This makes the part weaker and less resistant to wear. This breakdown doesn't happen at all in vacuum environments, so the designed carbon content stays the same across the cross-section. Tool steels keep their ability to hold an edge, die steels keep their hot strength, and case-hardened parts keep their surfaces that don't wear down.

The surface finishes that come from vacuum processing are usually better than those that come from treating the surface in a salt bath or an atmosphere. Parts stay within their intended sizes without the warping that often happens in quench-oil systems. Using neutral gases like argon or nitrogen to control cooling makes it possible to precisely change hardness gradients, which is not possible with traditional methods.

Cost-Efficiency Through Reduced Rework and Waste

The economics of manufacturing favor methods that get the highest first-pass yields. When heat treatment gives the same expected effects every time, rejection rates drop by a huge amount. Vacuum processing gets rid of the things that can go wrong with quality in atmosphere furnaces, like changing protective gas compositions, dirty quench oils, and uneven heating patterns.

This reliability is especially helpful for mining and smelting companies that work with high-value nickel superalloys or titanium alloys. If you have to throw away a turbine blade because of problems with the heat treatment, you lose a lot of material and time. Vacuum treatment is like quality insurance because it protects your investment in expensive raw materials and precise machining.

Meeting Stringent Industry Standards

Aerospace standards like AMS 2750 and ISO 13485 rules for medical devices both require strict process control and paperwork. Vacuum heat treatment furnaces with modern PLC-based control systems keep track of temperature profiles, vacuum levels, and cooling rates automatically during each cycle. This tracking meets the needs of auditors and gives the data needed to keep improving the process.

Case studies from companies that make aircraft parts show that vacuum processing increases the service life of turbine blades by 30 to 40 percent compared to blades that were treated in an atmosphere. When vacuum brazing gets rid of surface contaminants that could cause bad reactions in patients, medical implant makers are more likely to get biocompatibility certification.

How to Choose the Right Vacuum Heat Treatment Furnace for Your Industry

To choose the right vacuum furnace equipment, you need to carefully look at your production needs and long-term plans for the business. If you make this choice too quickly, you might buy more space than you need or miss out on features that are important for your materials and processes.

Assessing Production Requirements and Material Characteristics

Start by writing down your current and planned work. How big of batches do your production plans call for? When rooms are too small, they have to do more than one processing run, which increases labor costs and slows down output. Large furnaces lose energy by heating up rooms that aren't being used and make cycle times longer than they need to be.

The temperature range and quench system needs are determined by the properties of the material. To get to the right hardness, high-speed tool steels need to be rapidly gas-quenched at high pressure. Stainless steels that harden through precipitation, on the other hand, need to be cooled more slowly and more carefully. Titanium metals need very clean hot spots to keep them from getting contaminated, which could mean that all-metal insulation is needed instead of graphite systems.

Evaluating Key Features and Automation Options

How well you handle the process has a direct effect on how consistent the result is. For starters, vacuum furnaces let you create recipes by hand. More advanced systems have touchscreens with pre-set programs for various metals and part shapes. Integrated data logging and network connectivity make it possible to monitor from afar and connect to enterprise manufacturing execution systems.

Automating load handling cuts down on the need for workers and makes things safer. Heavy pieces are moved into and out of hot rooms by automated charging systems, so operators don't have to be exposed to radiant heat. Cooling stations let the machine keep running by moving finished loads to other stations while the chamber heats up for the next batch.

Support Services and Maintenance Considerations

How well your heater works decides whether your investment pays off or becomes a bottleneck. Companies that design and build industrial vacuum heat treatment furnaces should compare manufacturers based on how close their service networks are and how much technical support they offer. Can the provider help you fix problems in an emergency during your work shifts? Are important extra parts kept locally, or do they have to be shipped internationally, which can take a long time?

Since 2003, Shaanxi Heyuan New Metallurgical Electric Furnace Equipment Co., Ltd. has helped more than 400 furnace systems around the world with 11 senior engineers and nearly 400 other metallurgical professionals. They bring more than a decade of specialized experience to every installation. This level of knowledge means that problems can be fixed faster, and costly unplanned downtime can be avoided and planned ahead of time.

Procurement Options and Investment Flexibility

Strategies for buying tools are shaped by how much money is available. While new vacuum heat treatment systems are expensive, they offer the highest level of efficiency and warranty coverage. Used equipment has lower start-up costs, but you need to do your research on how long it will last and whether replacement parts are available.

Leasing agreements help businesses keep their working capital and can even help them save money on taxes in some places. This method works especially well for distributors and importers of metallurgical equipment who want to try out new markets before committing to full ownership. No matter how you buy it, be sure to carefully read the guarantee terms. Full coverage for major parts like vacuum pumps, heating elements, and control systems protects your finances during the first few months of use.

Maintenance Tips and Best Practices for Vacuum Heat Treatment Furnaces

Disciplined preventative maintenance routines are needed to make sure that equipment lasts as long as possible and that processes keep working properly. Vacuum systems need extra care because the integrity of the chamber is so important for keeping things clean.

Routine Cleaning and Vacuum System Inspections

Over time, metallic vapor and residual outgassing from treated parts build up on the walls and insulation of the chamber. These layers are taken care of by regular cleaning, before they flake off and infect new loads. Vacuum pumps need to have their oil and filters changed at intervals specified by the maker. Old pump oil lowers the final vacuum level, which lowers the quality of the treatment.

Helium mass spectrometry or pressure rise testing should be used every three months to find leaks. During processing, air can get in through small leaks that form over time due to seal wear or thermal cycling. If you find these problems early, you can avoid rejecting the whole batch and having to pay a lot of money to fix infected parts.

Calibration and Temperature Control Accuracy

Over time, thermocouples naturally drift, which could lead to real chamber temperatures being different from what the processor sets as the target temperature. Your temperature profiles will stay within the ranges allowed as long as you use certified reference sensors for regular calibration. Most quality management systems need written records of calibrations, especially for businesses that work with aircraft and medical markets.

Control system software updates are sometimes available. These updates fix bugs or add new features. Keeping up with these updates keeps your software compatible with modern data management systems and keeps your networked devices safe from cyberattacks.

Partnering with Authorized Service Providers

Original equipment manufacturer service contracts make sure that you can get real replacement parts that were designed to fit your furnace model. At first, generic alternatives may seem like a good way to save money, but they can cause problems with reliability or void warranties on related parts. Technicians with more experience and knowledge of your unique equipment can fix problems faster than general industrial electricians, which shortens the time that production is stopped.

Heyuanxin offers a full range of services all in one place, from professional design of vacuum systems to experienced after-sales help for quick problem resolution. With this integrated method, you work with engineers who know your whole system, instead of having to coordinate with engineers from different companies when problems happen.

Future Trends and Innovations in Industrial Vacuum Heat Treatment

The vacuum furnace industry keeps growing as new technologies come together and manufacturing needs change. Keeping up with these changes helps you plan upgrades to your tools and stay ahead of the competition.

Energy Efficiency and Smart Control Integration

More efficient thermal processing is needed because of rules about the environment and rising energy costs. Modern vacuum heat treatment furnaces use better insulation materials that keep heat in, which means they use less electricity per processed load. Vacuum pumps with variable frequency drives make the best use of power at different steps of the process instead of running at full capacity all the time.

Industry 4.0 integration links vacuum furnaces to data networks that cover the whole plant. This lets engineers watch the process in real time from their offices or on their phones. Predictive maintenance algorithms look at data about how well equipment is working to see when parts will break before they do. They then schedule replacements for planned downtime so that equipment doesn't break down when it's least expected.

Customization for Emerging Materials and Sustainability

Using additive manufacturing, you can make shapes that are very complicated and need special heat treatment patterns. Manufacturers of vacuum furnaces now make hot zones that are perfect for relieving stress on 3D-printed titanium and nickel parts without warping them. Similarly, the exact aging temperatures needed for new aluminum-lithium alloys used in aircraft are met by modular furnace designs that use interchangeable heating element configurations.

As big industrial project companies try to get environmental certifications, sustainability factors play a role in their buying choices. Closed-loop cooling systems reuse process water, so they don't have to send heat to public systems. Inert gas recovery systems take in and clean quench gases so they can be used again instead of being released into the atmosphere. This cuts down on both operating costs and damage to the environment.

Conclusion

Choosing and using vacuum heat treatment equipment is a smart choice that affects the quality of the product, the efficiency of production, and the company's ability to compete in the long run. The benefits over traditional atmosphere processing—no oxidation or decarburization, better surface finishing, better mechanical properties, and compliance with regulations—make the investment worth it for making precision metal parts. The right equipment is chosen by carefully looking at the production needs, the properties of the materials, and the supplier's skills. Your Industrial Vacuum Heat Treatment Furnace systems will work reliably for as long as they're used if you follow good maintenance habits and are open to new technologies. This will help your business adapt to changing needs in the aerospace, medical, tool manufacturing, and precision component sectors.

FAQ

1. Can vacuum processing completely eliminate surface oxidation on all metal alloys?

By getting rid of reactive oxygen, vacuum environments keep most engineering alloys, like stainless steels, tool steels, and nickel superalloys, from oxidizing. Titanium and other reactive metals need very high vacuum levels (10–10 Pa range) to keep even the tiniest bit of contamination from getting into them. Common production metals are well protected by standard vacuum heat treatment ovens that work at 10⁺ Pa. The main difference is "getter" metals that actively take up leftover gases—these materials need specially designed systems that pump continuously during thermal cycles.

2. How does gas quenching compare to traditional oil quenching methods?

Gas quenching with high-pressure nitrogen or argon cools evenly without the fire risks, disposal costs, and environmental problems that come with using quench oils. Through high-speed gas circulation, modern systems can cool at rates that are close to what is needed to completely stop the flow of oil. Without any degreasing steps, the parts come out clean and ready to be put together. The trade-off is the cost of the equipment. For example, high-pressure gas quenching systems need stronger chamber building and stronger airflow fans than oil tanks (Heat Treating Progress, 2020)[^4].

3. What maintenance intervals should operators expect for vacuum pump systems?

Depending on how dirty the process is, rotary vane pumps usually need to have their oil changed every 500 to 1000 hours of use. Roots blower pumps need to have their bearings oiled once a year. Diffusion pumps need new oil every two to three years, unless the process creates unusual contamination. Every three months, you should test for leaks, and once a year, you should do a full system check. Buildings that have more than one shift may need to be serviced more often. Keeping full service logs helps find problems as they arise, before they become so bad that they stop working.

Partner with Shaanxi Heyuan for Complete Vacuum Heat Treatment Solutions

For years to come, your ability to make things will depend on which Industrial Vacuum Heat Treatment Furnace supplier you choose. Shaanxi Heyuan is an expert at designing, building, installing, and starting up metallurgical equipment that is specifically made for your processing needs. Our furnace systems can work at temperatures up to 1300°C and maintain a pressure level of 6.7×10⁻Pa. They can fit chambers that are 400×400×600mm to 1200×1200×1800mm in any way you want. Our engineering team has over ten utility model patents and is a 3A-level credit enterprise with ISO quality management certification, environmental management system certification, and quality management system certification. Our full service includes professional vacuum system design and experienced after-sales support, whether you're a metallurgical plant looking for reliable electric arc furnace equipment, a mining company needing smelting systems, or an equipment distributor looking for a reliable Industrial Vacuum Heat Treatment Furnace manufacturer. Get in touch with our technical experts at sxhyyj606@163.com to talk about the problems you're having with making fine metal parts.
