How Does an Industrial Vacuum Heat Treatment Furnace Improve Quality?

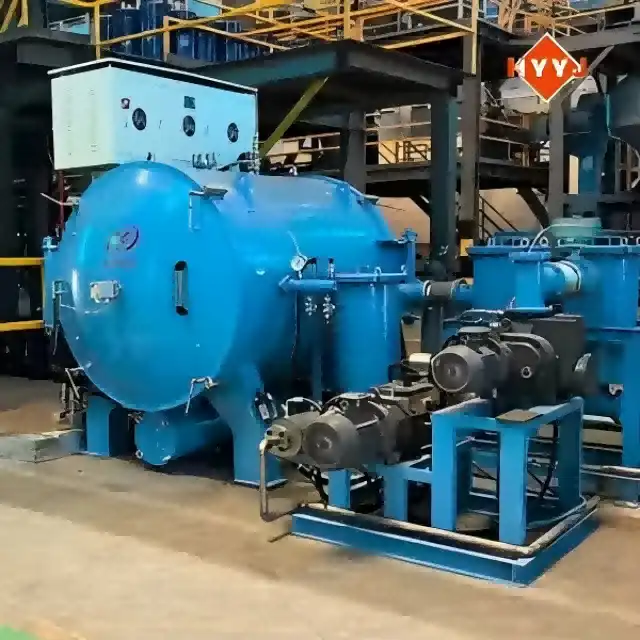

Vacuum heat treatment furnaces transform product quality by eliminating oxygen and reactive gases during thermal processing. An Industrial Vacuum Heat Treatment Furnace operates in controlled low-pressure environments—typically achieving vacuum levels of < 6.7×10 ² Pa—preventing oxidation, decarburization, and surface contamination during heating cycles up to 1300°C. This oxygen-free atmosphere preserves surface integrity while enabling precise microstructural changes. Parts emerge with bright, clean finishes and enhanced mechanical properties, including superior hardness, toughness, and dimensional stability. The vacuum environment ensures repeatable metallurgical outcomes critical for aerospace components, precision tooling, and medical implants where quality cannot be compromised.

​​​​​​​

How Vacuum Heat Treatment Improves Product Quality

The main reason why vacuum heat treatment improves quality is that it gives you complete control over the processing environment. Getting rid of airborne pollutants during thermal processes protects the structure of materials in a way that other methods can't.

Preventing Oxidation and Surface Contamination

At high temperatures, metal surfaces react badly with oxygen, creating scale and rust layers that make the surface finish and accuracy of measurements less good. By getting rid of oxygen before heating, an Industrial Vacuum Heat Treatment Furnace completely gets rid of this issue. After vacuum treatment, parts have shiny, metal surfaces that don't need to be descaled or finished.

There are more perks than just how they look. Oxide formation wears away surface material, changing the size of the part and making it rough, which speeds up wear. Vacuum processing keeps the surface smooth while stopping the growth of brittle oxide layers that break when stressed. The corrosion-resistant qualities of stainless steel parts stay the same because the chromium stays in the base material and doesn't oxidize. Titanium metals stop alpha-case from forming, which is an oxygen-hardened top layer that makes aircraft structures more likely to break.

These improvements to the surface quality get rid of the need for extra steps. Parts go straight from being heated to being put together or coated, which cuts down on handling time and costs. When you handle something without oxidation, the dimensions stay the same. This lowers the amount of waste and greatly increases the quality of the first pass.

Enhanced Mechanical Properties Through Controlled Atmospheres

In vacuum environments, you can precisely control the rates of heating and cooling, which have a direct effect on the changes in the microstructure that determine the mechanical properties. In the heating process, making sure that the job has an even temperature spread ensures that every part has the same temperature conditions. During the soaking period, the target temperatures are kept within very small ranges. This lets all phase changes happen without any temperature differences that would cause the hardness to be inconsistent.

Controlled cooling in neutral gases like nitrogen or argon lets you change the rate at which the flame goes out. Compared to oil quenching, high-pressure gas quenching cools quickly for through-hardening and causes less warping. When cooling media are clean, soft spots that are caused by uneven oil covering or vapor blanket formation don't form. Parts consistently reach their target hardness levels across production runs, meeting the requirements of the specifications.

When tool steels are heated in vacuum ovens, they become harder and more durable. The clean processing environment stops hydrogen from being absorbed, which weakens high-strength steels. When aged in a vacuum, precipitation-hardening stainless steels reach their best balance of strength and rust resistance. This is because air contamination would otherwise stop precipitates from forming. These changes to the mechanical properties mean that the tool will last longer, there will be fewer warranty claims, and the product's image will be better.

Dimensional Stability and Reduced Distortion

When you heat something, it always changes its size because things get bigger when they're hot and smaller when they're cool. These effects are lessened by vacuum processing in a number of ways. When you heat something evenly, you get rid of the temperature differences that cause thin parts or complicated shapes to warp. When cooling patterns are symmetrical, stress concentrations that cause distortion are lessened.

The controlled quenching environment lets each type of material get the best cooling rate. Parts that need to be as straight as possible are cooled more slowly, while parts that need to be as hard as possible are cooled more quickly. Because of this, manufacturers can balance the needs for properties with the limitations of dimensions, which usually means that grinding or straightening operations after heat treatment are not needed.

Getting rid of residual stress is another great benefit. When you use conventional cooling, the surface gets compressed, and the core gets tensed, which can lead to cracks or failure before it's supposed to under service loads. When you treat something with vacuum heat and controlled gas quenching, you create better stress patterns that make it more durable and resistant to wear. Thermal processing keeps the dimensions of precision parts stable, lowering variations in production and making the fit of the parts in the assembly better.

Comparing Vacuum Heat Treatment Furnaces with Traditional Solutions

To choose the right heat treatment technology, you need to know how the different methods affect quality, cost, and how well they work. Vacuum furnaces are the best in this field because they can handle the process better than anything else.

Performance Advantages Over Gas and Atmospheric Furnaces

Traditional ways of treating heat include gas-fired furnaces, which use combustion products or protective atmospheres to keep things from oxidizing while they're being heated. The clean air that vacuum furnaces provide can't be reached by these devices. Even in safe atmospheres, residual oxygen can still cause small surface oxidation, which needs extra cleaning steps. For carbon potential control in carburizing atmospheres, you have to keep an eye on things and make changes all the time. But for low-pressure carburizing in vacuum furnaces, the case depth is controlled automatically and accurately.

Even though atmosphere-controlled electric furnaces are better than gas-fired ones, they still use gases in the atmosphere that react with the surfaces of the workpieces. Natural gas creates endothermic atmospheres with carbon monoxide and hydrogen that control the chemistry at the surface. However, if these gases are not balanced properly, they can lead to decarburization. Vacuum processing gets rid of all of these control problems, so the effects are always the same, even if the quality of the gas in the air or the source changes[3].

The change in surface finish quality is quickly clear when looking at it. Parts that were treated with vacuum have shiny surfaces that look like mirrors, while parts that were treated with atmosphere have dull gray oxide films. The difference in quality cuts down on the cost of secondary finishing by a large amount. This is especially true for expensive parts where the quality of the surface directly affects how well they work.

Energy Efficiency and Environmental Considerations

Insulation systems for vacuum furnaces that use graphite felt or metal radiation shields are very good at keeping heat in. Since radiation, not convection, is the main way heat loss happens, systems can keep their temperatures steady with little energy input. Modern designs use recuperative cooling systems that use waste heat for extra heating needs, which makes the whole thing even more efficient.

Gas-fired heaters constantly release burning products into the air, which wastes a lot of heat. During processing cycles, protective atmosphere furnaces use a lot of gases that are made or mixed. An Industrial Vacuum Heat Treatment Furnace is a closed system that only needs electricity and a small amount of inert gas to cool down. The lack of emissions into the air makes environmental compliance easier and gets rid of the problems that come with getting rid of cool oils or salt baths.

Operating cost study over the life of an item usually shows that vacuum systems are better, even though they cost more at first. Over thousands of production rounds, the energy savings add up to a lot. Getting rid of atmospheric gases and quenching fluids that are used up quickly lowers the long-term costs of materials. There is less need for extra processing because there is no descaling, cleaning, or straightening. This saves time and money because output goes up and return on investment goes up.

Evaluating Supplier Capabilities and Support

There are both well-known companies with decades of experience in the field of metallurgy and new companies with low prices in the vacuum furnace market. When choosing a provider, you need to look at more than just the equipment specs. Heyuanxin and other companies like it have designed and put into service more than 400 furnace systems since 2003, so they know a lot about metallurgical electric Industrial Vacuum Heat Treatment Furnace equipment. This practical knowledge is very helpful when planning the system, setting it up, and creating new processes.

Technical support skills are what set good providers apart from great partners. For vacuum systems to keep working well, the fans, heating elements, and control systems need to be serviced on a regular basis. When problems happen, downtime is kept to a minimum by suppliers who offer full after-sales service, such as spare parts availability, remote diagnostics, and field service technicians. Customization is very important because labor needs change a lot from industry to industry. Different types of applications can be met by providers with chamber sizes ranging from 400x400x600mm to 1200x1200x1800mm and temperature ranges up to 1300°C.

Certifications and patents show that an engineer is mature and committed to new ideas. Suppliers with ISO quality control standards show that they take a systematic approach to making sure that their products are always the same. Multiple utility model patents suggest that money is being spent on ongoing technology development that helps customers by making equipment work better and be more reliable.

Maintenance and Operational Best Practices for Quality Assurance

To keep the quality benefits that vacuum heat treatment gives you, you need to follow strict maintenance and operation rules. These systems have precise parts that need to be checked regularly to make sure they keep working as expected.

Preventive Maintenance for Consistent Performance

Vacuum purity is the most important factor that affects the quality of the process. Leak rate tests should be done every three months to make sure the system stays at the right vacuum level. Even small leaks that let air in hurt the quality of the surface and the mechanical properties of the results. Door mechanisms' sealing surfaces need to be checked and reconditioned on a regular basis to keep the seal from wearing down. Regularly replacing the O-rings stops vacuum problems that happen during production runs.

Vacuum pumps should be serviced according to what the manufacturer says based on how many hours they are used. Oil-sealed rotary vane pumps need to have their oil changed regularly to keep working well and keep the pump from getting dirty. Roots blowers need to have their bearings oiled and their clearances checked to make sure they work properly. If you have diffusion pumps in a high-vacuum system, you need to change the fluid and check the jets every so often. Not taking care of your pumps can cause them to lose their sucking power, which lowers the quality of your products over time before tracking systems notice[4].

Temperature uniformity and energy economy are both affected by the state of the heating element. Graphite elements slowly melt at working temperatures, getting thinner over time until they need to be replaced. When molybdenum elements are heated and cooled over and over again, they become weak and finally break. Regular measurements of resistance find elements that are breaking down before they completely stop working and stop production. Checking the thermocouple's calibration makes sure that temperature readings stay accurate, since sensor drift could let processing happen outside of specified ranges without being noticed.

Operational Protocols That Preserve Quality

How things are loaded has a big effect on how things are processed. When parts are spaced out correctly, gas can flow through them during settling, which ensures that the load cools at the same rate all over. When tanks are overloaded, protected areas form where cooling takes longer than expected, leaving soft spots in hardened parts. Fixturing design stops parts from touching each other, which would cause slow cooling and physical changes in one area.

Documenting the process and checking the parameters keep the standard from dropping over time. Statistical process control is possible by keeping track of the vacuum levels, heating rates, soak temperatures, and quenching pressures for each production batch. By looking at these parameters over time, you can spot small changes that mean equipment problems are starting to happen before they affect the quality of the product. As required by AMS 2750 standards, temperature consistency studies are done every six months to make sure that the working zone stays at the right temperature level.

Operator training makes sure that workers know how the factors of a process affect the quality of the results. Using a vacuum furnace requires more technical know-how than using other types of heat treatment. Operators need to be able to spot signs of a vacuum leak, know what to do when an alarm goes off, and know how changing parameters affects the quality of materials. Full training programs lower the chance of operating mistakes and give staff the tools they need to improve processes so that quality output is always the same.

Troubleshooting Common Issues

Problems with vacuum systems usually show up as longer pumpdown times or not enough final vacuum levels. These signs show that the seal is leaking, the pump is breaking down, or the chamber is getting dirty. Helium leak detection quickly finds problems with seals so that they can be fixed without having to take the whole thing apart to look for problems. Testing the performance of a pump lets you know if it works as it should or if it needs to be serviced.

Temperature control issues show up as overshoot during heating, inability to keep the setpoint during soak, or too much variation across the load. Unbalanced heating element resistance leads to hot and cold spots that need to be fixed or replaced. Calibration drift in the control system causes temperature errors that happen on all cycles until they are fixed. These problems don't affect production because the thermocouple system is tested regularly according to instrument standards.

The mechanical qualities reached during cooling are affected by how well the quenching system works. When there isn't enough quench pressure or gas flow, cooling rates are slower, which can lead to parts that aren't fully hardened. Even after vacuum processing, the surface turns a different color because of gas pollution from moisture. Monitoring the dew point of quench gas sources ensures that cooling is done without any contamination. Instrumented test loads are used to check the quench rate on a regular basis to make sure the system is cooling the working zone as expected.

Procuring the Right Industrial Vacuum Heat Treatment Furnace

Choosing the right vacuum heat treatment tools means matching the system's capabilities to the needs of the production process and thinking about how it will work in the long run. This choice will have a big effect on industry and product quality for years after it is put in place.

Assessing Production Requirements and Technical Specifications

Basic system needs are set by the types of materials and their shapes. For aerospace superalloy processing, a vacuum level close to 10⁻⁶ mbar is needed to keep reactive metals from getting into the process. Tool steel strengthening works well at 10⁻² mbar, which means vacuum systems can be easier and cost less to buy. The minimum chamber size is based on the largest dimension of the parts that need to fit. The production volume decides whether batch or continuous processing is more cost-effective.

The temperature needs to affect the choice of heating elements and the layout of the hot zone. Most ferrous metals and tool steels can be heated to 1300°C with graphite heating devices that don't cost much. All-metal hot zones with molybdenum elements work well in very clean environments, like medical devices, where graphite dust contamination is not acceptable. To make sure there is enough heating power and the element lasts longer, the maximum temperature should be 100–150°C higher than the normal working temperature.

Specifications for gas handling systems are affected by quenching needs. Air-hardening steels only need small amounts of cooling, which can be done with low-pressure gas flow. High-pressure systems that work at 10 to 20 bar are needed for oil-hardening grades that need to be quenched quickly to reach full hardness. Which gas to use—nitrogen, argon, or helium—depends on how fast the cooling needs to happen and how much it will cost to run. Before hiring suppliers, these technical specifications should be carefully written down to make sure that they give accurate system quotes.

Evaluating Suppliers and Total Cost of Ownership

The initial buying price is only one part of the total cost of owning a vacuum heater. Usually, the amount of energy used over the life of an item far exceeds its initial cost. Every year, operating costs go down because of good insulation design, recuperative cooling systems, and optimized heating profiles. Maintenance needs, especially how often the heating element and vacuum pump need to be serviced, affect ongoing costs and output downtime. When suppliers give accurate operating cost estimates based on expected production volumes, it's possible to make smart economic comparisons.

Supplier professional skills include more than just making tools; they also need to know about processes and be able to help with applications. Heyuanxin and other companies that make metallurgical tools know how the characteristics of a furnace affect the qualities of the material. Based on experience from hundreds of installations, their engineering staff can suggest the best processing cycles for different alloys, fix quality problems, and suggest ways to make things better. This knowledge is very helpful during the commissioning and process development stages, when the needs of production are being figured out[5].

The timing of the production start is affected by delivery plans and installation support. Ordering a custom-engineered vacuum system can take anywhere from 6 to 12 months, depending on how complicated it is. The supplier's project management skills make sure that the work is finished on time and that all the necessary utilities, rigging, and commissioning tasks are coordinated. Full installation services that include mechanical installation, electrical connection, and process validation make it easier for in-house support staff to do their jobs and make sure the system starts up correctly.

Warranty, Service, and Long-Term Support

The terms of the warranty show that the maker trusts the stability of the equipment. For one to two years, full coverage that includes parts, labor, and trip costs protects you during the first few months of use, when production flaws usually show up. For an extra fee, extended guarantee choices offer ongoing protection, but their usefulness depends on how quickly the seller responds to service requests and the availability of parts.

How quickly production can start up again after equipment breaks down depends on how well the after-sales service is done. Suppliers who keep extra parts on hand can ship important parts right away instead of waiting weeks for them to be made. Field service networks with technicians in the same area cut down on journey time and costs for repair calls. Supplier experts can troubleshoot problems over networks, so they don't have to go to the spot to fix them. This is called remote diagnostics.

Long-term supply of parts ensures that equipment can be fixed at any time during its useful life. When properly maintained, vacuum furnaces usually last 20 to 30 years. Suppliers who keep their product designs stable can provide new parts decades after the originals were installed. Larger companies with a lot of installed bases are more likely to provide ongoing support than smaller companies that might stop making certain products or shut down completely. Along with technical skills and price, these service factors should play a big role in choosing a supplier.

Conclusion

Through contamination-free thermal processing, vacuum heat treatment technology improves quality in a way that can't be matched. These systems make parts with better mechanical properties, surface finish, and dimensional accuracy in dimensions by stopping oxidation and decarburization and allowing precise microstructural control. The operational benefits over traditional Industrial Vacuum Heat Treatment Furnace technologies—such as less secondary processing, less damage to the environment, and consistent repeatability—make the initial investment worth it in aerospace, medical, tooling, and precision manufacturing settings. These quality benefits will last as long as the right equipment is chosen based on output needs, is maintained properly, and is backed by a good relationship with the provider. As industrial standards keep going up and material requirements keep getting stricter, vacuum heat treatment furnaces become more than just a way to improve quality; they become a competitive necessity for companies that want to be the best.

FAQ

1. Can vacuum processing completely eliminate surface decarburization?

Decarburization can't happen at all with vacuum heat treatment because it gets rid of the air and carbon dioxide that cause steel surfaces to lose carbon. When the protective gas composition goes outside of small control windows, conventional atmosphere furnaces run the risk of decarburization. This isn't a problem in a vacuum environment because the full surface hardness and strength are kept. This benefit is especially useful for parts with complicated shapes, where the flow of air may not be even, which would normally cause decarburization to happen in certain areas.

2. How does gas quenching compare to traditional oil quenching methods?

High-pressure gas quenching in vacuum furnaces lets you control cooling rates that are similar to oil quench speeds while getting rid of fire risks, disposal costs, and the need to clean up after the quench. After gas cooling, parts are totally clean and ready for the next step in the process. When compared to oil quenching, distortion usually goes down because the heat is extracted more evenly. Most types of tool steel, alloy steel, and stainless steel can be used in this process. However, materials that don't harden easily may need to be quenched in oil to reach their full hardness[6].

3. What maintenance frequency keeps vacuum furnaces operating optimally?

Every day, you should check the vacuum levels, the heating system, and the safety interlocks. Every month, locks, door mechanisms, and cooling systems are checked. Every three months, you have to do things like check the leak rate and the thermocouple's accuracy. As required by industry standards, every six months of upkeep includes cleaning the vacuum pump, checking the heating elements, and checking the temperature uniformity. This methodical technique prevents mistakes that come up out of the blue and keeps the high-quality results that vacuum processing gives you.

Partner With Shaanxi Heyuan for Superior Vacuum Heat Treatment Solutions

The Shaanxi Heyuan New Metallurgical Electric Furnace Equipment Co., Ltd. has been creating and making vacuum heat treatment systems for tough metallurgical uses for more than fifteen years. Our Industrial Vacuum Heat Treatment Furnace supplier can make chambers that are any size from 400x400x600mm to 1200x1200x1800mm, with temperature ranges up to 1300°C and vacuum levels up to ≤6.7×10⁻²Pa. These are the exact specifications needed for aerospace and precision manufacturing. Our engineering team has more than ten utility model patents, which show that they are always coming up with new ideas for furnace technology. Our ISO quality management certification makes sure that the quality of our products is always the same. We offer full turnkey solutions, from the initial design to installation, commissioning, and ongoing technical support. Our experienced after-sales service fixes problems quickly so that production doesn't stop. Get in touch with our expert team at sxhyyj606@163.com to talk about your unique heat treatment needs and find out how our vacuum furnace solutions can improve the quality of your products while lowering your costs.
