How to Select the Right lime kiln furnace for Your Needs

Selecting the right lime kiln furnace directly affects product quality, fuel costs, and regulatory compliance. A lime kiln furnace calcines limestone at temperatures between 900°C and 1200°C to produce quicklime used in steelmaking, chemical production, building materials, and environmental protection. The decision involves evaluating kiln type, chamber size, fuel compatibility, energy efficiency, and supplier support. Getting this wrong leads to inconsistent lime reactivity, higher operating costs, and costly downtime. This guide walks you through every factor that matters before you sign a purchase order.

Understanding Lime Kiln Furnaces: Types and Working Principles

Before you compare models, it's helpful to know how these systems work and where each design does its best.

How Limestone Calcination Works

CaCO₃ → CaO + CO₂ is an endothermic reaction that is driven by a lime kiln furnace. To fully break down calcium carbonate, it needs to be heated for a long time above 900°C. The dwell time and temperature curve have a direct effect on how reactive the lime is. For high-reactivity soft-burnt lime, the peak temps need to be lower and the contact time needs to be shorter. Too much heat turns lime into dead-burnt lime, which can't be used as a flux in steelmaking.

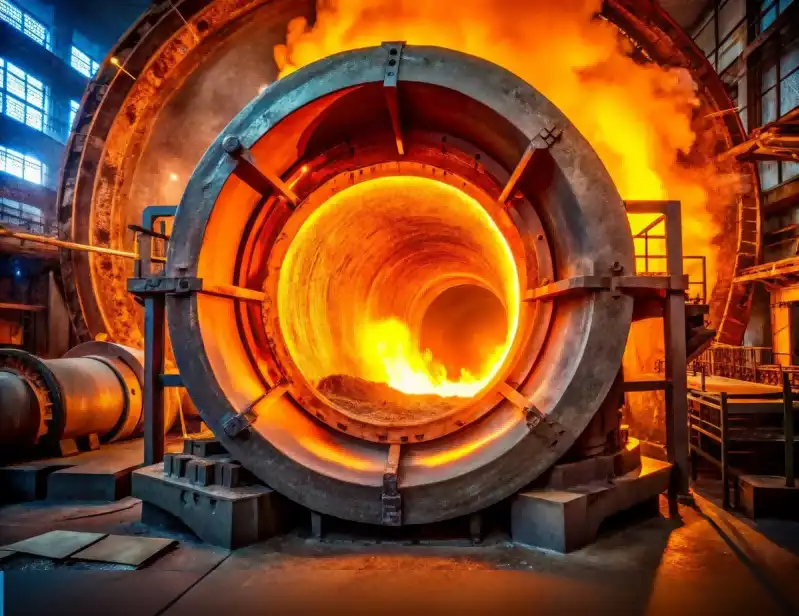

Rotary Kiln Design

Roller kilns are better at handling mixed feed grades and smaller limestone particles than shaft types. They provide uniform calcination for a wide range of raw materials. However, more than 5,000 kJ/kg of lime is usually used, which means that fuel costs more than with regenerative shaft options.

Vertical Shaft Kiln Design

The specific heat needed for Parallel Flow Regenerative (PFR) shaft kilns is as low as 3,600 kJ/kg lime. This is made possible by heat exchange between alternating combustion shafts. This design works well for operations that want to save fuel and use bigger amounts of limestone. At Heyuanxin, chamber sizes range from φ1.8m×30m to φ4.8m×60m, and they can be changed to fit your needs.

Criteria to Consider When Choosing the Right Lime Kiln Furnace

Once you know how a kiln works, the actual process of choosing one comes down to four choices. Each one changes both the initial expense and the long-term costs of doing business.

Fuel Type and Energy Consumption

The fuel you choose has the biggest effect on your running costs. On the same platform, the Heyuanxin lime kiln furnace can burn coke, natural gas, coal gas, and biomass fuels. Compared to regular kilns, a waste heat recycling system uses 10% to 15% less energy and has a thermal efficiency of up to 75%. Always check to see if fuel is available and how much it costs in your area before committing to a burner setup.

Production Capacity and Chamber Sizing

Make sure the size of the chamber fits your daily lime output goal and the amount of lime that you expect to produce. When kilns are too small, they have to run at full load all the time, which speeds up the wear on the refractory. With only some loads, kilns that are too big lose fuel. Heyuanxin engineers figure out the best chamber shape based on the properties of your raw limestone, the amount of output you want in TPD, and approved qualification rates above 95%.

Environmental Compliance and Emission Control

The EPA has rules for U.S. factories that deal with particulate matter, NOx, and SO₂ pollution from calcination processes. Modern lime kilns have improved burner stages to control the formation of NOx and can connect directly to circuits that remove sulfur from flue gas. Before you buy, make sure that the design of the kiln you choose includes tools for tracking emissions.

Analyzing Costs and Supplier Considerations for Procurement

The total cost of ownership is a lot more than the price of the car. The real numbers are broken down here by stage of an item's lifecycle.

The price of buying a lime kiln furnace burner at first depends on many factors, such as the size of the room, the complexity of the fuel system, and the level of automation. Installing and starting up the equipment costs an extra 15% to 25% on top of the cost of the equipment itself. Maintenance on the refractory, fuel use, and labor are all ongoing costs. When used properly, the working lining in a vertical shaft kiln will last for more than three years. On the other hand, the burning zone linings in rotary kilns need to be replaced every 6–12 months because they are under a lot of mechanical stress.

Here are the most important factors to use when evaluating suppliers during procurement:

• Technical certifications: Confirm ISO 9001 quality management, ISO 14001 environmental management, and occupational health certifications. Heyuanxin holds all three system certificates plus more than ten utility model patents.
• After-sales support structure: Evaluate response time commitments, spare parts availability, and on-site service reach. A supplier that handles design, manufacturing, installation, and commissioning under one contract reduces coordination risk significantly.
• Custom engineering capability: Standard catalog kilns rarely match site-specific raw material chemistry or output targets. Suppliers with in-house engineering teams can adapt calcination zone geometry, burner placement, and draft control to your exact process.

Certifications in technical areas: Check to see if the company has ISO 9001, ISO 14001, and workplace health and safety standards. She also has more than ten utility model patents and all three system certificates.- Structure for after-sales support: Check the promised response time, the supply of spare parts, and the service reach on-site. A supplier who does the design, production, installation, and commissioning all under one contract greatly lowers the risk of coordination.

​​​​​​​

Troubleshooting and Maintenance Tips to Maximize Furnace Lifespan

Even if you choose the right kiln, it will still have problems. If your team knows ahead of time what the most common failure modes are, they can fix small problems before they turn into costly shutdowns.

Managing Temperature Instability

Lime reacts in different ways depending on how the heat is distributed in the calcination zone. The Heyuanxin smart control system keeps an eye on the weather and atmosphere in real time and changes the calcination settings automatically. If there is instability during operation, check the draft consistency, the burner calibration, and the uniformity of the limestone feed size before assuming there is a problem with the machine.

Preventing Ringing and Clinker Formation

When fuel ash fuses at high temperatures, rings form inside the lime kiln furnace. This happens most often when coal is used that has reactive ash chemistry. Most ring events can be avoided by controlling the flame temperature profile and keeping an eye on the fuel ash makeup. The multi-channel burner device at Heyuanxin lets workers change the ratio of air to fuel on the fly, which keeps the calcination zone safe.

Routine Inspection and Refractory Care

Use ultrasonic pulse velocity tests to find internal holes in the refractory lining every three months before damage can be seen. Heyuanxin kilns use special refractory materials that don't wear down or spall when heated to high temperatures. This makes the lining last longer when the kiln is running normally. Instead of waiting for major failures that affect lime output, replace worn parts before they happen.

Making the Final Decision: Matching Your Needs with the Right Lime Kiln Furnace

You have now looked at different types of kilns, fuel systems, capacity needs, supplier credentials, and maintenance planning. The last step is to match all of that data up with your specific operational profile.

Steel mills and EAF workers need quicklime that reacts quickly, has a lime activity of at least 320 ml/4N-HCl, and has less than 1.5% CO2 left over. This standard calls for precise control of the draft and even heating throughout the furnace room. Environmental sites that make lime for flue gas desulfurization need porous lime structures with a lot of surface area. This depends on controlling the calcination temperature and the dwell time. Chemical makers and companies that make building products need the same quality of calcium oxide every time.

In the end, the list should include flexible fuel options, the ability to increase or decrease the size of the chamber as production increases, a clear service agreement that includes everything from starting up the machine to regular check-ups, and performance data that has been checked against ASTM C25 and ASTM C110 standards for lime quality.

Conclusion

When choosing a lime kiln furnace, you need to make sure that the type of kiln, the fuel system, and the room size all fit with your production goals. You should also think about the total cost of ownership and the level of support from the seller. For large-scale operations, vertical shaft kilns use less fuel, while rotary designs give you more options for how to feed the kiln. Give more weight to providers who have confirmed qualifications, in-house engineering, and service promises that last a long time. Heyuanxin's lime kiln systems work at temperatures between 900°C and 1200°C, with approval rates above 95% and thermal efficiency up to 75%. They are used in the steel, chemical, and environmental industries in the U.S. and around the world.

FAQ

What is the difference between a rotary kiln and a vertical shaft kiln?

It is better for rotary kilns to work with smaller stones and mixed feed, but they use more fuel, usually more than 5,000 kJ/kg. Vertical shaft kilns, especially PFR designs, can use as little as 3,600 kJ/kg of fuel and can handle bigger pieces of limestone.

How do I calculate the right kiln size for my operation?

Start with your daily quicklime output goal in tons per day (TPD), then add in the density of the limestone feed, the qualification rate you want, and the type of fuel you use. Heyuanxin engineers can make special size estimates based on the profile of your raw material.

Can a lime kiln furnace run on biomass fuel?

Yes. Modern burners with multiple channels can handle co-processing biomass. To keep calcination zone temperatures steady, you need to predict the calorific value and moisture content.

How long does the refractory lining last?

The working lining of a vertical shaft kiln that is well taken care of usually lasts more than three years. Because they are constantly rotating, rotary kiln burning zone linings need to be replaced more often.

What certifications should I verify before purchasing?

Check that the company has at least ISO 9001, ISO 14001, and occupational health certifications. Patents and business recognition at the provincial level are signs of proven engineering skills.
