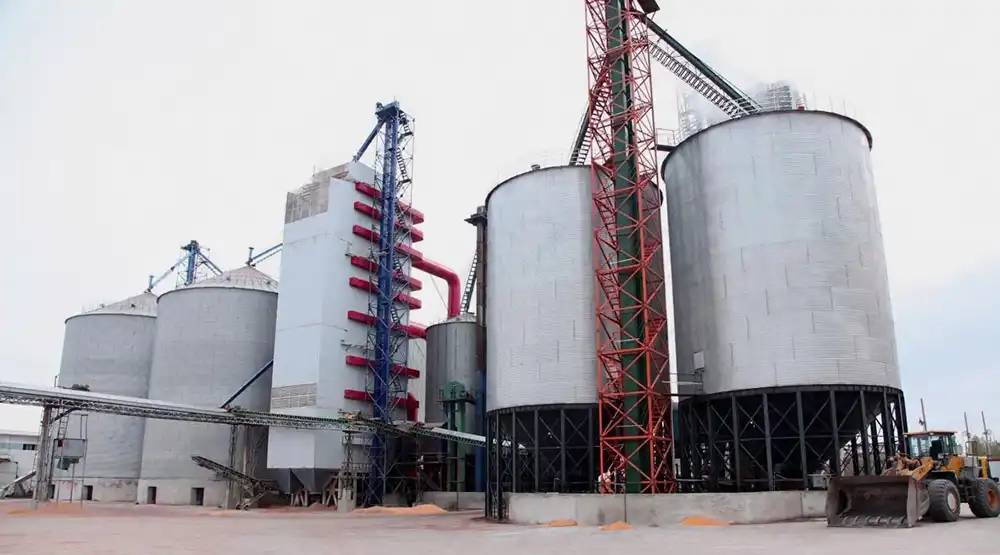

How Does a Furnace Storage Silo Improve Material Handling?

A furnace storage silo improves material handling by acting as a controlled buffer between raw material supply and active furnace feeding. Instead of relying on manual batch charging, the silo holds bulk feedstock — such as metal ores, coke, or alloy additives — and releases it at a steady, regulated rate. This prevents feed interruptions, stabilizes the smelting rhythm, and reduces the physical strain on operators. In metallurgical environments where consistent heat input and material composition are non-negotiable, a well-engineered furnace storage silo is the mechanical backbone of reliable production.

​​​​​​​

Understanding Furnace Storage Silos and Their Role in Material Handling

A furnace storage silo is more than just a box. It is a precisely engineered intermediate storage vessel made to hold bulk materials at high temperatures and continuously feed them into furnace systems. This function has a direct effect on the quality of output, the amount of energy used, and the longevity of equipment in metallurgical plants.

Core Operating Principle

Materials for furnaces are briefly stored in the bin, which is both inside and outside the furnace. It controls the timing of the feed so that the furnace gets steady input without sudden jumps or gaps. This control keeps the melt chemistry from changing and protects the furnace walls from thermal shock.

Key Mechanical Components

Heyuanxin's furnace storage bin has a refractory covering that is 100–300 mm thick, discharge ports that are 300–800 mm apart, and a system that keeps the discharge ports from getting blocked. These parts work together to keep the ores, chemicals, and processing agents moving smoothly through gravity or mechanical means.

Design Fundamentals for Industrial Environments

The furnace storage silo body can fit furnace chambers from φ2 to φ10 m in diameter and can work at temperatures of up to 1,500°C. 5 to 50 m³ of material can be stored. The small vertical structure fits into existing plant layouts and doesn't require a lot of extra floor space.

Key Benefits of Using Furnace Storage Silos in Material Handling

When a metallurgical company puts in a large material holding silo of the right size, it immediately and measurably improves operations. This equipment is a good buy for steel mills, ferroalloy plants, and smelting operations because of these main benefits.

• Continuous feeding without interruption: The anti-blocking discharge design prevents material bridging and rat-holing — two common problems that halt furnace feeding. This keeps the smelting cycle uninterrupted and protects thermal linings from heat imbalance.
• Space efficiency with high capacity: The vertical silo structure stores between 5 and 50 m³ of material without requiring a large floor footprint. Facilities with spatial constraints gain storage volume without construction costs.
• Thermal protection for stored materials: With refractory lining rated for temperatures up to 1,500°C, the silo protects stored feedstock from thermal degradation. Advanced insulation reduces heat loss, maintaining material quality and reducing energy waste.
• Reduced labor intensity: Automated discharge replaces manual charging cycles, cutting operator fatigue and human error. This lowers labor costs and improves workforce safety in high-temperature environments.

The most common problems in metallurgical material handling are slowdowns due to feed failure, energy loss, and uneven smelting output. These benefits directly address these issues. Heyuanxin's silo design has been used in over 400 sites around the world, showing that it works well with a wide range of furnaces.

Comparison of Furnace Storage Silos with Alternative Storage Solutions

Not all options for bulk storage work well in places with high temperatures, like furnaces. Procurement managers can make better decisions when they know the difference between a furnace storage silo, a standard hopper, and a storage tank.

Silos vs. Hoppers

Hoppers are short-term holding boxes with limited space that are used for direct feeding. A furnace silo, on the other hand, can hold up to 50 m³, actively control flow rate, and can handle very high temperatures. It's not possible for hoppers to provide the buffer depth needed for 24-hour production in ferroalloy and EAF operations.

Silos vs. Storage Tanks

Storage tanks are designed to hold liquids. Different discharge shapes are needed for different types of bulk solid feedstocks, such as raw ores, silica sand, and alloy additives. In furnace silos, hopper angles are usually between 60° and 75°, which creates mass flow. This makes sure that materials move from the hoppers in a first-in, first-out manner and stops particles from separating, which can change the melt chemistry.

Manual vs. Automated Silo Systems

Variability comes from the fact that time and physical input for manual silo systems rely on the user. Controlled release mechanisms make sure that the feed rate is exactly right in automated systems like the ones Heyuanxin provides. This lowers the number of times the machine needs to be charged, shortens the cycle time, and lets workers focus on quality control instead of transportation.

Optimizing Furnace Storage Silo Performance for Seamless Material Handling

A furnace silo works best when it is checked on a regular basis. Even a well-built ore storage silo can have flow problems or lose heat over time if it doesn't have a set maintenance schedule.

Scheduled Inspection Protocols

Heyuanxin suggests checking the outside for rust and the state of the anchor bolts every six months. Liner wear is found in high-abrasion areas, especially around the lower hopper section, by using ultrasonic gauges to check the thickness of the inner walls once a year. This method makes tools last longer than the normal 3-year refractory lining standard.

Temperature Monitoring and Control

Placed in key areas inside the silo, sensors track how heat moves and let operators know when something is wrong. Heat shields block radiant energy from bunkers that are next to working furnaces. The refractory lining (100–300mm) keeps the stored material at stable temperatures, which stops reactive feedstocks from clumping together or starting on their own.

Cleaning and Cross-Contamination Prevention

Regular cleaning inside the furnace storage silo gets rid of dust that might change the chemistry of later charges. For tasks that involve moving between types of material, cleaning the output port thoroughly between cycles (for openings between φ300 and φ800mm) keeps them from getting contaminated. As part of its after-sales service, Heyuanxin replaces refractory materials and does full upkeep.

How to Choose the Right Furnace Storage Silo for Your Business Needs

Selecting a furnace material storage silo requires matching the equipment specifications to your production volume, material type, and furnace configuration. Here is a practical framework for making that decision.

Calculate Your Required Storage Volume

Start with your daily material consumption rate and production cycle length. Heyuanxin's silo range covers 5 to 50 m³, which accommodates most small-to-large smelting operations. Oversizing wastes capital; undersizing creates supply gaps. Matching storage capacity to hourly furnace feed rate is the starting point.

Match Materials of Construction to Your Feedstock

Carbon steel (ASTM A36) handles standard bulk solids effectively. For abrasive feedstocks like iron ore or silica sand, internal wear protection — such as high-hardness liner plates — extends service life. Heyuanxin engineers select construction materials based on the specific feedstock's abrasion index, temperature profile, and chemical reactivity.

Evaluate Supplier Capability and After-Sales Support

A silo supplier should offer custom design, not only catalog units. Heyuanxin delivers a complete path from design to manufacturing, installation, commissioning, and long-term servicing. With 11+ years of metallurgical equipment experience, ISO quality management certification, and 10+ utility model patents, the company meets the documentation standards required by EPC contractors and large industrial project buyers in the US market.

Conclusion

A furnace storage silo does more than just hold materials; it also controls the whole feed chain that makes sure a metallurgical furnace works at full capacity. It directly improves plant efficiency and output consistency by stopping feed interruptions, keeping material quality safe at high and low temperatures, and cutting down on manual labor. To pick the right silo, you need to make sure that its capacity, temperature rating, and discharge design are all right for your process. Heyuanxin's engineering team is an expert in this particular need, and they have certifications, patents, and more than ten years of field-proven installations in markets around the world.

FAQ

What materials can a furnace storage silo store?

Dry bulk products like metal ores, coke, alloy additives, silica sand, and coal are stored in furnace bunkers. Heyuanxin's silo can hold materials that can handle temperatures up to 1,500°C. The method isn't good for holding liquids or other things under pressure.

How often should a furnace silo be inspected?

Every six months, inspections from the outside are suggested. Every year, the width of the inner ultrasound wall should be checked, with special attention paid to the lower hopper zone, which experiences the most wear and tear. After every big production run, the state of the refractory covering should be checked.

Can an existing silo be retrofitted with temperature control or dust management systems?

Yes. Upgraded discharge mechanisms, temperature sensors, and dust collection systems that are mounted on the roof of existing units can be added. With the right technical study, it is also possible to make retrofits that meet NFPA standards.

What furnace types does Shaanxi Heyuan's silo support?

The silo can be used with electric arc furnaces (EAF), submerged arc furnaces, ladle furnaces, and other types of metal furnaces. The furnace chamber can be changed to fit sizes between φ2 and φ10m.

What is the service life of the refractory lining?

The refractory lining, which is 100–300 mm thick, lasts longer than 3 years when used normally. Shaanxi Heyuan provides refractory repair services so that full performance can be restored without having to rebuild the whole silo structure.

Get Your Custom Furnace Storage Silo from Shaanxi Heyuan

Shaanxi Heyuan has developed and sent furnace storage bin systems to more than 400 locations around the world. If you need a reliable furnace storage silo maker, we can help you with full setup, unique refractory configurations, and storage sizes ranging from 5 to 50 m³. Get in touch with our tech team right away to talk about your unique material handling needs. To get a quote,email us at sxhyyj606@163.com.
