High Carbon Ferromanganese Furnace vs Traditional Smelting Systems?

Modern High Carbon Ferromanganese Furnaces are better than old-fashioned smelting systems because they use less energy, let you precisely control the metal makeup, and have less of an effect on the environment. These special buried arc furnaces can get manganese levels of up to 75% and carbon levels of 7 to 8%. They can also use up to 95% less energy than regular blast furnaces and older electric arc technologies. The advanced electrode control systems and smart tracking features ensure consistent product quality while lowering running costs and emissions by a huge amount. This makes them the best choice for metallurgical plants that care about both performance and compliance.

Understanding High-Carbon Ferromanganese Furnaces

Modern Submerged Arc Technology

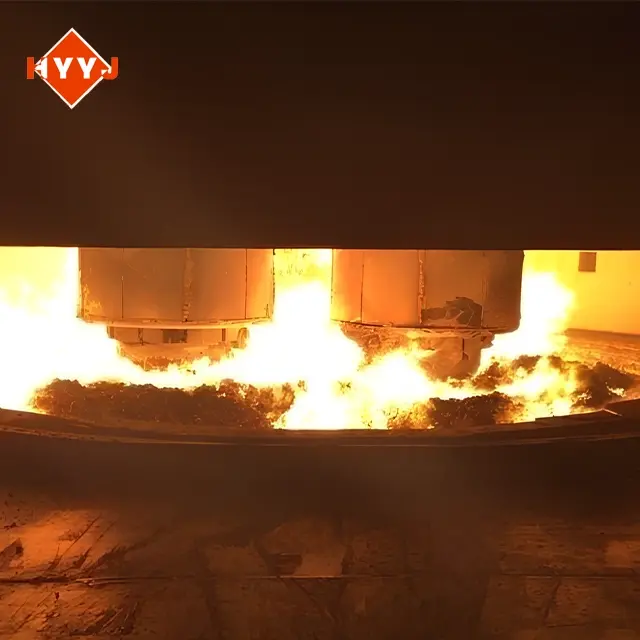

High Carbon Ferromanganese Furnaces are a special type of Submerged Arc Furnace that is designed to reduce Manganese Ore using carbothermic reduction. In contrast to regular electric furnaces, these have electrodes that go deep into the charge mix. There, electrical resistance creates intense heat zones that can hit 1,500 to 1,700°C. This design makes it easier for the complicated chemical processes that are needed to get manganese out of oxide ores, and it also makes sure that the finished alloy has the right amount of carbon.

The technology uses either self-baking Söderberg electrodes or pre-baked carbon electrodes, depending on the size of the production and the preferences of the operators. Self-baking systems keep making electrodes as they go down, which cuts down on human work but requires careful control of the paste quality. While pre-baked electrodes have better mechanical strength and more uniform electrical qualities, they need more complex clamping and feeding systems.

Advanced Process Controls

Modern furnaces have smart tracking systems that monitor important factors such as the position of the electrodes, the amount of burden on the furnace, the spread of temperature, and the input of power continuously. These controls make sure that the working conditions stay in the best reduction zones. This stops common problems like electrode damage, uneven heat distribution, or too much slag formation. The result is a very stable alloy chemical make-up—the manganese content stays at ≥75%, and the carbon content stays exactly between 7% and 8%. This meets strict requirements for deoxidation and alloying uses in steel mills.

A better energy economy comes from closed-top designs that collect off-gases that are high in carbon monoxide. Modern setups don't release this energy into the air. Instead, they run the gas through cleaning systems before using it to heat the charge or make electricity. Specific energy use can go from 3,500+ kWh per tonne to 2,200–3,000 kWh per tonne just because of this recovery process. This process can save a lot of money over the course of a production cycle.

Overview of Traditional Smelting Systems for Ferromanganese Production

Blast Furnace Limitations

Early Ferromanganese production was controlled by blast furnaces, which used iron-making technology to reduce manganese rock. It turned out that these methods could work, but they had some major problems. A lot of coke was used—often more than 1.2 tonnes per tonne of alloy—which raised costs and caused environmental problems. The countercurrent flow design worked well for iron, but it had trouble with manganese's higher reduction temperatures. It often made alloys with high phosphorus contents (0.4 to 0.6%) that made them unsuitable for use in high-quality steel grades.

Another problem was that operations had to be flexible. To keep the temperature stable, blast furnaces need to be run all the time at almost constant output. This rigidity makes it harder to change production when demand changes or when the quality of the raw materials changes. Maintenance shutdowns are big jobs that usually take weeks to cool down, fix, and restart, which has a big effect on the amount of work that is done each year.

Conventional Electric Arc Furnaces

Standard Electric Arc Furnaces were better than blast technology in some ways, but they still had major problems. Open-top designs lost heat energy and made the workplace dangerous by releasing large amounts of heat and fumes. Electrode usage rates were high because of oxidation from being in the air. The quality of the products varied a lot depending on how skilled the operators were and how much they controlled the machines by hand. This made it hard to get stable metal chemistry from batch to batch.

These old-fashioned power methods also caused a lot of problems with following environmental rules. Particulate matter, sulphur compounds, and carbon gases that are released without being managed are getting in more and more trouble with the rules in the US and other developed markets. It's often not possible or cost-effective to retrofit older boilers with the right pollution control equipment. This forces facilities to replace the whole system instead of making small improvements.

​​​​​​​

Comparative Analysis: High-Carbon Ferromanganese Furnace vs Traditional Smelting Systems

Energy Consumption and Operating Costs

Modern burner technology is good for the economy because it saves a lot of energy. When coke production is taken into account, traditional blast furnaces use 4,000 to 5,000 kWh per tonne of Ferromanganese. Older open electric arc systems, on the other hand, need 3,200 to 3,800 kWh per tonne. Through better shielding, off-gas recovery, and optimised electrical factors, Advanced High Carbon Ferromanganese Furnaces reduce these numbers to 2,200–3,000 kWh per tonne.

These cuts in energy use directly lead to lower production costs. At industrial energy rates of $0.08 to $0.12 per kWh, which are normal in U.S. manufacturing areas, the 1,000+ kWh savings per tonne save $80-120 just in power costs. For a medium-sized plant that makes 50,000 tonnes of goods a year, this efficiency gain saves between $4 and $6 million a year, which is enough to cover the cost of buying new equipment and give it an acceptable payback time.

Modern methods lower the cost of more than just energy. With optimised designs, the amount of electrode used drops from 35–45 kg per tonne in standard systems to 15–25 kg per tonne. Better temperature control and less corrosive slag attack make refractories last longer. When automated controls take the place of human changes, fewer workers are needed to safely and effectively handle higher production rates.

Product Quality and Consistency

Differences in the behaviour of metals are just as convincing. With traditional methods, it's hard to keep tight chemical limits. For example, between production batches, the manganese content can change by up to 3%, and the carbon content can change by up to 1%. Because of these changes, steel mills have to constantly adjust the amount of iron they add and do quality checks more often. This makes planning production harder and raises the risk of steel types not meeting specifications.

Modern furnaces are very consistent thanks to very accurate process controls. The amount of manganese stays within ±1% of the goal range, and the amount of carbon stays within ±0.3%. The phosphorus percentage, which is an important quality factor, stays below 0.2%, while it usually ranges between 0.4% and 0.6% in blast furnace production. Because it is purer, it can be used in speciality steels and high-strength types where strict limits on impurities are needed.

The ability to adjust the factors of production also lets you make things fit the needs of individual customers. Higher carbon content (7.5–8.0%) is good for some steel uses because it deoxidises and adds carbon, but lower carbon content (6.5–7.0%) is needed to keep the steel from getting too carburised. Modern furnaces can handle these differences because they have recipe management systems that change the charge makeup, power input, and tapping processes to make sure that the alloy specs are exactly what the user wants.

Environmental and Safety Performance

Tools are increasingly chosen for environmental compliance. Traditional smelting releases 2.5–3.5 kg of CO₂ equivalent per kilogram of ferromanganese. Mostly from burning fossil fuels and uncollected process gases. Particulate emissions can exceed 100 mg/Nm³ without cleaning, and soluble manganese compounds raise workplace exposure concerns.

Modern burner designs plan for these issues. Greenhouse gas emissions decrease to 1.8-2.2 kg CO₂e per kg of product when the lid is closed, and gas is caught. A 30–40% rise. Advanced cleaning systems maintain particle levels below 10 mg/Nm³, meeting U.S. EPA criteria and preparing sites for future tighter regulations. Automated material handling decreases worker exposure to harmful dust and odours. It helps companies achieve OSHA and their own safety goals.

Increasing safety goes beyond reducing pollutants. Automatic fire control systems, power draw warnings, electrode breakage detection, and emergency stop processes are all part of modern installations. These features considerably reduce accidents compared to old procedures where humans worked by hand near high temperatures. Facility operators reduce insurance costs and lawsuit risk by improving safety records and following guidelines.

How to Choose the Right Ferromanganese Furnace for Your Business?

Assessing Production Requirements

Before choosing smelting tools, you should know what the process requires. Size depends mostly on production capability. Small 6,300 kVA machines may generate 20 tonnes of commodities per day, whereas huge 72,000 kVA systems can produce 200 tonnes or more. Matching High Carbon Ferromanganese Furnace capacity to appropriate demand projections prevents underutilisation and insufficient capacity. Insufficient capacity limits market opportunities, while underutilisation raises unit prices.

Raw material characteristics greatly impact tool parameters. Manganese ores with 45% or more manganese perform well in typical settings, although lower-grade ore fines may require specific feeding systems or pre-treatment instruments. If your plant intends to use manganese-containing dusts or slags, consider hollow electrode technology or modified charging methods. Talking to equipment makers about material requirements during basic engineering ensures your design will operate with your feedstock.

Evaluating Supplier Capabilities

Check the manufacturer and service system. For almost 11 years, Shaanxi Heyuanxin Metallurgical Electric Furnace Equipment Co., Ltd. has specialised in furnace systems. We have over 10 utility model patents and strict ISO quality, environmental, and occupational health requirements. Intellectual property, quality systems, and following the rules demonstrate the company's technological expertise and organisational development for large industrial activities.

Support after the sale distinguishes loyal partners from equipment dealers. In lost output and fixed expenditures, furnace breakdowns cost steel mills thousands of dollars every hour. The 24-hour on-site service response power solves this. Fast technical support, original parts, and competent service technicians help maintain production plans and decrease downtime. Check where their replacement parts are stored, if they have local experts, and if they offer remote tracking for preventative maintenance when comparing providers.

Customisation is crucial for places with particular demands or limits. Standard furnace designs work well for many uses, but site-specific factors, including restricted floor space, integrating existing infrastructure, employing particular metal grades, or meeting environmental permit criteria, necessitate adaptations. Manufacturers that provide full engineering services from design to completion are flexible enough to customise their equipment to your demands rather than forcing your organisation to suit inflexible standards.

Best Practices and Maintenance Tips for Optimal Furnace Performance

Preventive Maintenance Strategies

Disciplined repair programmes that include both planned chores and condition-based interventions are needed for furnaces to work reliably. Electrode systems need extra care—checking the state of the contact clamps, slipping mechanisms, and paste quality on a frequent basis stops electrodes from breaking, which stops production for long periods of time. Weekly thermal imaging scans find hot spots growing in furnace shells that show refractory erosion or metal penetration. This lets fixes happen during planned maintenance windows instead of having to be done quickly in an emergency.

Refractory management keeps costs in check and extends operating efforts. By keeping an eye on shell temperatures, taking samples of slag and analysing its chemistry, and checking inside the machine regularly, predictive models of lining wear rates can be made. This information helps decide when to replace the refractory, weighing the cost of relining too soon against the very high chance of failure from too much lining degradation. Monitoring the flow, managing the quality of the water, and finding leaks in the cooling water system are all important parts of keeping a High Carbon Ferromanganese Furnace safe and protecting the refractory.

Operational Excellence

Beyond mechanical upkeep, operating focus is what makes a furnace work at its best. Maintaining the right rock size, moisture level, and reductant ratios during charge preparation keeps the furnace conditions stable and the quality of the product high. Systematic logging of operational factors creates the data needed to optimise a process. It shows how input variables and output measures are related, which guides efforts to keep getting better.

Training programmes that make sure workers know the basics of the heater and how to respond properly are very helpful when things go wrong. If an operator is well-trained and can spot the first signs of something going wrong, they can fix it before small problems get worse. Regular refresher training on safety rules, what to do in an emergency, and new ways to improve processes keeps workers competent even as their experience levels change due to natural staff turnover.

Steel mills operating modern ferromanganese furnaces regularly show specific energy consumption improvements of 8–12% within the first two years, thanks to structured optimisation programmes. These improvements aren't due to changes in the equipment itself but to careful attention to operating details, such as reducing cycle times from tap to tap, fine-tuning electrical factors for different raw materials, and using best practices found through data analysis. The combination of reliable equipment and operational excellence delivers the performance metrics that justify initial investment decisions.

Conclusion

When you look at High Carbon Ferromanganese Furnaces next to old-fashioned mining systems, you can see that current technology is clearly better in every important way. Compared to blast furnaces and traditional Electric Arc Systems, advanced submerged arc furnaces save 30–40% of energy, produce more consistent products, produce less pollution, and make the workplace safer. These practical benefits directly lead to lower costs, better compliance with regulations, and more flexible output, all of which are very important in today's tough metal markets. When procurement managers and engineering teams look at different pieces of equipment, they should focus on energy-saving specs, the technical skills of the provider, and the total cost of ownership over the whole life of the equipment. This way, they can make investment decisions that will affect operations for decades to come.

FAQ

What distinguishes high-carbon from low-carbon ferromanganese furnaces?

The main difference is the amount of carbon in the finished alloy and the reduction method that was used. High Carbon Ferromanganese Furnaces (7–8% C) use carbon reductants to create metals suitable for deoxidising and alloying steel. Low Carbon Ferromanganese (0.5–1.5% C) needs extra steps of refinement, usually oxygen blowing or silicothermic reduction, to get rid of the extra carbon. As a result, furnace designs are different, and more complicated processing steps are needed for low-carbon output.

How do emissions compare between modern and traditional systems?

In comparison to conventional blast furnaces and open electric arc systems, modern furnaces with closed-top designs and gas capture systems emit 30–40% less greenhouse gases. Particulate emissions go from more than 100 mg/Nm³ to less than 10 mg/Nm³ thanks to new cleaning technology. These changes make it easier to follow the stricter U.S. EPA rules while lowering exposure to the carbon tax and improving green ratings.

Can ferromanganese furnaces be customised for specific production requirements?

Of course. Reputable manufacturers offer a wide range of customisation options for their High Carbon Ferromanganese Furnaces to meet specific needs, such as capacity requirements (6,300–72,000 kVA), raw material characteristics, site constraints, and special alloy specifications. Custom engineering includes designing electrode systems, refractory layouts, charging systems, ways to handle off-gas, and setting control systems so they work the way the business needs them to.

Partner with Shaanxi Heyuan for Advanced Ferromanganese Production Solutions

High Carbon Ferromanganese Furnace technology has been tried and tested for over 11 years by Shaanxi Heyuan New Metallurgical Electric Furnace Equipment Co., Ltd. We work with metallurgical plants and steel mills that need reliable solutions. As one of the biggest companies in China that makes metallurgical equipment, we offer full turnkey solutions, from the initial planning phase to installation and ongoing expert support. Our furnace systems get manganese levels of at least 75%, carbon levels of 7–8%, and energy savings of up to 95%. These specs have been proven at sites around the world that produce steel, alloys, and other metals for special uses. We can make equipment that exactly fits your needs, with capacities ranging from 6,300kVA to 72,000kVA and production rates ranging from 20 to 200 tonnes per day. You can email our expert team at sxhyyj606@163.com or visit hyyjfurnace-supply.com to talk about how our patented technology and full service options can help you reach your output goals with equipment that is designed to be reliable, efficient, and compliant.
