Furnace Storage Silo: How to Choose the Right Design

Choosing the right furnace storage silo design is one of the most consequential decisions a metallurgical plant can make. A well-matched silo keeps raw materials—pellets, coke, ferroalloy additives, and ores—flowing to the furnace at the correct rate, stabilizing the smelting rhythm and cutting unplanned downtime. Choose the wrong design, and you face bridging, thermal damage, and costly production gaps. This guide walks through every factor that matters: design principles, selection criteria, material comparisons, maintenance standards, and supplier evaluation, giving procurement teams and plant engineers a clear path to the right choice.

​​​​​​​

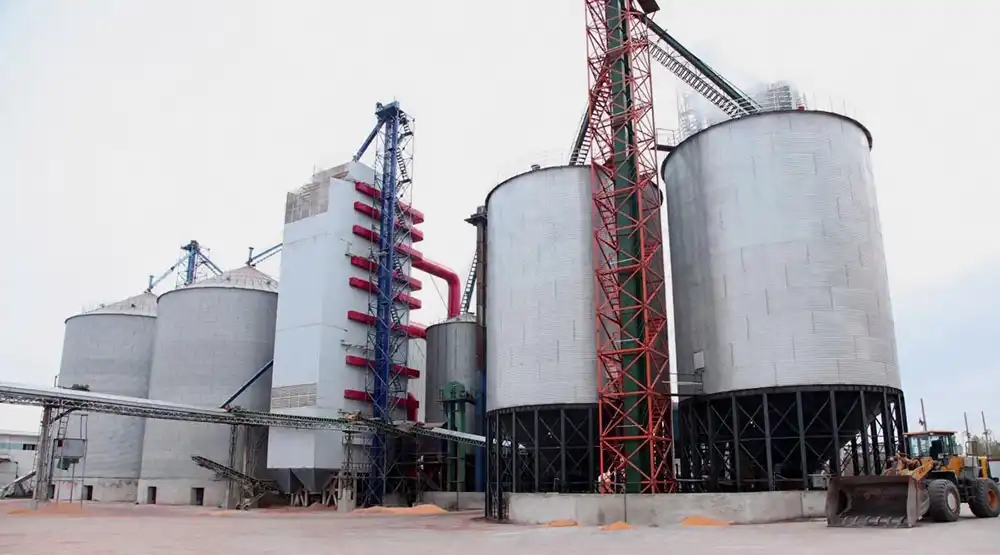

Understanding Furnace Storage Silos: Basics and Core Design Principles

A furnace storage silo is a strong middle containment box that holds large amounts of feedstock between the point where raw materials are handled and the point where the furnace is charged. It keeps production going by separating the delivery schedule from the smelting cycle and working as a buffer.

Structural Material Options

Carbon steel (ASTM A36) and stainless steel (304/316) are the two main building materials. For large-scale builds, carbon steel is a cost-effective choice for places with a lot of traffic and low corrosion. Stainless steel doesn't react chemically with slags that are rough or additives that are wet. Heat-resistant alloy steel or ceramic-lined shells are used for direct placement next to a furnace to handle radiated heat up to 1,500°C.

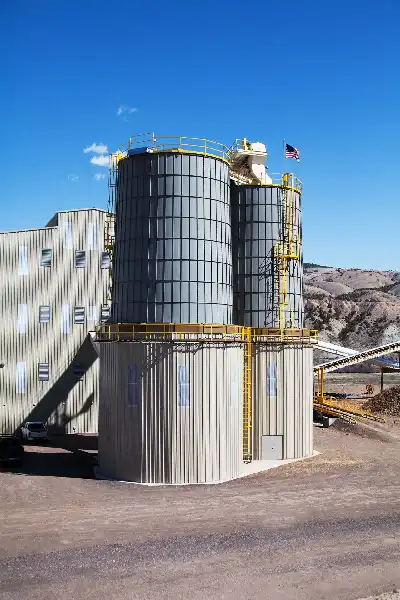

Silo Types and Configurations

Different plant layouts can use all four configurations. Vertical cylinder bunkers pack the most stuff into the smallest space. The mass-flow discharge is helped by hopper-bottom furnace storage silo units. Bunker-style plans spread the weight over more space in the bays. Hybrid models have raised cylindrical bodies and steep-angle hoppers (60°–75°) for mass-flow FIFO material movement. This stops material from separating, which is important for maintaining consistent batch chemistry in metallurgy.

Feeding and Discharge Systems

Choosing the right discharge method has a direct effect on the efficiency of production. Screw conveyors, vibratory feeders, and belt feeders are all good for different types of materials. Rat-holing and bridging are not possible with anti-blocking designs like air guns and bin activators. These work best with sticky or wet materials like damp coal or fine ores. The size of the discharge port (φ300–φ800 mm) should fit the size of the pump downstream to keep the flow going.

Core Criteria for Choosing the Right Furnace Storage Silo Design

Not every plant is limited in the same way. Think about the following things carefully before choosing a unit:

Material Characteristics and Temperature Range

The lining specifications and hopper geometry are based on the material's bulk density, moisture content, particle size, and abrasiveness. A refractory lining thickness of 100–300 mm is normal for temperatures up to 1,500°C. Iron ore or glass cullet are examples of high-abrasion inputs that need Hardox® wear plates or chromium carbide overlay panels to keep the shell's integrity after three years of use.

Capacity Sizing and Space Constraints

The battery should be able to hold enough power for at least one full charge cycle plus a safety margin. From 5 m³ to 50 m³, small induction furnaces to large electric arc furnaces (EAF) with chamber diameters of φ2–10 m can fit. When floor space is limited, a small vertical design with a reinforced skirt base lets it be installed inside bay structures that are already there, so the facility doesn't have to be expanded.

Automation, Cost, and Compliance Balance

Real-time feed-rate monitoring and automated level sensors cut down on labor costs and stop overcharging. But technology costs more in terms of money. Compare this to the amount of production: high-throughput EAF operations can afford automated systems just because they cut down on downtime. All furnace storage silo designs must follow the rules set by EN 1090 for structure construction, ASME Section VIII for pressure variations, and NFPA 68 for explosion venting for combustible dust classes.

Comparing Furnace Storage Silos with Alternative Storage Solutions

Some plants consider open bunkers, ground hoppers, or direct-feed bins as lower-cost alternatives. Each option has trade-offs worth examining closely.

Here is how the primary options compare across the most important operational dimensions:

• Open bunkers offer low capital cost and easy access for maintenance, but they expose materials to atmospheric moisture, generate high fugitive dust emissions, and provide no thermal protection—making them unsuitable for pre-heated or heat-sensitive feedstocks adjacent to high-temperature furnaces.
• Ground-level hoppers reduce structural load on building frames and allow gravity discharge, but they occupy significant floor area, create flow consistency challenges for fine or cohesive materials, and complicate integration with automated pneumatic conveying systems that demand enclosed, pressurized paths.
• Purpose-built furnace storage silos with engineered hopper geometry, sealed discharge, refractory lining, and integrated dust control solve the feed interruption, segregation, and safety issues that open alternatives cannot address—particularly in ATEX/NFPA-regulated environments handling coal fines or biomass pellets.

The choice ultimately depends on material type, throughput demand, and regulatory context. For continuous metallurgical operations handling abrasive or thermally sensitive materials, a purpose-built silo is consistently the lower total-cost option over a five-year production horizon.

​​​​​​​

Maintenance, Safety, and Installation: Ensuring Long-Term Performance and Compliance

Structured maintenance, not reactive repair, is what makes something last a long time.

Routine Inspection and Preventive Care

Every six months, an outside visual check is done to look for surface corrosion, loose anchor bolts, and changes in the structure. Ultrasonic wall thickness testing done once a year in high-wear hopper zones checks how fast liners are wearing out and alerts the operator to the need for replacement before the structure is compromised. The best practice in the business is to check the stability of the internal refractory lining every year after 12 months of use at temperatures above 1,200°C.

Safety Compliance and Environmental Standards

Local building codes and international fabrication standards must be met for structural safety. NFPA 68-compliant explosion relief panels and reverse-jet dust catchers must be installed on the roofs of furnace storage silo units that store flammable dusts. With flange-mounted installations, these features can be added to existing units without having to completely rebuild them. This protects operators and keeps regulatory standing.

Installation Phases and Lead Times

Installing starts with evaluating the site, then preparing the base, building the structure, installing the refractory lining, integrating the feeding system, and finally testing the system to make sure it works. Lead times for custom units are usually between 8 and 16 weeks, but they depend on the capacity and lining requirements. Getting the manufacturer involved early in the project avoids problems with the plan and makes sure that the unit is ready to be directly connected to the current furnace control systems when it comes.

Procurement and Brand Trust: How to Buy and Whom to Trust

The process of choosing a supplier should be as careful as the process of choosing equipment.

Certifications and Quality Control

Some quality signs that have been checked are ISO 9001 certification for quality management, ISO 14001 certification for environmental management, and proof that key seam welds have been inspected with NDT (UT or RT). Companies that have utility model patents on burner feeding systems show that their practical engineering skills go beyond making simple things. Before you place an order, ask for records of the weld inspection and Discrete Element Method (DEM) flow simulations for unique designs.

Procurement Options and After-Sales Support

New custom units are the best fit for certain production parameters, but they take longer to make. Used or refurbished silos lower the initial cost for buffer positions that aren't critical, but they need to be structurally inspected by a third party. For long-term dependability, a provider that offers replacement services for refractory materials, help with starting, and written after-sales response procedures lowers the total cost of ownership by a large amount over the lifespan of the equipment.

Proven Track Record

A supplier with more than 400 installations in metallurgical plants around the world and more than 11 years of direct experience in the field is a good source of information. Before making a commitment to a provider, ask for case studies from similar furnace types, such as an EAF, a ladle furnace (LF), or a buried arc furnace.

Conclusion

To choose the best material storage system for your furnace line, you need to make sure that the design standards match the features of the materials, the temperature requirements, the layout of the space, and the rules and regulations in place. Different types of vertical silos, hoppers, and hybrid designs, including furnace storage silo systems, are all useful for different tasks, and there isn't a single solution that works for all plants. The important factors—specification of the refractory lining, discharge shape, capacity range, and amount of automation—must be looked at as a whole, not separately. When procurement teams work with an experienced manufacturer that offers custom engineering, certified fabrication, and support after the equipment has been installed, they can be sure that it will work reliably for the whole time it is in use.

FAQ

How do I calculate the right storage capacity for my operation?

Capacity should cover at least one full charging cycle plus a 20–30% operational buffer. Multiply your furnace's per-charge material volume by the number of charges per shift, then add the buffer. For EAF operations, capacities between 10 m³ and 30 m³ typically cover continuous single-shift production without mid-shift reloading interruptions.

How do I prevent material bridging in a silo handling moist or fine materials?

Mass-flow hopper geometry combined with bin activators or strategically positioned air cannons breaks arch formation before it interrupts discharge. This approach works for coal fines, damp additives, and fine ores without compacting the material or degrading particle size distribution.

What are the key safety requirements for combustible dust storage?

Silos storing coal, biomass, or other combustible fines must meet NFPA 68 explosion venting requirements. Install reverse-jet dust collectors on the roof vent, spark detection systems at fill inlets, and inert gas injection capability. Existing silos can be retrofit-upgraded to meet these standards.

How long does a refractory lining last at high operating temperatures?

With proper material selection and operating discipline, refractory linings at temperatures up to 1,500°C deliver service life exceeding three years. Annual inspection and timely patch repairs extend this further and prevent unplanned shutdowns from lining failure.

Partner with Shaanxi Heyuan — Your Trusted Furnace Storage Silo Manufacturer

Shaanxi Heyuan New Metallurgical Electric Furnace Equipment Co., Ltd. has been an engineering company for more than 11 years and brings that experience to every furnace storage silo project. Our systems work with EAF, LF, and submerged arc furnace lines directly because they can handle capacities from 5 to 50 m³, temperatures up to 1,500°C, and full custom design support. Get a quote or product catalog from our technical team right away. You can email us at sxhyyj606@163.com or go to hyyjfurnace-supply.com.

References

1. Carson, J. W., & Marinelli, J. (1994). Characterize Bulk Solids to Ensure Smooth Flow. Chemical Engineering Progress.

2. Schulze, D. (2008). Powders and Bulk Solids: Behavior, Characterization, Storage and Flow. Springer.

3. NFPA 68: Standard on Explosion Protection by Deflagration Venting. (2018). National Fire Protection Association.

4. EN 1090-2: Execution of Steel Structures and Aluminium Structures. (2018). European Committee for Standardization (CEN).

5. Jenike, A. W. (1964). Storage and Flow of Solids. Bulletin No. 123, Utah Engineering Experiment Station, University of Utah.

6. Roberts, A. W. (2001). Particle Technology — Storage (Silos/Hoppers), Conveying and Applications. TUNRA Bulk Solids, University of Newcastle.
