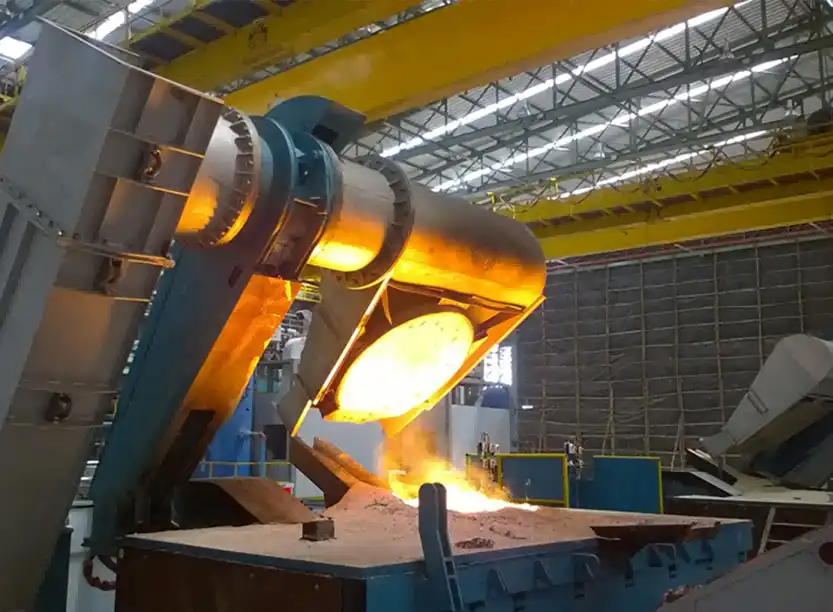

Electrotherm Induction Furnace: A Guide to Smarter Melting

When metallurgical plants and steel mills face mounting pressure to increase efficiency while reducing energy costs, many turn to advanced melting technologies. The Electrotherm Induction Furnace represents a transformative solution that addresses these challenges head-on, leveraging electromagnetic principles to deliver precise, efficient, and environmentally compliant metal melting for steel production, foundry operations, and specialty alloy manufacturing.

​​​​​​​

Understanding Electrotherm Induction Furnace Technology

Modern induction heating is very different from how it was used in the past. Induction heating is based on electromagnetic induction, which is when an alternating current flows through a copper coil and creates a magnetic field. This field causes eddy currents to flow through conductive materials, which heats the metal itself.

How Induction Heating Transforms Metal Melting

Induction systems heat metal from the inside, while regular furnaces get their heat from outside sources. The copper coil is the main winding of the transformer, and the metal charge is the secondary circuit. This system gets rid of the problems with temperature fluctuations that come with resistance or combustion heating. When you put scrap steel or new metal into the crucible, the electromagnetic field goes through it and creates localized currents that heat the metal by making it resist the field. This device makes sure that the temperature is the same all the way through the melt, so there are no cold spots that lower the quality of the material.

Our systems at Shaanxi Heyuan Metallurgy Electric Furnace Equipment Co., Ltd. can work in temperatures ranging from room temperature to 1800°C, so they can meet a wide range of metallurgical needs. The power ranges from 10kW to 1000kW, so it can be used in a variety of settings, from small-batch specialty processes to high-volume production lines. The accuracy of the temperature is ±1°C, which is very important for making sure that the metallurgical properties of finished products stay the same [2].

Critical Components Ensuring Reliable Performance

Several engineered elements are built into the furnace layout. Oxygen-free copper coils with high conductivity can handle a lot of electrical and heat stress and still have low resistance losses. Water-cooling systems move through these loops to get rid of the heat that is made during operation and stop the materials from breaking down. The refractory covering, which is usually silica-based ramming mass for steel uses, keeps the coil assembly cool while holding molten metal at very high temperatures. Power supply units with IGBT or thyristor technology change power from the grid to the right frequencies, which can be anywhere from 50Hz to several kilohertz based on the size of the charge and the properties of the material.

Magnetic shunts made of silicon steel laminations keep the electromagnetic field in the working area, which keeps structural parts from getting too hot. Controlled pouring is possible with the tipping device, and a safety feature keeps the mixture from spilling when it is transferred to ladles or molds. Programmable logic controllers are used in modern systems to handle heating profiles, keep an eye on working factors, and give workers diagnostic input.

Energy Efficiency Meeting Environmental Standards

With a thermal efficiency of over 82%, induction technology is better than arc furnaces, Electrotherm Induction Furnaces, and other fuel-fired options. This performance directly leads to lower kWh use per ton of processed material, which lowers operational costs and supports efforts to cut carbon emissions. Since there are no combustion leftovers, there is no need to clean the flue gas, which makes it easier to follow the rules for the environment, which are getting stricter. When facilities use induction melting, the air quality in the workplace gets better because workers are exposed to fewer particles and combustion emissions.

Our ways of making things are in line with ISO standards for quality management, environmental management licenses, and health and safety rules at work. These certificates give you peace of mind that the equipment meets international safety standards and helps your company reach its sustainability goals.

Comparing Electrotherm Induction Furnaces with Alternative Melting Solutions

When procurement teams look at melting technologies, they have a number of options, and each one works in a different way. To make smart decisions about capital investments, you need to understand these differences.

Performance Metrics Across Melting Technologies

Large-scale steel production is mostly done in arc furnaces, but the carbon pickup from the graphite electrodes makes them less suitable for low-carbon steel types. They produce a lot of electromagnetic radiation and noise, so the surroundings need to be controlled in other ways. Induction systems don't use any electrodes at all, so there is no risk of carbon contamination and the systems are quieter. The melting speed depends on the make-up of the charge and the power density, but induction furnaces are better for batch operations where temperature changes happen often because they can start up quickly.

Resistance furnaces use heating elements that wear out over time and need to be replaced on a regular basis. This causes downtime for maintenance. Their indirect heating method creates temperature differences that make it harder for the melt to be uniform. On the other hand, induction heating creates electromagnetic stirring, which is natural convection driven by the magnetic field. This constantly mixes the molten bath, making sure that the chemicals are all the same without using mechanical agitation.

Traditional cupolas and crucible furnaces that use fuel have lower initial costs, but they use less than 40% of the energy they produce, so they use a lot more energy per ton of output. Equipment for controlling emissions makes things more complicated and costs more, and when combustion isn't stable, it changes the process in ways that affect the regularity of the result.

Total Cost of Ownership Analysis

The price of acquisition is one factor that affects the choice, but over the life of the tools, operational costs often outweigh the initial investment. The main ongoing cost of melting operations is the energy used. With average energy costs of $0.07 to $0.12 per kWh in U.S. industrial markets, the difference in efficiency between 82% thermal performance and traditional 35–40% efficiency grows a lot over millions of pounds of production each year.

Different technologies have very different maintenance needs. Electrode usage, refractory refill frequency, and maintenance of the emission control system all cost money over and over again. When used correctly, induction coils can last more than five years, and refractory campaigns can last anywhere from twenty to fifty heats, depending on the materials used for the charge and how they are used. The flexible design makes it easy to change parts without taking the whole system apart. This cuts down on the time needed for repairs and the time that production is stopped.

Another economic factor is the freedom in how scrap is used. Different types of charge materials, like returns, turnings, and mixed scrap, don't affect the quality of the melt in induction furnaces. This flexibility lowers the cost of raw materials compared to processes that need specific inputs.

Procurement Guide for Electrotherm Induction Furnaces

To get the right equipment, you need to know about both the technical needs and the business concerns. This road map helps people who work in procurement make choices and make purchases.

Defining Specifications for Your Application

System size is based on how much something can produce. Figure out how much you want to produce each hour, how much you need to produce each day, and what batch size you'd like. The type of material affects how the furnace is set up. For example, melting iron needs different coil shapes and power levels than handling aluminum or copper. The operating temperature determines the type of barrier and the features of the power source. Your facility's limited space affects how you plan the footprint and how you place it.

In this case, customization is the norm, not the exception. Our engineering team looks at the building's infrastructure, such as the amount of electricity that can be used, the water supply for cooling, and the maximum weight that a structure can hold. We look at how you move your materials so that the setting of the Electrotherm Induction Furnace can work with charging systems and casting or pouring processes that happen later.

Budget Planning and Financial Structures

The price of equipment is based on its power rating, level of automation, and the peripherals that come with it. A 500kW system set up for melting steel usually costs between $180,000 and $320,000, but this can change depending on how complex the controls are and what other equipment is needed. Installation costs depend on how hard it is to commission and how much work needs to be done to prepare the site. Plan to spend 15 to 25 percent of the cost of the equipment on professional installation.

Different organizations can choose from different financing choices. If you buy something outright, you immediately own it, but if you lease it, you can save your money for other things. Term loans are available for buying mining equipment from equipment makers and specialized industrial lenders.

Warranty Coverage and After-Sales Support

Standard warranties cover flaws in the way the product was made and broken parts for 12 to 24 months after it has been put into use. Longer service contracts let you plan your repair budget more accurately by scheduling regular checks, replacing worn-out parts, and giving you priority technical help. It's important to know what parts are available because proprietary parts with long wait times make output vulnerable to stops.

At Shaanxi Heyuan, we keep a large stock of extra parts to help with quick delivery. Our promise to provide technical support 24 hours a day, 7 days a week means that help will get to your facility quickly, reducing unplanned downtime. As part of the installation service, the operator is trained on how to do things like start-up, regular maintenance, and fixing problems. This sharing of information helps your team get the most out of the tools for as long as it's in use.

Industrial Applications of Electrotherm Induction Furnaces

Induction technology is one of the most important parts of modern manufacturing because it can be used in a wide range of metalworking processes. Knowing the benefits that are special to an application helps you figure out where these systems offer the most value.

Steel Production and Foundry Operations

Integrated steel mills use induction furnaces to melt scrap metal and direct-reduced iron again and shape it into billets and ingots. Because there is no carbon contamination, it is possible to make low-carbon steel grades that are needed in the building and automobile markets. Foundries that make ductile iron castings need to keep the temperature just right to keep the magnesium from fading during the nodularization process. This keeps the mechanical properties of safety-critical parts like brake calipers and suspension parts constant.

Gray iron uses electrostatic stirring effects that spread graphite evenly, making it easier to work with and more stable in its shape. Investment casting companies like the clean melting environment because it keeps the superalloy chemistry in turbine parts and aircraft gear that would lose performance if it got dirty.

Non-Ferrous Metal Processing

When compared to reverberatory furnaces, aluminum casting facilities use rapid melting cycles and produce less dross. The inert atmosphere lowers oxidation losses, which raises the rate of yield. Copper alloy production, such as making bronze, brass, and special electrical grades, needs precise control over the alloy's composition. Induction heating makes this possible by distributing heat evenly and predicting how the alloy will melt.

Gold, silver, and platinum group metals need to be processed in a way that doesn't contaminate them. Because they don't use anode materials or burning products that could be harmful, induction systems are the best choice for high-value tasks.

Emerging Trends in Smart Manufacturing

Metallurgical operations can connect to data and analyze processes with the help of Industry 4.0. Modern controls for induction furnaces send operating data to factory execution systems, such as how much power is used, how the temperature changes, and how long each cycle takes. This data lets you plan maintenance ahead of time, look at quality correlations, and find ways to save energy. With remote testing, equipment makers can keep an eye on how well systems are working and spot problems before they become major problems.

Advances in automation cut down on the need for workers while also making things more consistent. Lights-out production is possible for repetitive tasks thanks to automated charging systems, robotic pouring mechanisms, and built-in spectroscopy analyzers. Because of these changes, induction melting is now at the cutting edge of metalworking innovation.

Why Choose Electrotherm: Brand Strength and Support Ecosystem

When choosing equipment, it's not just about the technical specs; the reputation of the manufacturer and the availability of support services are also important. These things affect how happy people are with their capital investments in the long term.

Heritage and Industry Leadership

Established makers have a lot of technical knowledge that has been built up over thousands of setups. Design changes that fix problems found in the field are added to current production, which lowers the risk for new buyers. Organizations that have certifications for things like ISO 9001 quality management, ISO 14001 environmental systems, and workplace health standards show that they are dedicated to doing their best. Validation by a third party gives clear proof that internal processes support consistent product quality.

Shaanxi Heyuanxin has more than ten utility model patents and ten computer software copyrights. This shows that burner design and control systems are always getting better. Our 3A credit rating and recognition as a provincially recognized business show that we are financially stable and have matured our operations. Since we started in 2008, we've sent more than 400 units to more than 15 countries, giving us experience with a wide range of working environments and uses.

Comprehensive Service Networks

The equipment is only one part of a good operation. Your employees will learn how to run operations through training programs that cover things like how to start up, do maintenance, and fix problems. On-site execution services make sure that everything is set up correctly and that it works well before handing over the keys. Maintenance contracts include regular checks, replacement of worn-out parts, and top-level technical support. This keeps small problems from turning into expensive breakdowns.

Research and development, manufacturing, installation, and ongoing expert support are all part of our integrated method. This vertical merger makes sure that everyone is responsible; instead of managing several vendors, you hire one company that is in charge of the whole project. Response times during operating problems are based on the geographic spread of the service. Our promise of 24-hour support means that technical help will get to you quickly, no matter what time zone you're in or what shift you're on.

Customer Validation and Market Reputation

Third-party reviews give an unbiased view of how well a maker does their job. Operating equipment for several years gives facilities information about how reliable it is, how much maintenance it needs, and how responsive the manufacturer is that isn't available during the sales process. Industry recommendations from engineering and metallurgical groups show that professional skills are respected by peers.

Metallurgical plants, steel mills, mining companies, foundries, and companies that make exotic alloys use our tools all over the world. This wide range of customers proves that the technology is flexible and that the manufacturer can meet a wide range of operational needs. By going to reference sites and seeing how the equipment works in real production settings, it is possible to judge its performance.

Conclusion

For years after installation, the melting technology you choose will affect how well your business runs, the quality of your products, and your environmental compliance. Electrotherm Induction Furnace has clear benefits, including using less energy (over 82%), keeping the temperature stable (within ±1°C), being clean (no burning fumes), and being able to work with both ferrous and non-ferrous materials. When buying, teams know about the basics of technology, how different suppliers perform, and what they can offer; they can make choices that are in line with the organization's goals. Putting money into tried-and-true equipment that is backed up by a full-service infrastructure reduces risk and increases return on capital. As market needs and government rules change, it becomes more important for metallurgical businesses to work with experienced makers to stay ahead of the competition.

FAQ

1. What distinguishes induction melting from arc furnace technology?

Instead of electric sparks, electromagnetic induction is used to heat metal in induction devices. This gets rid of the need for electrodes and the carbon pickup that comes with them. This makes induction perfect for low-carbon steel and metals that are sensitive to pollution. Arc furnaces are great for melting a lot of scrap, but they make more noise and electromagnetic pollution.

2. How does refractory lining life compare across furnace types?

Linings for induction furnaces usually last 20 to 50 heats for steel uses if they are taken care of properly. The actual life depends on the materials used to charge them, the temperature at which they are used, and how often they are heated and cooled. If you follow the right steps for sintering and managing slag, your refractory will last longer and cost less to maintain.

3. Can induction furnaces process high percentages of direct-reduced iron?

Modern versions allow DRI melting by changing the voltage and frequency, which controls the amount of slag and the way bridges form. Wider furnace bodies make it easier to remove slag, which solves problems that are unique to handling sponge iron.

4. What electrical infrastructure modifications do installations require?

The power source needs to change based on the size of the boiler. Taking into account power factor, a 500kW system usually needs 600–700 kVA of service capacity. To protect the quality of the grid, you might need equipment that filters out harmonics. Multi-pulse rectifiers can lower total harmonic distortion below 5%.

Partner with a Trusted Electrotherm Induction Furnace Manufacturer

Shaanxi Heyuan offers complete Electrotherm Induction Furnace melting solutions designed for tough work conditions in the metals industry. Our systems use tried-and-true electromagnetic technology and are custom-designed to meet your exact production needs, whether you're working with steel, aluminum, copper alloys, or other materials. Our equipment makes the best use of energy while keeping product quality constant. It has a thermal efficiency of over 82%, can control temperature within ±1°C, and has power ranrangingom 10kW to 1000kW. With full installation support, operator training, and technical support available 24 hours a day, 7 days a week, we make sure that your investment gives you the best return possible for as long as it works. Email our tech team at sxhyyj606@163.com to talk about your melting problems and find out how our solutions can help your building run better.
