Are Copper Contact Shoes Suitable for High-Current Applications?

Copper Contact Shoes have been widely used in many industries for their excellent performance in high-current situations. They are excellent at conducting electricity (usually more than 58 MS/m) and managing heat well, so they can handle loads with currents higher than 1000A without voltage drops or getting too hot. Modern Copper Contact Shoes are made from a Graphite Alloy Copper Formula that makes them four to five times more resistant to wear than standard products. This makes them reliable current collectors in harsh environments like electric arc furnaces, heavy-duty cranes, and metro systems where power must be sent continuously while being stressed mechanically.

​​​​​​​

Understanding Copper Contact Shoes and Their Core Properties

What Defines These Critical Electrical Components？

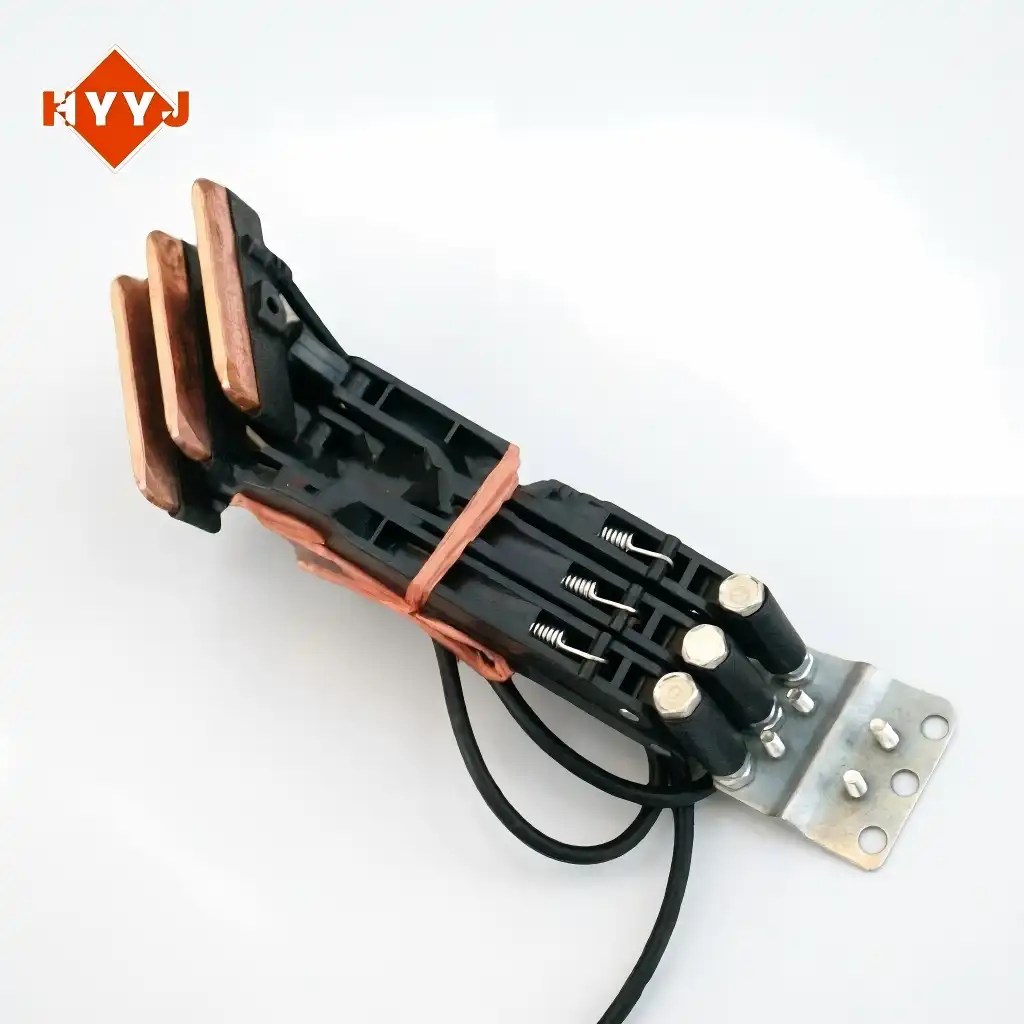

Copper Contact Shoes are the perfect way for stationary wires and moving tools to connect. These parts keep making electrical contact even when they're moving, which successfully transfers power while controlling friction and electrical arcing. In contrast to simple connectors, they are made to be sacrificed parts that protect the system first, while still allowing transmission in challenging conditions.

To make them work, you have to find the right balance between three important factors: how well they carry electricity, how long they last mechanically, and how well they let heat escape. High-purity copper alloys are the base. They are often made stronger by adding chromium or zirconium, which makes them harder without lowering their ability to carry current.

Material Science Behind Superior Performance

In high-amperage situations, the mechanical makeup directly affects performance. At Shaanxi Heyuanxin Metallurgical Electric Furnace Equipment Co., Ltd., we use high-purity copper metals that have conductivities of 58 MS/m in our production process. This standard ensures that resistance losses remain low while power flows. This means that we waste less energy and lower the operating temperature.

Another important feature is thermal conductivity. Copper naturally loses heat quickly (about 390 W/(m·K)), which keeps the area from getting too hot, which could damage both the Copper Contact Shoe and the conductor rail. This trait is especially useful when using an electric arc furnace, where the atmospheric temperature is already high enough to push the limits of the equipment.

It doesn't matter what the mechanical qualities are in a factory setting. These parts can handle the steady shaking, impact forces, and rough conditions found in metallurgical plants and mines because their tensile strength is over 250 MPa and their hardness is between 70 and 110 HB. The wear resistance is very high, which means that service times are longer and upkeep costs are much lower.

Electrical Principles in Current Transfer

Contact resistance is an important factor to consider when deciding if something is suitable for high-current uses. Good Copper Contact Shoes keep resistance below 0.1 milliohms, which keeps voltage drops across the surface to a minimum. This low resistance stops too much heat from being generated during current flow, which could cause failures or safety risks otherwise.

Arc resistance needs extra care in situations where connections and disconnections happen a lot. The copper alloys we use have better arc protection, which means they don't get surface pitting and corrosion, which usually speeds up the breakdown of parts. This quality makes the system last longer, even when it has to work under demanding conditions, like in crane systems and automatic production lines.

Performance Comparison: Copper Contact Shoes vs. Other Materials

Conductivity and Current Capacity Analysis

The choice of materials has a significant effect on how well a system works and how much it costs to own. Copper alloys usually get 80 to 100 per cent IACS (International Annealed Copper Standard) when electrical conductivity is measured, which makes them better than other options. Silver is slightly better at conducting electricity, but it costs a lot more, and the extra performance gain isn't usually worth the extra cost in most commercial settings.

Another option is aluminium copper contact shoes, which are less expensive but have many problems. Aluminium is only 61% as conductive as copper, so it needs bigger cross-sections to handle the same amount of power. This situation makes planning more difficult. The lower melting point of the material also makes it less useful in high-temperature areas where industrial equipment is used.

Durability Under Operating Stress

Different materials have completely unique patterns of mechanical wear. Our Graphite Alloy Copper Formula is four to five times more resistant to wear than normal products. This means that you will need to change it less often and have fewer production breaks. This benefit grows over the lifetime of the equipment, which is especially helpful in facilities that run all the time and where downtime directly affects income.

Carbon alternatives wear out faster when they're loaded with big things, so they need to be inspected and replaced more often, which makes repair teams' jobs harder. The softer material composition is particularly effective for keeping conductor rails from wearing down, but it shortens the life of high-stress uses like EOT cranes in steel mills or third-rail transit systems that are open to harsh weather.

Material hardness does two things: it makes things last and controls how much wear they get on each other. The hardness range of 70 to 110 HB in Copper Contact Shoes is just right. It keeps both the shoe and the conductor rail from breaking down too much.

Cost Considerations for Procurement Teams

The initial buying price is only one part of the total cost of owning. Carbon brushes may seem like a good deal, but they need to be replaced more often, which increases the cost of labour and makes managing supplies more difficult. Copper-based goods have longer service lives, which lowers these hidden costs and makes tools more available.

When you work with well-known makers, buying in bulk has extra benefits. While still being able to make changes as needed for specific uses, our facility offers low price structures for big orders. This gives purchasing teams the freedom to agree on high-quality parts without giving up on meeting the unique needs of each application.

Gains in operating efficiency often make up for higher material costs. Less electricity loss means that devices will use less energy over its entire life. When compared to less efficient options, high-conductivity Copper Contact Shoes help metallurgical plants that run electric arc furnaces around the clock save a lot of energy.

Installation and Maintenance Guidelines for Optimal Performance

Best Practices During Installation

How you install a component directly affects its performance and life. Contact pressure is the most important factor. Insufficient force increases contact resistance and encourages arcing, while excessive pressure speeds up mechanical wear. Calibration of spring-loaded devices should be done according to the manufacturer's instructions. This usually means keeping the force constant throughout the operating range of motion.

It's important not to forget about surface preparation. To get rid of rust, contamination, or leftover oils that get in the way of electrical contact, both the Copper Contact Shoes and the conductor rail need to be cleaned very well. Any rough spots on the surface should be fixed before placement to ensure that the current flows evenly across the touch area.

Precise alignment stops uneven wear patterns that shorten the life of parts. During the whole range of motion, the contact face should stay straight to the conductor rail. When things aren't lined up right, mechanical stress builds up in small touch areas, creating hot spots that speed up the breakdown of materials.

Dimensional testing makes sure that new systems will work with old ones. Our goods can be customised to fit the needs of particular equipment, but buyers should double-check important measures like mounting hole patterns, overall dimensions, and contact face geometry before installing. This care for detail keeps delays and extra work during commissions from costing a lot of money.

Inspection Protocols and Wear Indicators

Setting up regular review times keeps unexpected problems from happening during operation. For high-current uses, visual checks should be done once a month in addition to full checks every three months. These checks should keep track of the state of the contact face, looking for early signs of cracking, discolouration, which means the surface is too hot, or uneven wear patterns that mean there are problems with the alignment.

Wear limits must be followed very carefully. Most designs have markings or measurements that say the material needs to be replaced when it loses 40 to 50 per cent of its original thickness. If you keep operating past these limits, there is a chance of severe failure and damage to the conductor rails, which will be much more expensive to repair.

During surgery, thermal imaging provides doctors with useful information for diagnosis. Temperature differences across the contact surface show problems as they start to form before they fail. High temperatures may be caused by not enough contact pressure, contamination that makes the conductivity lower, or an imbalance that concentrates the flow of current.

Maintenance Schedules for Industrial Environments

Preventive repair plans make sure that the number of inspections is balanced with the needs of the business. Condition-based tracking, along with time-based intervals, is helpful for facilities that run ongoing processes. This method lets repair happen during planned downtimes and finds problems as they arise before they affect production.

How to lubricate things depends on the purpose and design. Certain types of Copper Contact Shoe setups work better with special conductive greases that lower friction without changing the electrical properties. Based on working conditions like current density, speed, and environmental factors, our expert team makes suggestions that are specific to each application.

Long-term dependability is supported by good documentation methods. Keeping careful records of what was found during inspections, when things need to be replaced, and any strange operations helps find trends that can be used to make decisions about purchases and improve maintenance. This information is very helpful when comparing different sources or products during the lifecycle management of equipment.

Procurement Insights: How to Source Contact Shoes for Industrial Use

Evaluating Manufacturers and Suppliers

To choose the right maker, you need to do more than just compare prices for Copper Contact Shoes. Getting certified shows that you are serious about quality management. For example, ISO 9001 certification means that the process is well controlled, and environmental and workplace health certifications mean that the factory is doing good work. Shaanxi Heyuanxin Metallurgical Electric Furnace Equipment Co., Ltd. has many certifications, such as environmental management systems and 3A-level credit business status. These give buying teams peace of mind when they are looking at supply chain partners.

Technical skill is important, especially when the requirements call for customisation. Companies that do their own research and development and have metallurgical experts on staff can change regular goods to fit the needs of specific applications. Eleven years of steel research and development at our plant, along with more than ten utility model patents, show that we can come up with new ideas that can help with complicated projects that need engineers to work together.

Lead times and production ability affect how projects are scheduled and how materials are managed. Procurement experts can make better plans when they know a manufacturer's production volume limits, current order backlog, and normal delivery times. Global transportation skills make sure that deliveries are made on time to places in the US and other countries.

After-sales support is what sets great sellers apart from average ones. Total value is increased by technical help during installation, help with debugging when problems appear during use, and guarantee terms that protect against early failures. Our dedication goes beyond the original sale; we provide ongoing expert support that keeps equipment working well throughout its operational lifetime.

Bulk Purchasing and Customisation Options

Buying in bulk has more benefits than just lowering the price per unit. By building connections with manufacturers, you can get priority scheduling for production, uniform quality through specialised production runs, and easier reordering processes that make running your business easier. Negotiated terms for multi-year supply deals are especially helpful for metallurgical plants and big EPC contractors.

Customisation solves problems that are unique to an application that standard goods might not fully solve. Our industrial freedom lets us make parts of different sizes, with metal compositions that work best in certain situations, and with special surface treatments that improve performance. This feature is useful for adding new features to old equipment or making new setups work as efficiently as possible.

Minimum order numbers depend on how complicated the product is and how much it can be customised. Standard configurations usually have smaller MOQs that are good for upkeep stock, while specialised types may need bigger pledges to cover the costs of tools and setup. Transparent communication during the quote process sets reasonable goals and keeps people from getting confused.

Regional Sourcing Considerations

How close things are to each other affects shipping times, handling costs, and how well people can talk to each other. Global sourcing gives you more choices and might lower costs, but these problems can be lessened by working with makers who already have established transportation networks. Our warehouse offers dependable foreign shipping to the US market, with paperwork and handling methods that make customs processing go more quickly.

Access to technical help depends on where the provider is located and how their business is set up. Time zone differences can make real-time troubleshooting harder, but communication methods that work for foreign customers are usually kept up to date by well-known makers.

Quality stability needs to be checked, no matter where the seller is located. By asking for material certifications, dimensional inspection records, and test samples, you can avoid getting goods that don't meet standards. This paperwork is usually given by established providers with quality management systems; this shows openness that helps build trust in long-term relationships.

Case Studies and Application Examples in High-Current Environments

Electric Arc Furnace Applications

One of the toughest places for electrical parts to work is in an electric arc kiln. During melting processes, the current needs go over 1000A, and the operating temperature usually goes over 300°C. Copper Contact Shoes that we make for these uses are very reliable even in the harshest conditions; they keep their conductivity and don't break down quickly at high temperatures, which would destroy less durable materials.

When steel companies switched from carbon-based goods to our Graphite Alloy Copper Formula products, their operations got better. They increased maintenance intervals by 200 to 300 per cent, which cut down on unexpected breaks and the production costs that came with them. The better resistance to wear was especially helpful in continuous casting operations, where breaks in the schedule cause production to fall behind.

Thermal management features stop systems from burning, which was a problem with older ones. Copper metals have a high thermal conductivity, which means they quickly lose heat. This keeps Copper Contact Shoe temperatures within safe working ranges, even when demand is high. Because of this, there is no need for emergency replacements, which used to mess up production plans and put a strain on support resources.

Heavy-Duty Crane Systems

In ships and metallurgical plants, EOT cranes have to work under a lot of mechanical stress while carrying heavy electricity loads. The Copper Contact Shoes that get power from the conductor rails have to deal with constant shaking, small bumps, and rough dust. To make products for these uses that are both strong and good at conducting electricity, we use alloys that don't break when they're hit with shocks.

Companies in the mining industry that use large-scale material handling systems have saved a lot of money by making parts last longer. In heavy-duty uses, carbon brushes had to be replaced every month, but Copper Contact Shoes could last up to three times as long. This decrease in the frequency of repair freed up technical staff to work on other important jobs and cut down on the need to keep spare parts on hand.

Graphite-enhanced copper metals make the Copper Contact Shoe and conductor rail less likely to stick together because they are self-lubricating. This feature keeps the wear on both parts to a minimum while ensuring smooth current flow and removing signal noise that can mess up control systems in automatic crane operations. After switching to these new materials, manufacturing sites say that their tracking systems are more accurate.

Transit System Implementations

Power collection systems for third rails in metro and heavy train networks need to be very reliable when they are outside. Extreme temperatures, rain, ice, and salt spray all put stress on the longevity of parts, but repair must always be available. Copper Contact Shoes used in these situations are resistant to rust and have a high level of mechanical strength, so they work well in all seasons.

Transit officials have found that lifecycle costs have gone down by more than 30% compared to the old material standards. Even though the original prices of the parts are higher than alternatives, the longer time between replacements, fewer calls for emergency repair, and higher system reliability make the investment well worth it. After system-wide changes, passenger service interruptions caused by broken Copper Contact Shoes dropped to almost nothing.

When two things hit at high speeds, the impact forces are higher as the speeds rise. Steel-reinforced copper alloy designs keep the structure strong while giving it the electrical properties it needs to move power efficiently. These unique combinations show that customisation is possible, meeting application-specific needs above and beyond what is offered by standard products.

Conclusion

Copper Contact Shoes are perfect for high-current uses in a wide range of industries, from heavy manufacturing to transit systems and mining equipment. Their excellent temperature management, high conductivity, and long mechanical life solve the main problems that come up in harsh electrical settings. Steel mills, mines, and train systems have shown that certain materials perform much better than others, especially when it comes to lowering costs over time and making sure the system works reliably. Copper-based solutions offer the technical performance and economic value that make them worth specifying in mission-critical power transfer roles, according to procurement teams that are looking at current collectors for high-amperage uses.

FAQ

Can copper contact shoes handle applications exceeding 1000A?

Copper Contact Shoes are designed to work with high currents and can easily handle loads over 1000A when they are placed correctly and are of the right size. With a conductivity of ≥58 MS/m and a contact resistance of less than 0.1 milliohms, the material can efficiently move current without producing too much heat. Heavy industrial cranes and electric arc burners often use copper-based current collectors to work at these power levels. Ensuring stable performance even at very high current levels requires good thermal management, which includes making sure there is enough contact area and cooling.

How frequently should contact shoes be inspected in high-current environments?

The number of times an inspection is done relies on the working conditions, such as the job cycle, current density, and environmental factors. For high-current uses, visual checks once a month are the bare minimum. More in-depth exams every three months are also recommended. Condition-based tracking that uses thermal imaging to find problems is helpful for equipment that is always under a lot of stress. When wear signs are reached or when the width drops by 40 to 50 per cent, whichever comes first, the item must be replaced.

What factors determine pricing for bulk orders?

Pricing arrangements for bulk purchases are affected by a number of factors. Material prices change with the copper market, but they are only one factor. The final price depends on the number of orders, the level of customization needed, the time frame for delivery, and the difficulty of the specifications. Manufacturers that offer savings for buying in bulk usually set different prices for different amounts. Long-term supply deals may make prices more competitive while also keeping the supply chain stable. By asking for thorough quotes that list all of these factors, you can accurately compare the prices of different providers.

Partner with Shaanxi Heyuan for Reliable Copper Contact Shoe Solutions

With their tried-and-true copper contact shoe technology, Shaanxi Heyuan New Metallurgical Electric Furnace Equipment Co., Ltd. is ready to meet your needs for high-current electrical parts. With eleven years of experience in metallic engineering, multiple patents, and a wide range of quality certifications, we are the company you can trust to make Copper Contact Shoes for tough industrial uses. For electric arc furnaces, ladle furnaces, mining tools, and heavy-duty crane systems, we can completely customise our services to meet the needs of their operators. Get in touch with our technical team at sxhyyj606@163.com to talk about your needs and find out how our Graphite Alloy Copper Formula goods offer four to five times better wear protection than normal options. You can look through our full catalogue of products at hyyjfurnace-supply.com and ask for a detailed quote for your next purchase.
