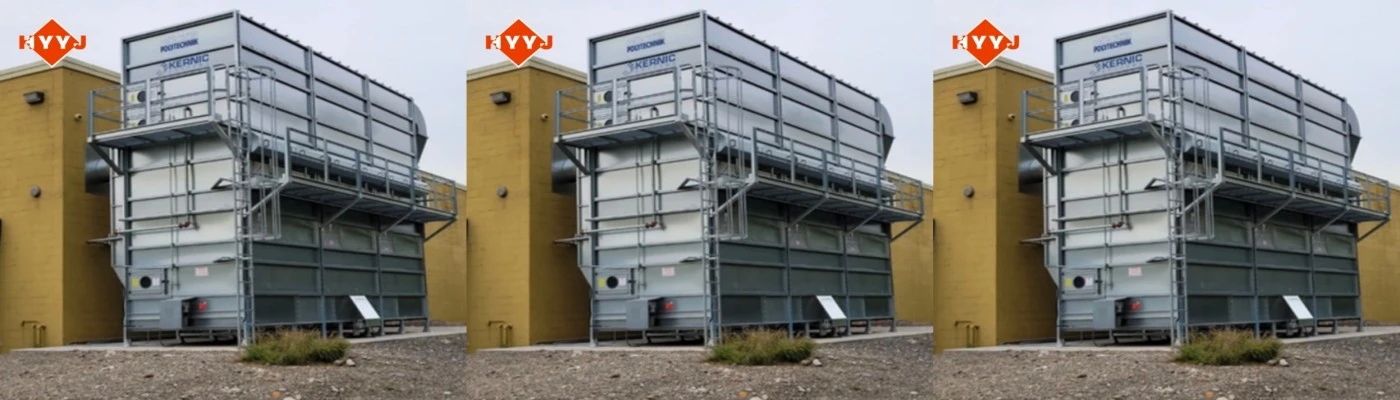

Negative Pressure Dust Collector
Negative Pressure Dust Collector - Advanced Industrial Air Filtration Solution
The enterprise-grade Negative Pressure Dust Collector from Shaanxi Heyuan is very good at controlling dust and has a 99.8% filter rate at temperatures ranging from -30°C to 300°C. Our system works with air flows ranging from 500m³/h to 120,000m³/h and negative pressures from -5kPa to -20kPa, which makes sure that the flow is contained and safe. With more than 400 sites around the world and more than 11 years of experience in the field of metallurgy, we offer safe dust collection systems that keep noise levels below 75dB and operating resistance fluctuations below 500Pa.
What Makes Our Dust Collection System Superior?
Your building needs dust control that works well and puts safety and efficiency first. The centrifugal fan is placed after the filter media in our negative pressure design. This creates a vacuum inside the collection case. If there is a hole in the housing, this design makes sure that it pulls in clean air instead of letting dirty air escape.
The method works great in tough manufacturing settings where complete containment is important. The fan lasts longer because the blade only touches clean, filtered air, so it doesn't have to deal with rough particles that can wear it down. This design concept makes sure that performance stays the same while lowering upkeep costs by a large amount.
Our adaptable filter system can be expanded in a way that fits your production needs. The method is easy to change to fit different production levels without having to make big changes to the infrastructure. The smart control system lets you watch and find problems from afar, which makes running your business and keeping up with servicing easier.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -30°C - 300°C |
| Processing Air Volume | 500m³/h - 120,000m³/h (Customizable) |
| Negative Pressure Range | -5kPa - -20kPa |
| Dust Filtration Efficiency | ≥99.8% |
| Running Resistance Fluctuation | ≤500Pa |
| Operating Noise | ≤75dB |
| Filter Material Options | Polyester / FMS / PTFE |
Industrial Applications and Benefits
Your operations demand dust control solutions that meet stringent safety and environmental standards. Our Negative Pressure Dust Collector handles diverse applications including boiler combustion dust, metal cutting fumes, and chemical reaction particulates.
Metal Fabrication and CNC Operations: The system effectively captures sub-micron metal fumes from laser cutting and plasma operations. You gain protection against hazardous metallic oxides and hexavalent chromium exposure while maintaining optimal air quality around operator workstations.
Chemical and Pharmaceutical Processing: For tablet pressing, granulation, and API handling, the negative pressure design prevents cross-contamination. Any seal degradation results in ambient air flowing into the unit, never allowing potent pharmaceutical dusts to escape into your facility.
Woodworking and Biomass Processing: When handling combustible dusts like sawdust and sanding flour, the system provides inherent safety advantages. The negative pressure configuration supports deflagration safety equipment installation, preventing flame propagation back into your workspace.
The stable negative pressure working conditions maintain consistent performance with minimal operating resistance fluctuation. You experience reliable dust removal efficiency that adapts to varying production demands while ensuring regulatory compliance.
Quality Assurance and Performance Standards
Our manufacturing process adheres to rigorous quality control protocols ensuring your investment delivers long-term reliability. Each unit undergoes comprehensive structural integrity testing, including vacuum decay testing to verify airtightness and zero fugitive emissions capability.
The filtration performance receives thorough verification through baseline differential pressure profiling and efficiency testing. Our systems meet NFPA 652/654 standards for combustible dust management and achieve MERV 15/16 filtration ratings for recirculation applications.
Fan and motor assemblies undergo vibration analysis per ISO 10816 standards, ensuring balanced operation that prevents harmonic resonance under negative pressure conditions. AMCA airflow measurements verify that CFM curves match your specific system design requirements.
Customization and Service Excellence
Your facility receives tailored solutions designed for your specific industrial requirements. We provide customized scheme design across diverse industries, ensuring optimal performance for your unique dust collection challenges. Standard configurations ship within 15-20 days, while custom designs require 30-45 days from order confirmation.
Our comprehensive service package includes free technical consultation and operation training. You receive timely after-sales maintenance support backed by our team of nearly 400 professionals, including 11 senior experts ensuring rapid service response.
The product integrates seamlessly into your existing operations with minimal disruption. Our installation team provides swift setup and commissioning, backed by superior quality standards and numerous positive customer reviews across global markets.
Filter material selection accommodates your specific dust characteristics through polyester, FMS, or PTFE options. This versatility ensures optimal performance regardless of your application requirements while maintaining the system's inherent safety advantages.
Contact Us
Ready to enhance your dust collection efficiency with a Negative Pressure Dust Collector? Contact our experts at sxhyyj606@163.com for customized solutions and technical consultation.
