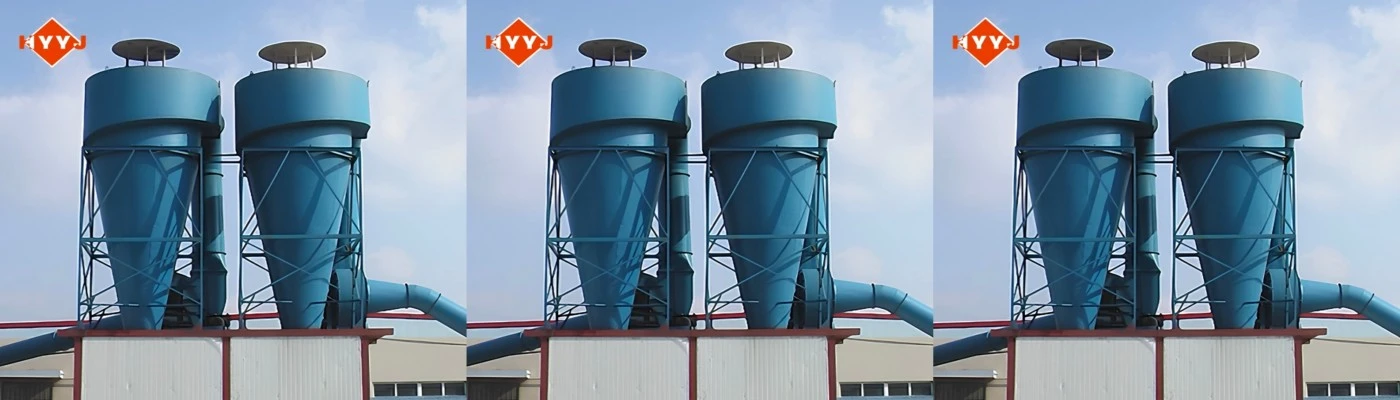

Arc Furnace Cyclone Dust Collector
Arc Furnace Cyclone Dust Collector - Professional Pre-Treatment Solution for EAF Systems
The Arc Furnace Cyclone Dust Collector from Shaanxi Heyuan is a high-performance pre-treatment system for electric arc furnaces. Our industrial cyclone system can handle air amounts from 3,000 to 150,000 m³/h and temperatures up to 400°C, getting rid of ≥85% of dust particles that are at least 10μm in size. This special gear lowers the load on filters further downstream, protects sparks from damaging the baghouse, and runs with very little pressure drop (≤800Pa) for the best energy economy. Our cyclone collectors are made from strong carbon steel or stainless steel and have a service life of at least 8 years with low upkeep costs.
Why Choose Our Cyclone Dust Collection System?
Your steelmaking operations face constant challenges with high-temperature emissions and abrasive particulates. Our cyclone dust collector solves these critical issues by serving as your first line of defense.
The centrifugal separation technology captures large particles before they reach your expensive filter bags. This protects your downstream equipment from thermal shock and physical damage.
You'll appreciate the simple design with zero moving parts. This means lower maintenance costs and higher uptime for your facility.
Key Applications in Metallurgical Operations
EAF Primary Emission Control
During melting and refining phases, your electric arc furnace generates massive volumes of superheated fume. Our collector installs immediately after water-cooled ducts to settle heavy slag particles and sparks.
Ferroalloy Production Support
In ferrosilicon or ferromanganese production, sticky silica fume creates challenges. The cyclone removes coarser, abrasive fractions, preventing premature clogging of fine-filtration media.
Scrap Processing Lines
Located at exhaust points of scrap conveyor systems, our equipment separates rust, metallic fines, and contaminants from air streams while facilitating metal recovery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | ≤400°C |
| Processing Air Volume | 3,000m³/h - 150,000m³/h (Customizable) |
| Dust Removal Efficiency | ≥85% (for particles ≥10μm) |
| Running Pressure Drop | ≤800Pa |
| Material Options | Carbon Steel / Stainless Steel |
| Inlet Velocity | 12m/s - 20m/s |
| Service Life | ≥8 Years |
Advanced Engineering Features
High-Temperature Resistance
Your operations demand equipment that withstands extreme conditions. Our cyclone collectors handle continuous exposure to temperatures up to 400°C without performance degradation.
Optimized Separation Efficiency
The engineered inlet design creates optimal gas velocity (12-20 m/s) for maximum centrifugal separation. This ensures consistent ≥85% collection efficiency for particles 10μm and larger.
Durable Construction Materials
Critical wear zones feature specialized linings resistant to abrasive steel dust. Optional stainless steel construction provides enhanced corrosion resistance for challenging flue gas conditions.
Operational Benefits You'll Experience
Your facility will benefit from reduced energy consumption due to low pressure drop design. The ≤800Pa operating pressure minimizes fan power requirements compared to alternative pre-treatment methods.
Maintenance costs stay low with our simple, robust design. No moving parts means fewer failure points and reduced downtime for repairs.
The Arc Furnace Cyclone Dust Collector extends your downstream filter life significantly. By removing spark-carrying particles and coarse dust, it prevents thermal damage to expensive filter bags.
Installation and Service Advantages
Custom Engineering Solutions
Every installation receives custom sizing and structural design based on your specific EAF model and flue gas parameters. This ensures optimal performance for your unique operating conditions.
Rapid Deployment
Our experienced team provides quick installation guidance and comprehensive technical support. Standard configurations ship within 15-20 days, while custom designs require 30-45 days from order confirmation.
Comprehensive Support
With nearly 400 professionals including 11 senior experts, we ensure rapid service response. Our 20+ years of metallurgical experience guarantees reliable technical support throughout your equipment lifecycle.
Quality Assurance and Reliability
Shaanxi Heyuan maintains strict manufacturing standards with three-system certifications. Our proven track record includes over 400 equipment deliveries worldwide to countries including South Korea, Kazakhstan, Iran, Vietnam, and others.
Each product undergoes rigorous quality testing before shipment. Air-tightness standards prevent false air ingress, maintaining system efficiency and reducing energy consumption.
Investment Value Proposition
Your cyclone dust collector investment pays dividends through multiple cost savings:
- Reduced filter bag replacement frequency
- Lower compressed air consumption for bag cleaning
- Decreased fan energy costs due to low pressure drop
- Minimal annual maintenance costs (≤2% of equipment price)
The compact footprint adapts to space-constrained steelmaking workshops without requiring major facility modifications.
When you choose our product, you're investing in proven technology backed by comprehensive support and engineering expertise.
Contact Us
Ready to optimize your EAF dust control system with the Arc Furnace Cyclone Dust Collector? Contact our experts at sxhyyj606@163.com for custom solutions.
