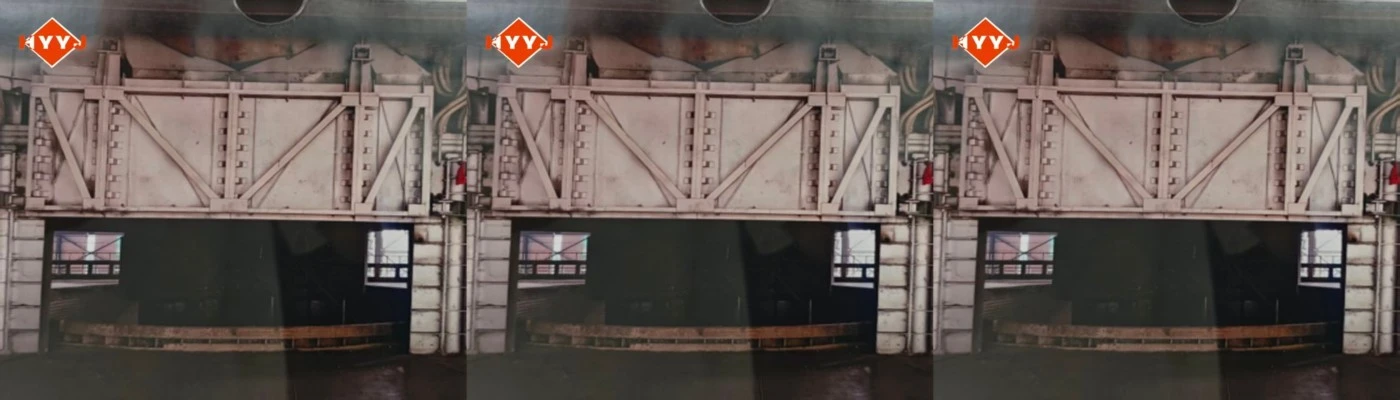

Furnace Front Exhaust System
Furnace Front Exhaust System - Professional Industrial Ventilation Solution
Your metalworking processes need careful control of the environment. With temperatures ranging from -10°C to 400°C, our Furnace Front Exhaust System provides enterprise-level performance and catch efficiency of 90% or more. With fan power ranging from 0.75kW to 160kW, this specialized ventilation system can handle airflow rates of 500m³/h to 50,000m³/h. Your building has automatic temperature control that keeps the noise level below 82dB and achieves a cooling range of ≥10°C. Our frequency conversion technology saves 15% or more of energy by adjusting the air flow intelligently based on the conditions of the heater in real time.
Why Your Facility Needs Professional Front Exhaust Ventilation?
It is very hard to do your job when you are near high-temperature metalworking tools. You have to deal with dangerous gas fumes, too much heat, and contaminated dust that put workers' safety and production efficiency at risk.
Standard air systems that hang from above don't do a good job of catching pollution where they come from. Even though they need a lot of airflow, they still let dangerous fumes into your desk.
Close-capture design in our front exhaust technology takes care of these issues. The method puts pressure points right where emissions happen, so pollutants are caught before they spread throughout your building.
Key Applications Across Industries
Steel and Iron Foundries
During scrap charging operations, your furnace generates intense smoke and hydrocarbon emissions. Our system captures these sudden bursts of particulate matter, protecting crane operators from exposure to toxic fumes.
Non-Ferrous Metal Processing
Copper, brass, and aluminum operations produce volatile metal oxides. The ventilation design prevents material buildup in ductwork while maintaining optimal velocity profiles for fire safety.
Precision Alloy Manufacturing
High-value alloy production requires careful temperature management. Our Furnace Front Exhaust System removes harmful emissions without extracting excessive heat from your melt surface.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -10°C to 400°C |
| Ventilation Volume | 500m³/h to 50,000m³/h |
| Fan Power | 0.75kW to 160kW |
| Cooling Range | ≥10°C |
| Operating Noise | ≤82dB |
| Fan Type | Frequency Conversion Centrifugal |
| Control Mode | Automatic + Manual |
Advanced Engineering Features
High-Efficiency Capture Technology
Your operations benefit from computational fluid dynamics optimization. We achieve capture velocities of 1.5-2.5 m/s at the source, ensuring over 90% collection efficiency even during violent metallurgical reactions.
Intelligent Temperature Management
Our system automatically adjusts airflow based on real-time conditions. Temperature sensors trigger increased ventilation during high-heat operations, then reduce power consumption during standby periods.
Durable Construction Materials
Critical components use high-grade carbon steel (Q235B) or stainless steel (304/316L) construction. These materials withstand process temperatures exceeding 500°C while maintaining structural integrity under thermal cycling.
Flexible Installation Design
The compact, low-profile design doesn't interfere with overhead crane operations. Side-suction positioning leaves furnace tops accessible for charging while maintaining continuous emission capture.
Energy-Efficient Operation
Frequency conversion technology delivers significant operational savings. Your facility reduces energy consumption by 15% or more through intelligent airflow adjustment.
Variable frequency drives automatically modulate fan speed based on actual ventilation needs. During low-intensity operations, the system reduces power consumption while maintaining adequate emission control.
Close-capture design requires substantially less airflow than traditional overhead systems. Lower CFM requirements mean reduced fan horsepower and decreased electrical costs for your entire dust collection network.
Comprehensive Service Support
Custom Engineering Solutions
Every installation receives customized design based on your specific furnace configuration and heat intensity requirements. Our engineering team analyzes your facility layout to optimize ventilation performance.
Complete Installation Service
We provide integrated design, equipment selection, installation supervision, and operator training. Your team receives comprehensive support from initial consultation through system commissioning.
Rapid Response Maintenance
Our technical support team delivers quick after-sales response for maintenance needs and fault diagnosis. Standard configurations ship within 15-20 days, while custom designs require 30-45 days from order confirmation.
Quality Assurance Standards
Structural Integrity Testing
All welded joints undergo dye penetrant or magnetic particle inspection to ensure crack-free construction that withstands thermal cycling stress.
Performance Verification
We conduct smoke bomb testing and static pressure verification to certify air leakage rates below 5%. This ensures maximum suction efficiency reaches your furnace mouth.
Mechanism Reliability
Rotation and positioning mechanisms undergo minimum 500-cycle testing to verify smooth operation without seizing or misalignment issues.
Our product represents proven technology backed by over 20 years of metallurgical industry experience. With more than 400 successful installations worldwide, you can trust our expertise for your critical ventilation needs.
Contact Us
Ready to improve your facility's air quality and safety with the Furnace Front Exhaust System? Contact our technical team at sxhyyj606@163.com for customized ventilation solutions.
