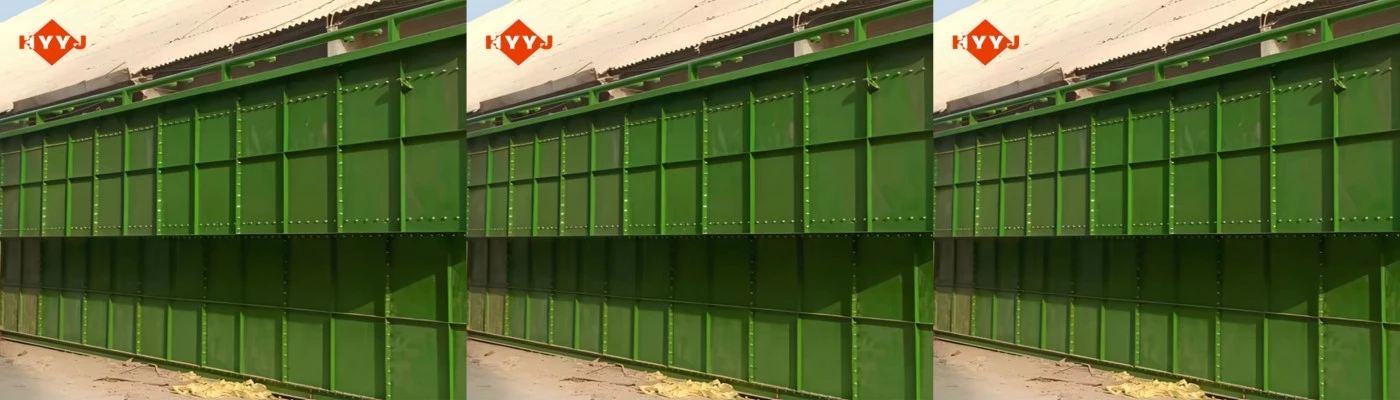

Arc Furnace Bag Filter Dust Collector
Arc Furnace Bag Filter Dust Collector - Professional Industrial Air Pollution Control Solution
Product Overview
Our Arc Furnace Bag Filter Dust Collector is a commercial-grade industrial air pollution control system that was made to work with Electric Arc Furnace steelmaking processes. This system has a very high dust collection rate of ≥99.95%. It can work at temperatures up to 260°C (instantaneous 300°C), handle air amounts from 5,000m³/h to 200,000m³/h, and filter areas from 100m² to 5,000m². The advanced design of Shaanxi Heyuan keeps pollution below 5mg/m³. This is supported by our team of 400 professionals and 11 top experts with more than 20 years of experience in the field of metals.
Why Choose Our Arc Furnace Bag Filter Dust Collector?
Your steel-making business has its own problems to solve. Flue gases that are very hot, metal particles, and strict environmental rules all call for a strong answer. Our dust collection system solves these problems with cutting-edge technology and a track record of dependability.
The system is able to handle huge changes in gas volume during the oxygen blowing and scrap charging stages. You get consistent results even when production rounds are very busy. This dependability means that processes won't stop and costs for downtime will go down.
Key Applications
Primary Steelmaking Operations
Your electric arc furnace produces intense heat and heavy dust loads. Our collector captures zinc, lead, and iron oxide particulates during melting, refining, and tapping processes. The system integrates seamlessly with your existing EAF setup.
Secondary Metallurgy
Ladle refining furnaces generate fine particulates and lime dust. Our filtration technology ensures clean working environments while maintaining alloy quality standards.
Ferroalloy Production
Submerged arc furnaces create sticky, silica-heavy fumes. Our PTFE-laminated filter bags prevent cake buildup and ensure reliable operation in ferro-silicon and ferro-chrome production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | ≤260°C (Instantaneous ≤300°C) |
| Processing Air Volume | 5,000m³/h - 200,000m³/h (Customizable) |
| Filtration Area | 100m² - 5,000m² |
| Dust Filtration Efficiency | ≥99.95% |
| Dust Emission Concentration | ≤5mg/m³ |
| Maximum Negative Pressure Resistance | ≤-25kPa |
| Filter Material | PTFE / FMS (High-Temperature Resistant) |
| Cleaning Method | Pulse-jet with automated control |
| Housing Material | Carbon steel Q235B/Q345B or Stainless steel |
Advanced Features and Benefits
High-Temperature Resistance
Your furnace operations generate extreme heat. Our PTFE and FMS filter materials withstand continuous exposure to high temperatures. The system includes efficient cooling devices and pre-dust removal systems to protect filter bags from thermal damage.
Superior Filtration Performance
Achieve emissions well below environmental standards. The Arc Furnace Bag Filter Dust Collector removes 99.95% of particulates, ensuring compliance with strict regulations while protecting worker health.
Intelligent Control Integration
The control system links directly with your electric arc furnace production schedule. Automated parameter adjustment adapts to intermittent dust emissions and varying production rhythms. This smart integration optimizes performance while reducing energy consumption.
Robust Construction
Heavy-gauge steel housing withstands extreme negative pressures up to -25kPa. Excellent sealing prevents dust leakage and false air ingress. Your investment delivers long-term reliability in demanding industrial environments.
Service Excellence
Custom Engineering Solutions
Every steelmaking operation has unique requirements. We design custom specifications and filtration schemes based on your EAF capacity and specific dust emission characteristics. This tailored approach ensures optimal performance for your facility.
Comprehensive Installation Support
Our experienced team handles on-site installation, commissioning, and operator training. You receive complete support from initial setup through full operational capability.
Long-Term Partnership
We provide ongoing supply of high-temperature filter bags and wearing parts. Our quick response after-sales service ensures continuous steelmaking operations without unexpected interruptions.
Delivery and Quality Assurance
Standard configurations ship within 15-20 days from order confirmation. Custom engineered solutions require 30-45 days to ensure precise manufacturing and quality control.
Shaanxi Heyuan holds metallurgical design qualifications and construction general contracting certifications. Our three-system certifications demonstrate commitment to quality excellence. With over 400 delivered furnace equipment sets worldwide, we bring proven expertise to your project.
The product represents cutting-edge technology backed by decades of metallurgical engineering experience. Your steelmaking operation deserves reliable, efficient dust collection that meets today's environmental standards while supporting productive operations.
Contact Us
Ready to enhance your steelmaking operations with Arc Furnace Bag Filter Dust Collector? Contact our experts at sxhyyj606@163.com for customized solutions and technical consultation.
