Silicon Manganese Furnace: Is It Essential for Modern Steelmaking?

In current steelmaking, the Silicon Manganese Furnace is an important part that can't be left out. This special submerged arc furnace makes silicon-manganese alloys that are needed to remove oxygen and mix metals together. These alloys make steel stronger, more flexible, and less likely to rust. It's almost impossible to get consistent steel quality without reliable ferroalloy production. This is why these furnaces are essential for integrated steel mills, foundries, and ferroalloy makers who want to stay ahead in today's tough metallurgical scene.

Understanding the Silicon Manganese Furnace and Its Role in Steelmaking

Core Operating Principles and Design Features

At temperatures above 1,600°C, electrical energy changes manganese ore, manganese-rich slag, and silica sources into useful ferroalloys in a Silicon Manganese Furnace. This process is called carbothermic reduction. The process depends on electrical resistance heating in the charge material and the formation of an arc at the tips of the electrodes. The three electrodes in this design make sure that the heat is spread evenly across the furnace hearth, which leads to even reduction processes and a stable alloy makeup.

Modern designs use closed-top layouts that collect carbon monoxide waste gases. These gases can be reused to make electricity or in nearby industrial processes. This new idea helps with two very important problems: lowering specific energy use and following strict environmental rules. Another important feature is the deep slag bath operation, which increases silicon output by keeping the temperature of the contact between the slag and reducing agents high. This makes sure that both manganese and silicon oxides are converted efficiently.

Energy Efficiency and Environmental Compliance

The amount of energy used directly affects the price of making ferroalloys. Power needs are usually between 3,800 and 4,200 kWh per tonne of metal, but the best way to use them relies on the quality of the raw materials, how reactive the coke is, and how well the power factors are kept up. When plants buy modern electrode control systems and smart furnace tracking, they can see a clear drop in the amount of power they use, which saves them a lot of money over the life of the furnace.

Environmental compliance has gone from being something that could be chosen to something that has to be done. The U.S. Environmental Protection Agency has strict rules about particulate matter emissions, which means that systems that gather dust and clean gases must work together. These environmental controls are built into modern furnaces from the start, so they are always in line without having to pay a lot of money for expensive upgrades. Water spray cooling systems keep the slag layers on the furnace walls cold. This extends the life of the refractory and stops thermal damage that could make environmental protection less safe.

Maintenance Protocols and Safety Standards

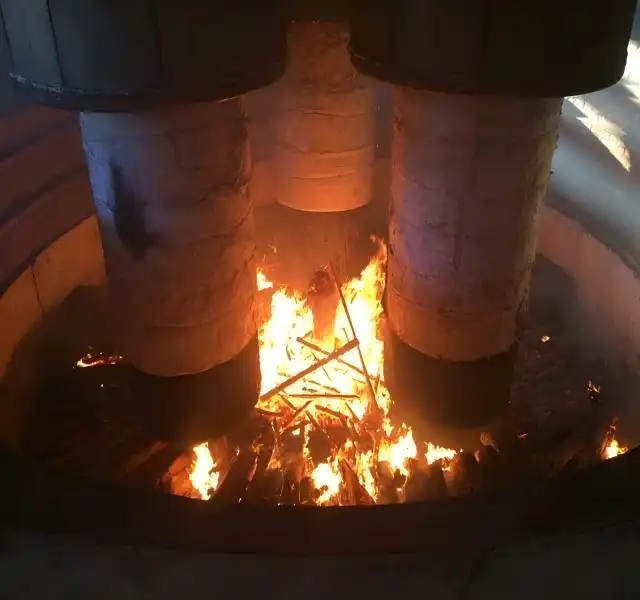

Maintaining a furnace regularly is important for making sure it works well. Electrode control is the most important part because when an electrode breaks, output stops right away and money is lost. Regular tests must be done on Søderberg electrode paste to see how it sinters and how dense it is, making sure that the rates of slipping and consumption are perfectly matched. This keeps the electrode from getting too hot and makes sure it's fully baked before it gets to the contact clamp.

Embedded thermocouples are used for refractory integrity tracking to find hot spots in the shell. This gives an early warning of carbon lining loss. High-basicity slag can't damage high-alumina bricks and advanced carbon blocks, but they still need to be inspected on a regular basis. As required by OSHA, safety rules must cover tap-hole operations, electricity dangers, and emergency shutdown procedures. These rules must also protect workers from the risks that come with high-temperature metalworking processes.

Comparative Analysis: Silicon Manganese Furnace vs Other Furnace Types

Silicon Manganese Furnace Versus Electric Arc Furnaces

Electric Arc Furnaces are the most common way to melt steel scrap, but they are not the same as tools used to melt ferroalloys. Through fast melting processes that usually finish in 45 to 90 minutes, EAFs are great at reusing scrap steel. But they can't do the complicated reduction chemistry needed to turn raw ores into silicon-manganese alloys.

The Silicon Manganese Furnace, on the other hand, works nonstop with short breaks for tapping. This keeps the temperature fixed, which is important for controlled reduction processes. While EAFs focus on being flexible and turning things around quickly, making silicomanganese requires high temperatures to stay steady and careful management of the slag's chemistry. When a plant needs to melt metal and make ferroalloys, it usually buys two different furnaces instead of trying to use one design for both, which would not work well in either case.

Comparing Submerged Arc Furnace Variants

In the submerged arc furnace group, units that make silicon-manganese are different from units that make ferrosilicon or calcium carbide. The electrical and refractory design has to be able to handle more slag and chemicals that are more active. The low-reactance secondary circuit design, which is also known as the "short net", makes the power factor and electricity performance better for silicomanganese chemistry.

The size of the production has a big effect on the choice of furnace. Transformers with powers between 6 MVA and over 60 MVA are used by a variety of market groups. Small businesses that make 80 to 150 tons of steel every day might choose 6,300 to 18,000 kVA units, while integrated steel mills that need 250 to 350 tons every day tend to choose 48,000 to 72,000 kVA systems. The initial capital investment changes based on the size of the unit, but bigger units usually use less energy and cost less per ton.

Cost-Effectiveness Across Production Scales

To figure out if something is cost-effective, you have to look at its total cost of ownership, not just its buying price. Often, the cost of installation, which includes foundations, electrical infrastructure, and other systems, is the same as or higher than the cost of the furnace itself. Ongoing operating costs include labour, electricity, electrode use, and fixes to the refractory.

Medium-sized sites usually find the best mix between spending money on equipment and being able to change how they run. A 25,000 to 33,000 kVA furnace has enough power to meet the needs of the local market while still being easy to keep. These mid-range units let owners change production rates based on what the market needs, without having to worry about the costs of oversized setups or the inefficiency of undersized equipment that is fighting to meet its contractual responsibilities.

​​​​​​​

Procurement Considerations for Silicon Manganese Furnaces

Evaluating Supplier Credentials and Support Infrastructure

If you are looking for ferroalloy processing tools, you should look at more than just price quotes from suppliers. Getting certified shows that you care about quality management and being good to the world. The ISO 9001 quality management certification shows that design and production are done in a planned way, and the ISO 14001 environmental certification shows that the company is in line with sustainability goals that are becoming more important to corporate buyers in the U.S.

After-sales support infrastructure is very important during setup and for as long as the Silicon Manganese Furnace is in use. Suppliers with full technical support, a stockpile of extra parts, and quick-responding service teams help keep downtime to a minimum when problems happen. Checking references with current customers can tell you a lot about how well a company really does in the real world, which marketing materials can't do.

At Shaanxi Heyuanxin Metallurgical Electric Furnace Equipment Co., Ltd., we have sold more than 400 furnace systems around the world since our company was founded in 2008. Our engineering team of 400 professionals, including 11 top experts, has a lot of experience making tools for making ferroalloys. We have ISO certifications for quality management, environmental management, and workplace health management systems. We also have 3A-level credit company status and complete approvals for product after-sales service. This mix of technical know-how and well-documented quality processes makes for a solid base for long-term relationships.

Balancing New Equipment Versus Used Furnace Options

Budget issues can make people think about buying used tools, especially when they don't have enough money to make new investments. Some risks come with buying a used furnace, such as not knowing how it was maintained in the past, having old control systems, and having refractory linings that need to be replaced right away. Another worry is environmental compliance, since older designs might not have built-in pollution control systems that meet current EPA guidelines.

New equipment has technology benefits that make operations run more smoothly and make sure that rules are followed. Modern electrode control systems reduce the amount of energy used, smart tracking shows real-time data on performance, and new refractory materials make the equipment last longer. When choosing between used and new equipment, you should compare the known specs and guarantee coverage of new setups with the hidden costs of updating old systems.

Customisation Capabilities and Project-Specific Requirements

Standard furnace designs work for most uses, but sometimes special production needs mean that they need to be changed. Shell diameters that range from 6 to 12 meters can be optimised for different types of alloys and production numbers. The configurations of the electrodes can be changed to match certain electrical properties, and the refractory packages can be made to fit the properties of the local raw materials and the predicted chemistry of the slag.

Our ability to customise meets these project-specific needs without putting delivery times at risk. As an engineering firm, we offer full services that include planning, production, installation, and testing. This all-in-one method makes sure that the new system works well with the old one, avoids the problems that come up with projects involving more than one source, and makes sure that everyone is responsible for their part of the project throughout its entire life. Our experience in a wide range of settings, from making steel and foundries to special facilities for making ferroalloys, helps us make customisation choices that improve performance for your unique working situation.

The Value Proposition: Why Invest in a Silicon Manganese Furnace?

Quantifiable Performance Improvements and ROI

When you buy modern ferroalloy production tools, you get a clear return on your investment in the form of higher efficiency, better alloy consistency, and lower energy use. When plants replace older technology with newer ones, they usually save 8 to 12 per cent on specific power use. This is a big deal because electricity costs 40 to 50 per cent of all production costs. Better methods for managing electrodes make them last 15 to 20 per cent longer, which further lowers the cost of consumables.

Alloy uniformity has a direct effect on the quality of steel that comes after it and lowers the cost of reworking. Modern control methods keep silicon and manganese ratios more closely controlled. This makes metals like SiMn65/17 that have exact amounts of phosphorus and sulphur below 0.1 per cent and 0.03 per cent, respectively. Because of this regularity, steel mills can improve their melting methods, which lowers overalloying and makes yield estimates more accurate.

Emerging Technologies and Future-Ready Capabilities

Automation is changing metallurgical processes all the time, and making ferroalloys is no different. Smart Silicon Manganese Furnace tracking systems get information about electrical factors, thermal profiles, and the makeup of off-gases in real time and send it to platforms that do predictive analytics. These systems find new problems before they cause unplanned shutdowns, plan repair for times when output isn't happening, and automatically find the best process parameters based on changes in the raw materials.

Carbon collection systems are on the verge of becoming fully developed. Current closed-furnace designs capture CO gas for energy use. However, next-generation systems may include the ability to separate and store carbon. When plants buy new equipment, they set themselves up to use new technologies through software changes and modular improvements instead of replacing all of their old equipment.

The trajectory toward Industry 4.0 connections demands tools that can combine data from different business systems. Modern platforms for controlling furnaces work with common industrial protocols, which let them connect to production execution systems, quality management databases, and tools for planning the supply chain. Because of this connectivity, ferroalloy production goes from being a separate batch process to being an integrated part of digitised industrial environments.

Strategic Advantages in Competitive Markets

When it comes to the steel and ferroalloy businesses, the market rewards operating flexibility and cost discipline. When prices go down, plants that have solid, efficient production tools can still make money even though their costs are higher. When providers are competing for business, the ability to make consistent-quality metals that meet strict customer requirements sets them apart.

Environmental performance has a bigger impact on both customers' decisions to buy and regulators' choices about issuing licences. Furnaces with advanced dust collection systems, closed-loop cooling circuits, and off-gas recovery make managers look good to lawmakers and customers who care about the environment. This is especially important as suppliers of steel to the building industry and automakers add sustainability standards to the way they buy steel.

Conclusion

If you look at the basic mechanical needs of making good steel, you can answer the question of whether a Silicon Manganese Furnace is necessary for modern steelmaking. These specialised ferroalloy production systems give steel mills the deoxidisers and alloying agents they need to make materials with the right qualities for use in manufacturing, building, and cars. When you invest in new furnace technology, you get measurable results in the form of lower environmental compliance costs, better energy economy, and more consistent alloys. As the steel industry moves toward more automation and sustainability, working with experienced equipment providers is the only way to get access to technologies that will give you a competitive edge for decades.

FAQ

What raw materials are required for silicon manganese production?

Manganese ore with the right amount of manganese, silica sources like quartzite, and metallurgical coke, which acts as both a reductant and an energy source, are the main raw materials. Fluxes like limestone change how basic the slag is to make the reduction process work best. The size of the raw materials has a big effect on how well the furnace works. For proper charge penetration and gas flow, crushed materials are usually between 5 and 50 millimetres.

How does maintenance affect the operational lifespan of these furnaces?

Regular maintenance directly increases the life of the furnace. Refractory linings that are well taken care of last five to ten years. Regular management of electrodes keeps them from breaking, which would mean instant loss of production. Using integrated thermocouples to check the stability of the refractory lets you fix problems before they become too big to fix. Controlled cooling keeps the layer of frozen slag in place, which saves the carbon brick from chemical wear and tear and greatly extends the campaign's life.

Can these furnaces be customised for specific production requirements?

Customisation takes into account differences in production size, alloy grades, and restrictions at the spot. Changing the diameter of the shell makes it more thermally efficient for different production amounts. Electrode configurations change based on the properties of the local power source. Refractory packages are designed based on the projected chemical makeup of the slag and the temperature of the water that can be used for cooling. This adaptability makes sure that the best performance is achieved in a wide range of situations while keeping standard parts that make it easier to keep track of spare parts and train support staff.

Partner with Shaanxi Heyuan for Advanced Silicon Manganese Furnace Solutions

To update your ferroalloy production, you need to work with a trusted Silicon Manganese Furnace provider that can offer both technical know-how and full support services. Heyuanxin has had more than ten years of experience in metallurgical research and development and has set up more than 400 furnaces around the world. Our equipment has a power range of 6,300 kVA to 72,000 kVA and can produce 80 to 350 tons of material every day. It also uses between 3,800 and 4,200 kWh of energy per tonne, which is the lowest in the business.

We build each system with advanced electrode control, smart tracking, and long-lasting refractory linings that are meant to keep working for a long time. We are committed to doing more than just delivering tools. We also offer full installation, commissioning, and long-term expert support. Whether you run an integrated steel mill, a foundry, or a specialised ferroalloy production plant, we can make sure that the solutions we offer are exactly what you need.

Connect with our engineering team to discuss your specific production goals. Contact us at sxhyyj606@163.com or visit hyyjfurnace-supply.com to explore our complete equipment portfolio. Discover how partnering with an experienced Silicon Manganese Furnace manufacturer enhances productivity, reduces operational costs, and positions your facility for sustained competitive advantage in evolving metallurgical markets.

References

1. Gasik, M. (2013). Handbook of Ferroalloys: Theory and Technology. Butterworth-Heinemann, Oxford.

2. Olsen, S.E., Tangstad, M., & Lindstad, T. (2007). Production of Manganese Ferroalloys. Tapir Academic Press, Trondheim.

3. Tangstad, M. (2013). "Manganese Ferroalloys Technology". In The Thirteenth International Ferroalloys Congress Efficient Technologies in Ferroalloy Industry, Almaty, Kazakhstan, pp. 89-103.

4. Shukhobodskiy, A.A., & Belousov, V.V. (2011). "Energy Efficiency in Submerged Arc Furnace Operations." Metallurgical and Mining Industry, Vol. 3, No. 7, pp. 25-31.

5. Eric, R.H. (2014). "The Physical Chemistry of High-Temperature Smelting Processes." Journal of the Southern African Institute of Mining and Metallurgy, Vol. 114, pp. 917-925.

6. Ishak, R., & Tangstad, M. (2019). "Reaction Mechanisms in Industrial Production of Silicon Manganese Alloys." Mining, Metallurgy & Exploration, Vol. 36, pp. 527-539.
