Furnace Dust Removal Chamber with Advanced Filtration Technology

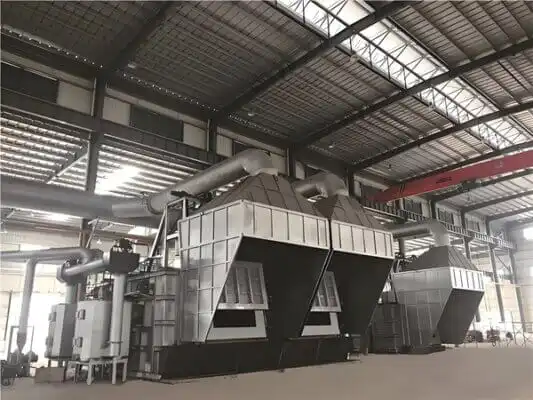

A Furnace Dust removal chamber represents a specialized containment system integrated directly with high-temperature industrial furnaces to intercept particulate emissions at their source. Unlike downstream filtration equipment positioned far from dust generation points, this chamber captures initial smelting and combustion fumes immediately, preventing diffusion throughout the facility. Advanced filtration technologies within these chambers achieve over 80% initial dust capture efficiency while withstanding temperatures reaching 1200°C. This approach drastically reduces the burden on secondary dust collection systems, protects downstream equipment from abrasive wear, and ensures compliance with stringent environmental regulations governing metallurgical and industrial operations.

​​​​​​​

Understanding Furnace Dust Removal Chambers and Their Functionality

What Distinguishes Advanced Filtration from Conventional Systems?

Filters are usually placed far away from sources of emissions in traditional methods of collecting dust. This lets particles spread across factory halls before they are caught. Furnace Dust Removal Chambers with advanced filtering technology completely change this model. These systems are put right at the mouths of the furnaces, whether they are electric arc furnaces, ladle furnaces, or intermediate-frequency furnaces. They stop the emissions before they spread.

Strategic positioning and thermal resilience are at the heart of the operational principle. Because the chamber is close, it can immediately capture volatile particles made by refining molten metal or combustion processes. This first line of defence keeps dust in a limited area instead of driving contaminants around your building. This difference is critical during periods of high production output, when emission rates are at their highest.

How do Advanced Chambers Handle Extreme Operating Conditions?

Industrial furnaces are harsh places where normal cleaning equipment quickly breaks down. Temperatures rise above 1000°C, corrosive gases attack metal surfaces, and sharp dust particles wear away at parts over and over again. Special building methods and materials in more advanced filtration chambers can solve these problems.

Refractory linings keep structural parts from breaking down when heated. High-temperature metals keep their mechanical traits even when they are heated for a long time. When airflow patterns are optimised, hot spots that weaken the seal are avoided. The design of the room takes thermal expansion into account, which ensures that the joints stay tight during heating and cooling processes. Because of these engineering considerations, the machine can keep running without having to stop often for repairs.

Primary Applications Across Metallurgical Operations

When electric arc furnaces make steel, they release huge amounts of dust that contain valuable iron oxide and metal fumes. By putting a Furnace Dust Removal Chamber at the furnace's opening, these materials are caught before they can leave, which allows for recovery and recycling. When used in secondary refining, ladle furnaces make particles with different properties that need specific ways to be filtered. Chamber designs that scale up or down to accommodate different production rates are useful for intermediate-frequency furnaces serving foundries and smaller businesses. When mining furnaces break down raw ores, they make dust that is full of valuable minerals. Modern filtration systems can easily get these minerals back.

For every use, a different chamber configuration must fit the furnace's size, temperature, and type of dust. Customization ensures the best performance across a wide range of workplace settings.

Key Benefits and Efficiency of Advanced Furnace Dust Removal Chambers

Environmental Compliance and Emission Reduction

Regulatory agencies around the world are enforcing limits on particulate emissions that are getting stricter. When facilities exceed allowed amounts, they can be fined a lot, have their operations limited, or be told to close. High-tech Furnace Dust Removal Chambers reliably confirm compliance by collecting emissions at the source before they reach tracking points.

If you can get the initial dust capture efficiency above 80%, a lot fewer particles will go into secondary collection systems or escape into the air. This level of performance directly leads to emissions from the stack that are cleaner. When inspected by regulators, facilities with modern filter technology show that they care about the environment. The chambers make it possible to see less haze, which is real proof that pollution control is working.

Operational Efficiency and Production Continuity

Building up dust on furnace parts stops heat from moving, makes it harder for workers to see, and requires frequent shutdowns for cleaning. Online ash-cleaning features in chambers allow them to keep working while removing stored particulates. This new idea gets rid of the production costs that come with cleaning things offline.

During all stages of production—charging raw materials, melting cycles, refining operations, and tapping finished products—the systems work flawlessly. Differential pressure tracking sets off automated cleaning processes that make sure there is good airflow without any help from a person. This level of reliability makes it possible to keep production going and plan repair times.

Health and Safety Improvements for Personnel

Particulates in the air are very harmful to the lungs of people who work with furnaces and do upkeep. Long-term exposure can lead to both long-term lung diseases and sudden health problems. By stopping emissions from spreading, advanced filtration chambers greatly lower the amount of dust in work areas.

Cleaner air quality improves workplace safety in several ways. Less dust on floors and equipment makes them safer for people to walk on and burn. By making things more visible, operators can keep an eye on processes more closely and catch problems before they get worse. The lower insurance rates and higher job retention are two benefits of these safety improvements.

Return on Investment Through Cost Reduction

Even though you have to pay for advanced filtration systems up front, they quickly pay for themselves in many operational areas. When downstream fans handle less fine matter, they use less energy. As equipment wears down, maintenance costs decrease. Continuous operation skills improve the amount of time that production is available. When recycled into production processes, recovered dust materials make money.

Facilities usually get their money back in less than three years, while many projects get their money back in just 18 months. When facilities avoid regulatory fines, cut down on workers' compensation claims, and make equipment last longer, the economic case gets even stronger.

Advanced Design Principles and Safety Measures

Material Selection for Thermal and Chemical Resistance

Careful material engineering is needed to build a Furnace Dust Removal Chamber that can withstand the conditions of an industrial furnace. The main structure is made of carbon steel, which was chosen because it is strong and easy to weld. Areas that are exposed to direct heat and corrosive gases are lined with high-quality refractory materials. At temperatures where most metals would break, these ceramics stay strong.

Sealing parts use bendable gaskets made from heat-resistant materials that keep their shape even when temperatures change. Protective coatings are put on fasteners to stop oxidation and seizure. Every choice of material takes into account the specific chemical makeup of process gases and particulates, making sure that suitability does not degrade before it happens.

Optimized Airflow Engineering for Maximum Capture

For dust collection to work, the wind patterns must be carefully controlled so that particles are directed into collection zones. When designing a chamber, the results of computational fluid dynamics models are used to place the inlets and outlets so that the flow fields are stable. Barriers and deflectors direct gases along the best paths, extending the time they spend in one place so that particles can settle.

The systems balance the speed of capture with the amount of energy they use. Too much airflow wastes energy and can draw heat away from the necessary furnaces. Insufficient speed allows dust to circulate. More advanced designs achieve this balance by using dampers that can be adjusted to match the conditions of production in real time. Variable frequency drives change the speed of the fans so that they match the demand instead of always running at full capacity.

Safety Systems Preventing Hazardous Incidents

When the concentration of some types of dust reaches critical amounts in small areas, they can explode. These days, chambers have explosion relief plates that break when pressure rises, letting out the force safely without damaging the main construction. Spark monitoring systems watch the entering gas streams and take action to stop fires when they see sources of ignition.

Temperature tracking all over the chamber lets workers know when something isn't normal, which could mean a failure is coming. When parameters go above safe limits, automated interlocks stop activities. These safety features meet NFPA standards and other safety rules for workplace dust collection systems. Protocols for regular inspections ensure that the safety system works, keeping it ready for emergency situations.

Maintenance Accessibility and Component Longevity

Equipment that needs to be serviced often throws off production schedules and makes labor pricier. Access to services is a top priority in modern Furnace Dust Removal Chamber designs, which include strategically placed access doors, removable panels, and modular component arrangements. Technicians can quickly and easily do regular checks and repairs without taking things apart too much.

Standardized standards make it possible for critical wear parts to work with more than one provider. This method avoids relying on a single source, which can make getting extra parts harder. High-temperature filter elements are made to last longer than three years in normal conditions. This means they don't need to be replaced as often as in traditional systems, which need to be changed once a year or more often.

​​​​​​​

Comparing Furnace Dust Removal Chambers: How to Choose the Best Fit?

Chamber Types and Their Optimal Applications

Gravity settling chambers are suitable for situations where the particles are bigger and heavier, and the efficiency of capture is low. These simple designs depend on slower gas speeds that let particles fall out of the airstream. Centrifugal forces separate particles through spiral airflow patterns in cyclonic chambers. They work well with moderate amounts of dust and use very little energy.

The best filtration happens in baghouse-style chambers, which move gases through cloth filter surfaces that catch tiny particles. Electrostatic precipitators use electric charges to pull particles to plates for collection. Depending on the type of dust, the temperature range, the amount of room available, and the budget, each technique has its benefits. For better material recovery and capture rates, baghouse designs are usually preferred in metallurgical uses.

Evaluating Technical Specifications Against Requirements

When buying a Furnace Dust Removal Chamber, you have to make sure that the specifications match its operational needs. The operating temperature limits must be higher than the highest exhaust temperatures of the furnace by a safe margin. Effective volume limits should be able to handle the highest rates of dust production during times of heavy production. Ratings of how well dust is removed have a direct effect on how well regulations can be followed and how well downstream equipment is protected.

Specifications for leakage levels below 0.3% ensure that captured materials stay inside and do not leak out through joints and seals. Construction licences show that a structure is strong enough to withstand certain pressure differences. If a supplier has ISO quality control systems, environmental approvals, and proof of installation experience, you can be sure that the work will be done well.

Case Study: Steel Mill Electric Arc Furnace Implementation

A big steel company had to deal with repeated compliance violations and high upkeep costs for dust collection systems that were getting old. On three electric arc furnaces that produce 200 tonnes of heat each, the facility added cutting-edge Furnace Dust Removal Chambers. The chambers caught more than 85% of the initial fumes, which cut the load on the baghouses further downstream by 60%.

Within nine months, the installation had measurable benefits: stack emissions dropped by 73%, furnace support equipment wear dropped a lot, and repair intervals went from once a month to three times a month. The facility recovered 12 tonnes of iron oxide every month that had been lost to the atmosphere, which brought in extra money. The whole project paid for itself in 21 months, which includes the cost of installation.

Procurement Insights: Sourcing Furnace Dust Removal Chambers and Services

Selecting Qualified Manufacturers and Suppliers

A careful review of suppliers is the first step to the successful procurement of a Furnace Dust Removal Chamber. When manufacturers show they have a lot of experience in the metallurgical industry, they know how to deal with problems that are unique to each application. Look over samples of finished projects to make sure you have experience with furnaces of similar types and production sizes. Ask for client references and do your research to make sure that you are satisfied with the level of service and the long-term performance of the equipment.

Certifications provide objective proof of the quality of the product and the skills of the company. Standardized production methods are shown by the ISO 9001 quality management certification. Certifications for environmental management systems show that a company is committed to using sustainable manufacturing methods. Utility model patents show that new ideas and proprietary technologies are still being developed. Businesses that have more than one licence usually offer better goods and better customer service.

Understanding Cost Structures and Value Propositions

The price of a Furnace Dust Removal Chamber depends a lot on how complicated the design is, what materials are used, how much purification is needed, and how much customization is needed. Standard setups that work with common furnace types are cheaper than fully customized options that are made for specific uses. As effective volumes go up, more materials and labor are used to make them, which drives up base prices in the same way.

The total cost of ownership should be included in the value assessment, not just the initial purchase price. Designs that use less energy mean that equipment costs less to run over its lifetime. Durable construction cuts down on how often replacements are needed. Full installation and commissioning services keep startup times from being too long and make sure the best configuration is used. When maintenance is needed, downtime costs are cut down by having spare parts on hand and quick expert help.

Installation, Commissioning, and After-Sales Support

Professional installation services are very important for making sure that chambers work well with current heating systems. Before the equipment arrives, experienced teams do site studies to get exact measurements, check that the structure is properly supported, and look for any problems that might come up with the integration. This planning speeds up the installation process, and based on how complicated the job is, it's usually finished in 15 to 45 days.

Before handing over, commissioning services make sure that all systems work as planned. Technicians set the parameters of control systems, check the functionality of safety interlocks, and teach building staff how to run and maintain the systems properly. Comprehensive after-sales support, such as quick technical help, quick delivery of spare parts, and regular performance reviews, keeps equipment working well throughout its service life. Suppliers who offer these services show that they care about their customers' success beyond the end of the transaction.

Conclusion

For metallurgical and industrial processes, advanced filtering technology combined into Furnace Dust Removal Chambers has transformative effects. These systems stop emissions where they start, working at over 80% initial efficiency and being able to handle harsh temperatures and corrosive environments. Environmental protection, uninterrupted output, safety at work, and lower costs through energy savings and material recovery are some of the practical benefits. The right choice of materials, engineering that optimises airflow, and a full set of safety features ensure the product works reliably for a long time. To be successful at procurement, you need to compare chamber technologies to specific needs, choose qualified manufacturers with a track record of success, and work with suppliers that offer full installation and support services. Facilities that use these advanced systems have an edge over their competitors because they run more efficiently, make sure they follow the rules, and make more money throughout the entire production cycle.

FAQ

What maintenance schedule should we follow for optimal chamber performance?

How often routine repair is done depends on how much is being made and how the dust behaves within the Furnace Dust Removal Chamber. Once a week, there should be visual checks to look for leaks or deposits that don't seem right. Monitoring the differential pressure once a month ensures that the filtration efficiency stays within acceptable limits. Internal inspections are done every three months to check for damage to refractory linings and sealing parts. Under normal conditions, filter media should be changed every three years. However, dust that is gritty or corrosive may need to be changed more often. Keep detailed service logs that record all measurements, inspections, and part replacements. Trend analysis can use this data to predict possible problems before they happen, which stops unexpected downtime.

Can chambers handle temperature fluctuations during different production phases?

Advanced Furnace Dust Removal Chambers are designed to have heat control systems that can adapt to changes in temperature during production processes. Refractory linings protect structural parts from direct heat, and flexible expansion joints adapt to changes in size as the structure heats and cools. Temperature monitoring systems keep an eye on the temperature all the time and let operators know when readings go above or below the set limits. A proper installation includes leaving enough space between parts so that they don't interfere with each other as they expand. The chambers can normally handle temperatures up to 1200°C, and they have thermal shock resistance to protect against sudden changes in temperature during charging and tapping operations.

Which certifications verify manufacturer reliability and product quality?

Getting ISO 9001 quality management certification shows that production processes for each Furnace Dust Removal Chamber are standardized, and quality control is always done the same way. Environmental management system standards (ISO 14001) show that a company is dedicated to making products that are good for the environment. Occupational health management certifications prove that safe practices are used at work. Pressure vessel codes and welding standards are covered by industry-specific certifications that show technical compliance. Look over utility model designs that show the growth of proprietary technology. Ask for proof of installations that have been completed and customer reviews that confirm how well the product works in real life. Comprehensive certification files and proven project experience are the best ways to be sure that a provider can do what they say they can do.

Partner with Shaanxi Heyuan for Superior Dust Removal Solutions

Shaanxi Heyuan New Metallurgical Electric Furnace Equipment Co., Ltd. is ready to use proven Furnace Dust Removal Chamber technology to change the way your building manages its air quality. Our engineering team, which is made up of 11 senior experts and nearly 400 skilled workers, creates solutions that are tailored to your furnace's configuration and operational needs. We have over 400 successful installations around the world since our company started in 2008. We have a lot of experience with electric arc furnaces, ladle furnaces, and applications that use intermediate frequency. Our chambers are backed by multiple utility model patents and full ISO certifications, and they have been shown to catch more than 80% of their target at temperatures up to 1200°C. As a reliable Furnace Dust Removal Chamber maker, we offer full turnkey services that include the initial site study, design, manufacturing, installation, and start-up. All of this is done within 15 to 45 days. Email our team at sxhyyj606@163.com to talk about your dust control problems and get a thorough technical plan. Visit hyyjfurnace-supply.com to explore our complete product range and discover how advanced filtration technology enhances environmental compliance, production efficiency, and workplace safety across your operations.
