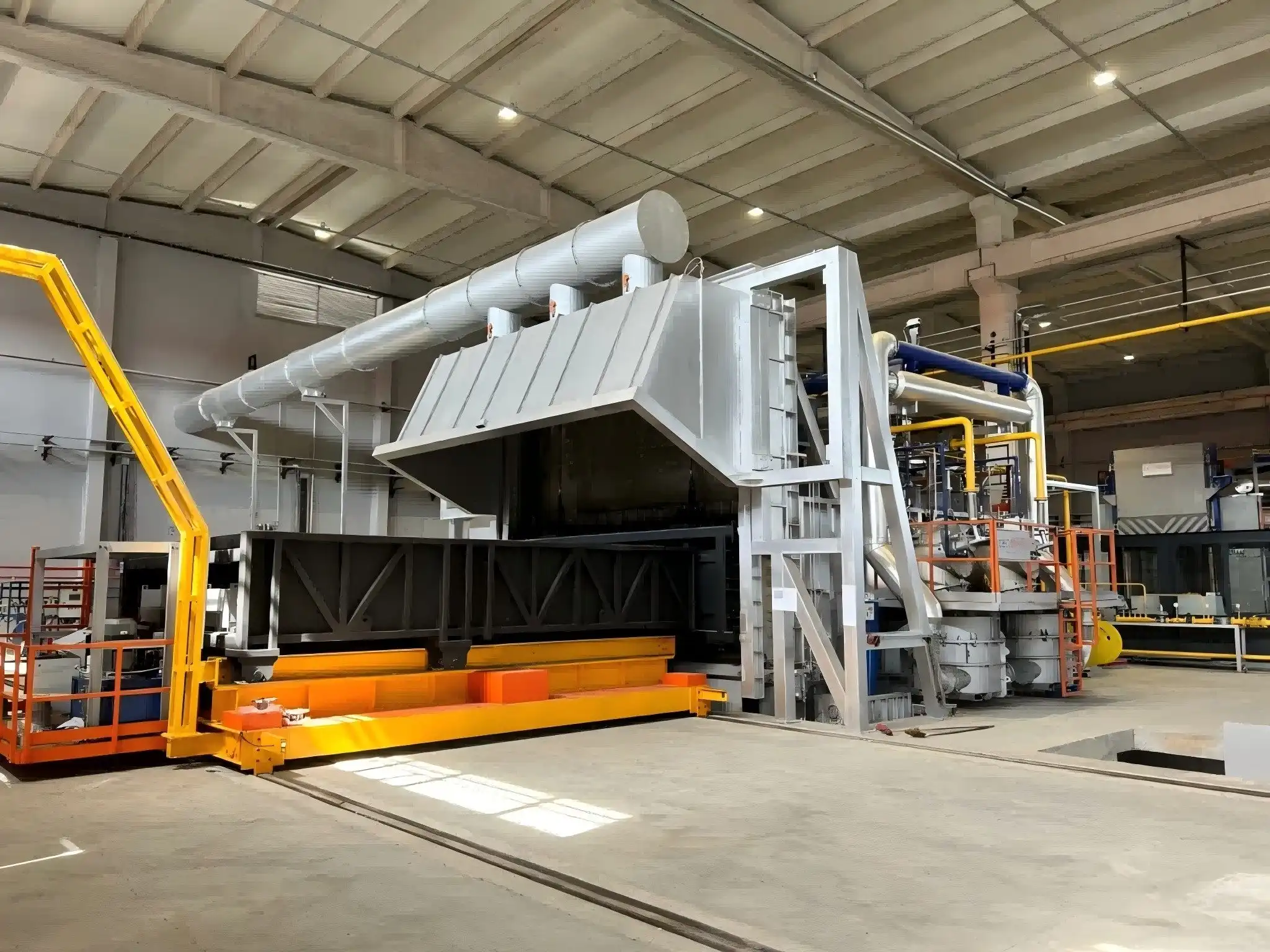

Furnace Charge Car: enhancing furnace operations and efficiency

The furnace charge car is an important part of modern metallurgical processes because it greatly enhances the accuracy of material handling, worker safety, and total production output. These specialised transport trucks control the feeding of metal scrap, alloys, and additives into electric arc furnaces and induction melting systems. They do this while reducing thermal losses and protecting the furnace linings. Instead of using damaging impact forces like traditional overhead cranes, modern furnace charge cars use vibratory or hydraulic shifting systems to precisely control the flow of materials. Choosing the right charging system is very important for B2B buying workers who run steel mills, foundries, or smelting plants because it affects melt cycle times, energy use, and the long-term durability of equipment in harsh industrial settings.

​​​​​​​

Understanding Furnace Charge Cars: Functionality and Types

Moving materials in places with high temperatures is a special kind of engineering problem that needs special tools to solve. Furnace charge cars fill this gap by mixing smart control systems with strong motor design.

Core Operational Principles

At its core, a furnace charge car is a mobile hopper device that is attached to train lines or guided pathways. The vehicle moves between places where raw materials are stored and where the furnaces open. It carries carefully weighed amounts of scrap metal, ferroalloys, and fluxing agents. The controlled-release feature of these devices sets them apart from simple carrying carts. Instead of dumping the materials all at once, they use vibratory feeds or hydraulic tilt devices to add charges slowly to the furnace space. This method keeps refractory linings from being hit by moving objects, which can cause them to crack when suddenly under mechanical stress. The structure is made of heat-resistant steel that can handle temperatures above 1200°C. Important electrical and hydraulic systems are protected by thermal insulation that is placed under the hopper structure.

Power Source Variations

Electric models are most common in current setups because they are clean to use and produce torque consistently. These units get their power from insulated busbar systems or spring-loaded wire reels, which makes sure they have a steady flow of power over long distances. Diesel versions are still useful for outdoor uses or places that don't have a lot of electricity equipment, but they usually cost more to run than electric versions. Battery-powered autonomous systems are a new type of system that lets you move around without cables, but they need special battery cases that can handle heat and regular charging routines.

Load Capacity and Customization

There are standard designs that run from 5-tonnene units for small induction furnaces to 80-tonnene heavy-duty models for big electric arc furnaces. At Heyuanxin, our high-temperature-resistant steel transfer cars can carry up to 80 tonnes of weight and are designed to move both furnace charges and ladles. Positioning devices in these systems make sure that they are perfectly lined up with the holes in the furnaces. Splash prevention shields keep people and equipment safe from molten metal that shoots out during charging cycles. Customisation goes beyond capacity and includes changing the shape of the hopper, the way the release gates are set up, and connecting them to automatic weighing systems that make sure the accuracy of the metallurgical recipe is within ±0.5% of the required level.

Comparing Furnace Charge Cars: Making the Right Choice for Your Plant

When making decisions about what to buy, it's important to know how different types of tools meet different operating needs while weighing the costs of capital investment against the benefits of long-term performance gains.

Distinguishing Charge Cars from Ladle Cars

However, these methods do different things even though they both move things. Ladle cars are used to move melted metal between furnaces, refining stations, and casting areas. They have tanks lined with refractory materials that keep the liquid steel at the right temperature. On the other hand, furnace charge cars handle solid raw materials during the first filling step of the furnace. Their hoppers can hold scrap with odd forms and rough materials that would hurt the refractory linings of ladles. Understanding this practical difference keeps people from using the wrong thing and makes sure that each system does its job without breaking down or wearing out too quickly.

Energy Efficiency Considerations

Compared to diesel engines, electric drive systems are more efficient because they turn 85–90% of the electricity they receive into mechanical work, while combustion engines only do 30–35%. This means lower costs per ton and less greenhouse gas pollution, which is becoming more important as environmental rules get stricter across all industries. Advanced types have heat recovery systems that take waste thermal energy from the sides of the hoppers and use it to warm up new materials or make extra power. These innovations make efficiency wins even bigger while supporting companies' green goals, which are having a bigger impact on how they buy things and what they have to say to the public.

Investment Options and Supplier Selection

Buying new equipment comes with a full warranty and the ability to be customised, but the cost of the capital may put a strain on budgets during building growth. Certified pre-owned units can save you 40 to 60 percent on costs while still working perfectly if you buy them from a reputable repair expert. Rental and leasing agreements keep capital available, which is especially helpful for operations that are based on projects or capacity tests before a permanent installation. When looking at makers, give more weight to those that have ISO 9001 quality certifications, recorded field installs, and fast technical support networks that can send parts quickly and do diagnostics remotely.

Procurement Guide: How to Source the Best Furnace Charge Cars

When you do strategic sourcing, you have to weigh technical requirements against the total cost of ownership and make sure that your relationships with suppliers offer long-term value beyond the delivery of the tools.

Critical Selection Factors

Load capacity needs to be 15-20% higher than peak practical demands so that process changes and future production growth can be handled. An analysis of the operating environment tells you what amount of safety you need. For example, outdoor sites need weatherproof barriers, and places with a lot of corrosive fumes need better coating systems. There are different types of control interfaces, from simple pendant stations to fully automated systems that are connected to plant SCADA networks and allow for distant tracking and planning of preventative maintenance. To make sure that safety standards are met and workers are safe, safety certificates should include following OSHA rules, NFPA electrical codes, and FEM structure design guidelines.

Warranty and Support Infrastructure

Full guarantees that cover mechanical parts for 24 to 36 months and electrical systems for 12 to 18 months protect against early breakdowns and mistakes in the manufacturing process. Check the supplier's after-sales services, such as the availability of extra parts, the time it takes for field service to respond, and the training programs for technicians. Heyuanxin keeps a large stock of replacement parts and offers detailed repair guides along with hands-on operator training. This way, your team can make sure that the equipment lasts as long as possible and that unplanned downtime doesn't get in the way of production plans.

Customization and Integration Services

Standard store models rarely work as well as they could without being adjusted for each site. Custom engineering takes into account the different shapes of furnaces, building openings, and process flows that exist in each facility. Integration services include setting PLCs for automatic charging processes, calibrating load cells for accurate batching, and installing systems that keep equipment from damaging each other in crowded work areas. Turnkey solutions that include design, manufacturing, installation, and testing make it easier to carry out projects and keep responsibility at a single level throughout the implementation stages.

Enhancing Efficiency and Operational Performance with Furnace Charge Cars

When you upgrade your material handling systems, you get measurable gains in a number of performance areas that have a direct effect on your profits and place in the market.

Addressing Common Bottlenecks

Variability is introduced by manual charging methods and operations that rely on cranes. This approach makes melt cycle times longer and energy use per tonne of final steel higher. Workers who move scrap buckets by hand run the risk of physical strain and heat exposure while getting uneven material placement. These wastes get worse when shifts change and when production is at its highest, because tired workers are less accurate. Automated Furnace Charge Cars get rid of these factors, providing repeatable charging routines that improve furnace cold spot coverage and keep melt rates constant, no matter how experienced the user is or what the environment is like.

Automation and Predictive Maintenance

Modern systems with programmable logic controls follow set charge recipes that change feed rates based on furnace temperature and power input data in real time. This closed-loop control keeps operators from having to do too much while still transferring energy as efficiently as possible. Predictive maintenance programs look at shaking patterns, motor current draw, and bearing temperatures to find problems before they get so bad that they can't be fixed. When these tactics are used, plants report 30–40% fewer unplanned repair events and, as a result, fewer production interruptions that cause expensive customer delivery fines.

Documented Performance Improvements

A steel mill in the Midwest that works with automotive supply lines switched from charging with an overhead crane to an 80-tonne automatic car system for furnace charging. This made tap-to-tap times 12% faster and electricity use 8% lower per heat. The managed introduction of the material cut refractory wear by about a third, which meant that relining could happen every 24 months instead of every 18 months. Even though a lot of money was spent on capital, the investment paid for itself in just 2.8 years, thanks mostly to better use of production capacity and lower upkeep costs. These results strongly support updating sites that handle materials, even if they already have working older equipment.

The Future of Furnace Charge Cars: Trends and Innovations

As technology keeps changing, so do the ways that people can move things. New solutions are coming out that meet both the needs for business excellence and environmental responsibility.

Industry 4.0 Integration

Next-generation furnace charge cars are connected parts of smart manufacturing ecosystems that send operational data to cloud-based analytics tools that help facilities schedule output more efficiently. Machine learning algorithms look at past charging trends to suggest changes to the recipe that keep mechanical standards while reducing the amount of alloy used. Digital twin models let you try changes to a process virtually before putting them into action. This lowers the risks of experiments and speeds up efforts to keep improving. Because of these features, furnace charge cars go from being inactive transport devices to smart systems that help make operating decisions.

Electric and Hybrid Propulsion Advances

Lithium iron phosphate battery technology now has enough energy density and temperature stability for industrial uses, allowing machines to work without cables and without releasing diesel fumes. Having rapid charging infrastructure that allows for 15-minute return times keeps operations running smoothly when there are multiple shifts. Combining grid electricity for vibratory feeding with battery power for horizontal travel makes the best use of energy sources while keeping operating freedom. Lifecycle cost studies are starting to favor electric power more and more as the prices of batteries drop and carbon pricing methods make the costs of running fossil fuels higher across all regulatory areas.

Strategic Partnerships for Future-Proofing

Working together with makers who are thinking ahead gives you early access to new technologies and lets you shape product development roadmaps that are in line with your business's goals. Heyuanxin is always putting money into research and development. They have more than ten utility model patents that cover advanced control systems and charging methods. Our engineering team works directly with clients to create prototypes of custom solutions that solve specific problems. This makes sure that investments in tools stay useful for 15 to 20 years, even if industry standards and production methods change.

Conclusion

Investing strategically in advanced material handling systems pays off in ways that go far beyond the initial efficiency gains. Furnace charge cars that are well-made and designed to work in harsh metalworking environments lower running costs by using less energy, lasting longer, and needing less upkeep. Safety improvements keep your employees safe from mechanical and heat dangers, and regulatory compliance safeguards keep you from getting fined and having to stop production. As the steel and metals markets call for more output flexibility and better environmental performance, updating charging infrastructure puts facilities in a better position to meet these needs while keeping costs low enough to support the long-term success of the business.

FAQ

What load capacity should steel mills prioritise when selecting material handling equipment?

The size of the furnace, the amount of output, and the way the furnace is charged in batches affect the capacity choice. Mid-sized electric arc furnaces usually need 30–50-tonne systems. For big businesses, 80–tonne heavy-duty models are better because they cut down on the number of times they need to be charged and the heat that is lost during that process. To figure out what you need, multiply your usual charge weight by 1.2 to make sure you have enough capacity margins for practical freedom.

How do maintenance challenges differ between electric and diesel-powered systems?

Electric models need to have their cable reels, motor brushes, and control circuit parts checked regularly. Usually, repair cycles last for 500 hours of use. Diesel versions need more regular maintenance, like oil changes, fuel system cleaning, and maintenance on the emission control system. Usually, they need to be fixed every 200 to 250 hours. Over five years, the total cost of care tends to be 25–35% lower for electric systems.

Can charging systems accommodate specialised furnace configurations?

Customisation options can work around almost any furnace shape or building plan issue. The hopper's size, how it discharges, and the way it moves can be changed to fit roof-charging furnaces, side-door filling systems, and multi-furnace activities that need to feed in both directions. During the procurement phase, detailed site studies make sure that designed solutions work well with the infrastructure that is already in place.

Partner with a Trusted Furnace Charge Car Manufacturer

Heyuan offers complete mining equipment options backed by more than a decade of excellent engineering and dependability in the field. Our Furnace Charge Car systems are made to withstand high temperatures and come with precise control technology and application-specific customisation to make your heater work better. We help clients all over North America by providing quick expert support, fair prices, and full project delivery, from the initial meeting to commissioning and operator training. You can email our team at sxhyyj606@163.com to talk about your material handling needs and get full specifications that are made to fit the way your building works. Visit hyyjfurnace-supply.com to see all of our products and learn how working with an experienced provider can turn the money you spend on equipment into long-term competitive benefits.

References

1. Toulouevski, Y.N., & Zinurov, I.Y. (2017). Innovation in Electric Arc Furnaces: Scientific Basis for Selection. Springer Series in Materials Science, Volume 221.

2. Kleimt, B., Köhle, S., & Kühn, R. (2019). Automated Material Handling in Modern Steelmaking: Efficiency and Safety Improvements. Journal of Metallurgical Engineering, 8(3), 145-162.

3. American Iron and Steel Institute. (2020). Electric Arc Furnace Best Practices Manual: Energy and Environmental Profile. Washington, DC: AISI Technology Roadmap Program.

4. Memoli, F., Mapelli, C., & Ravanelli, P. (2018). Energy Optimisation in EAF Through Advanced Charging Systems. Metallurgical Research & Technology, 115(4), Article 402.

5. Kirschen, M., & Hay, T. (2021). Refractory Wear Mechanisms in Electric Arc Furnace Steelmaking and Mitigation Strategies. Journal of Materials Processing Technology, 298, 117-134.

6. International Organization for Standardisation. (2015). ISO 9001:2015 Quality Management Systems – Requirements for Industrial Equipment Manufacturing. Geneva: ISO Standards Catalogue.
