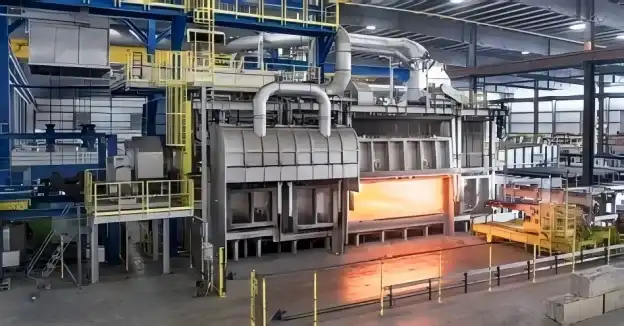

Industrial Furnace hood for High-Performance Fume Extraction

When you operate a steel mill or metallurgical plant, controlling hazardous emissions isn't optional—it's essential. An Industrial Furnace hood acts as the frontline defense in capturing dangerous fumes, particulate matter, and high-temperature gases at their source. These specialized containment systems sit directly above or adjacent to electric arc furnaces, ladle furnaces, and induction melting equipment, extracting pollutants before they spread throughout your facility. Unlike standard ventilation systems, a high-performance industrial furnace hood handles extreme thermal loads exceeding 800°C while maintaining collection efficiency rates above 95%. This makes them indispensable for meeting EPA NESHAP standards and protecting your workforce from respiratory hazards.

Introduction

Metalworking plant managers must juggle important tasks. You must cut costs, protect workers, follow stricter environmental laws, and boost factory efficiency. Industrial furnace hoods are essential business tools for tackling these concerns.

A proper fume extraction system moves air, captures dangerous emissions at temperatures that would damage ventilation equipment, stops diffuse pollution that endangers workers, and avoids expensive regulatory fines. Metal processing and steelmaking produce the worst industrial emissions. Tiny particles, metal oxides, and sulfur compounds are hazardous.

Procurement pros struggle to compare furnace hoods. Technical requirements vary per company; therefore, distinguishing marketing claims from performance differences requires skill. When your investment will last years, you must know the total cost of ownership, load capacity, heat resistance parameters, capture velocity requirements, and load capacity.

This book gives you the basics and practical advice for excellent judgments. We'll explain how these systems work, how to configure them for different requirements, and how to maintain them. This knowledge may help you protect your most valuable asset—your people—while meeting regulatory requirements, improving tool performance, and selecting new facility systems.

Understanding Industrial Furnace Hoods and Their Role in Fume Extraction

What Sets Industrial Furnace Hoods Apart

An Industrial Furnace hood is very different from other types of air equipment. Laboratory fume hoods deal with chemical vapors at low temperatures. Metallurgical extraction systems, on the other hand, have to be able to handle radiated heat above 1,600°C and collect molten metal splashes during tapping operations. These specialized hoods keep ultrahigh temperature sources away from the air quality systems in your building.

Getting rid of emissions where they are made is what the system is mostly used for. When an electric arc furnace is working, strong reactions send out sudden bursts of fumes that contain iron oxide, manganese, and other dangerous chemicals. If you put the extraction hood in the right place, it will catch these plumes using calculated airflow patterns, stopping them from spreading to other parts of the area. To do this correctly, the capture velocity must reach at least 1.5 meters per second at the hood face, and the pressure drop must be kept to a minimum so that your exhaust fans don't have to work too hard[^1].

Critical Safety Features That Protect Operations

Safety concerns go beyond controlling emissions. Water-cooled Industrial Furnace hoods have pressure cooling channels that keep the structure from breaking when the temperature changes. A catastrophic failure could let water touch hot metal, which would cause a steam blast that could hurt people and damage equipment. Because of this, quality control must include hydrostatic pressure testing at 1.5 times the design pressure.

Explosion-proof designs protect against another very important risk. When sparks from the furnace hit combustible dust that has built up in the ductwork, it can catch fire. Pressure relief valves are part of modern systems. They let rapid pressure spikes escape away from areas that are being used. The choice of material is also very important. For example, high-nickel metal plates don't rust when acidic condensates hit them, and they stay structurally sound after thousands of thermal cycles.

Welded joints won't fail under operating stress if they are made in line with OSHA rules and industry norms such as AWS D1.1. What's at stake is very important: if the hood is broken, heavy metals can escape and subject workers to levels that are far above what is safe. In addition to the short-term health risks, long-term exposure causes neurological damage and respiratory diseases that last a person's whole life.

​​​​​​​

Types of Industrial Furnace Hoods and Their Applications

Comparing Standard and Custom Solutions

Off-the-shelf dome hoods are good for simple uses where furnaces are set up in standard ways, and heat loads are known ahead of time. These units are usually built to be air-cooled so they can be used for induction melting tasks below 1,200°C. But for most metalworking jobs, they need custom designs that take into account things like the shape of the furnace, how the metal is tapped, and how it fits in with other ladle transfer systems that are already in place.

Custom-engineered solutions are made to solve specific operational problems. For a tilting furnace to work, the hood part must be able to turn. This is done with flexible high-temperature seals that keep the capture efficiency high while the furnace is filling. "Fourth hole" designs are common for electric arc furnace installations. This is where the hood links directly to the furnace roof and serves as both an emission collector and a pre-cooling chamber for off-gas treatment systems. This method serves two purposes: it lowers capital costs and improves heat management.

Application-Specific Configurations

The most difficult situations can be found in steel factories. During oxygen lancing, the temperature of the combustion process rises quickly, releasing huge amounts of fumes. To get rid of the heat flow that would kill options that are cooled by air, water-cooled tubular membrane construction is needed, which is similar to how boiler walls are built. Even when the furnace is working very hard, these systems are able to collect more than 95% of the dust.

When working with aluminum or copper metals in a foundry, the problems they face are different. Metal oxide fumes have a much higher mass loading than fumes from ferrous operations. To keep the fumes from settling, ducts need to have bigger cross-sections. Corrosion protection is very important because copper compounds create acid dew points that are very bad for carbon steel. Grades of stainless steel like 310S offer the needed protection while keeping the structure's strength at high temperatures.

Heat treatment lines that are always running need systems that are designed to use as little energy as possible. Because these processes produce steady-state emissions instead of short bursts, designers can slow down the collection speeds and put in place heat recovery systems. The thermal effectiveness of insulation layers is higher than 85%, which means they collect waste heat that warms up the air for combustion and lowers the amount of natural gas used. This lowers your operating costs and helps you meet goals for reducing emissions, which makes your facility better for the environment.

Material Selection and Durability Factors

Materials have a direct effect on how long something lasts and how often it needs to be maintained. ASTM A36 carbon steel is strong enough for construction that is cooled by water and has internal surfaces that stay below the temperature at which corrosion starts to happen. Heat-resistant metals are needed in high-temperature areas that are open to radiant heat. 304H steel keeps its properties up to 850°C, while Inconel 600 can be used in the harshest conditions up to 1,100°C.

Insulation technology changes both how well it keeps heat in and how much it weighs on structures. Ceramic fiber blankets are very good at keeping heat out and don't add much weight, so they put less stress on support systems. When insulation is installed correctly, it keeps the outside of a building at a safe temperature for people to touch while also keeping the inside efficient so that condensation doesn't form. This is important because condensation dripping onto molten metal can be dangerous and lower the quality of the product.

Optimizing Performance: Design, Installation, and Maintenance Best Practices

Engineering Standards That Drive Performance

Calculating the correct heat load is the first step in design. CFD modeling predicts how the fume plume will behave in different operating conditions, showing where the hood should be placed and how fast the face needs to move. Systems that are too small don't collect pollution when they're busiest, and systems that are too big waste energy by pushing too much air through the vents. To find this mix, you need to know a lot about how your furnace works and when your output runs.

The conditions for ventilation are set according to well-known rules for workplace hygiene. The American Conference of Governmental Industrial Hygienists puts out recommendations for capture velocity based on the toxicity and generation rate of contaminants. Heavy metal fumes from ferrous metallurgy need to be captured at least 100 to 200 feet per minute, but this depends on the specifics of the process. Your hood has to keep these speeds across its whole face opening, even if furnace emissions change.

There are some problems that come up with structural unification. To make sure the load capacity is right for supporting a water-cooled hood that weighs several tons above a furnace, you need to work with building structure experts. Thermal expansion movements need to be able to be handled by bendable links that keep the integrity of the seal. When putting the hood in the right place, it should not get in the way of overhead cranes, charging equipment, or maintenance access. If it's not put in the right place, it can slow down operations and make them less productive.

Installation Collaboration for Compliance

By working closely with your equipment provider during installation, you can avoid mistakes that cost a lot of money. Manufacturers with a lot of experience provide thorough assembly plans that show where the anchor bolts go, where the cooling water connects, and where the pipe changes direction. Pre-fabricated modular parts cut down on the need for welding in the field, which improves quality control and speeds up installation times to keep production running as smoothly as possible.

During commissioning, it is made sure that the installed performance matches the requirements set by the designer. Smoke testing shows where air is leaking and how well it is being captured, so problems can be fixed before regulatory checks. The flow rates of cooling water are checked against estimates of heat transfer to make sure that there is enough thermal protection in the worst-case situations of operation. This methodical technique finds mistakes in the installation process before they lead to broken equipment or problems with following the rules.

Maintenance Protocols That Prevent Downtime

Small problems don't get worse over time when there are regular inspection schedules. Visual checks done once a month find corrosion starting, insulation damage, and cooling water leaks that need to be fixed right away. Thermal imaging cameras find hot spots that mean there is internal scale buildup that makes the cooling circuit less effective. If this is caught early, the scale can be removed during regular maintenance instead of having to be removed during an emergency shutdown.

Cleaning routines deal with the buildup of slag that makes ductwork openings smaller and raises the pressure drop. Cleaning the inside of the Industrial Furnace hood is usually done when the furnace is relined once a year, so that the break doesn't affect production too much. High-pressure water jetting gets rid of deposits and lets you check the inside areas for damage like wear or rust that might need to be fixed. When these shutdowns happen, worn refractory linings are replaced so that thermal safety lasts for another turn of operation.

Systematic evaluation is needed to fix common problems. Less efficient capture could mean that the fan is wearing out, there are leaks in the ductwork, or the hood's shape has changed because of thermal warping. Throughout the system, pressure tracking points find trouble areas and direct repair efforts to them, so parts aren't replaced when they don't need to be. This way of diagnosing cuts down on upkeep costs and speeds up performance restoration.

Comparing Industrial Furnace Hoods: Making the Smart Procurement Decision

Performance Metrics That Matter

When comparing different proposals, you have to look at the details that have a direct effect on how well the operation goes. Collection efficiency is the amount of created fumes that are actually caught. Systems with an efficiency below 90% let a lot of pollution escape, which increases the risk of not following the rules. It doesn't matter what the leakage rate is; a system that collects 95% of the water but lets 2% leak out through structural gaps works worse than one that is properly sealed.

Energy use should be carefully looked at in more depth than just using horsepower numbers. At normal industrial rates, the electricity needed for a system with a 500 kW continuous fan costs about $350,000 a year. Designs that use heat recovery can offset 20–30% of this use, with payback times of less than three years. The better the insulation, the less energy your furnace needs to run. Systems that keep 85% of their heat in save 15-20% on fuel costs compared to those that don't insulate well.

Making noise at work affects both quality and compliance with rules. Hearing protection is required by OSHA in places with noise levels above 85 decibels for eight hours. Fan systems can make 95 to 105 decibels of noise when they're working normally, so they need acoustic enclosures that cost more and make it harder to do maintenance. Designs that use bigger fans that spin more slowly get the airflow they need with less noise, which lowers the cost of engineering control and makes the working conditions better.

Total Ownership Cost Analysis

The purchase price only covers 40–50% of the costs of owning the car over its lifetime. Installation costs are often the same as the cost of the equipment, especially for unique designs that are very complicated and need a lot of welding and structural changes to be made in the field. Over a 10-year service life, the operating costs usually exceed the initial capital investment. These costs include energy, cooling water, maintenance work, and replacement parts. The amounts of money spent on these things change a lot between different designs.

The amount of maintenance needed depends a lot on how the system was designed. When air-cooled hoods are used in high-temperature environments, the panels need to be replaced every two to three years because heat cycling causes the panels to twist and break. Water-cooled systems need to be descaled and have their tubes replaced every year, but they don't need to be completely rebuilt. Poorly designed systems can have upkeep costs that are more than 200% of the purchase price over a ten-year period, while well-designed systems only need routine repair that costs 50–75% of the starting cost.

Safety and production are both affected by reliability. When furnaces break down without warning, they have to be shut down quickly, which costs a lot of money every hour in lost production. Systems that break down more than once a year mess up processes and put workers in danger when they work near broken equipment. Checking references for suppliers shows trends of dependability. Asking current customers about how often problems happen and how quickly the maker responds gives information that a specification sheet doesn't.

Sourcing and Supplier Insights: Navigating the Industrial Furnace Hood Market

Global Manufacturer Landscape

There are well-known sellers in the North American market with decades of experience in the metals industry. These companies know a lot about how furnaces work and can make systems that work well with the steelmaking process. European suppliers are often the first to use technologies that save energy and meet strict EU emissions rules by using heat recovery systems. Asian manufacturers, especially those from China, offer low prices and quality that is getting closer and closer to that of Western sources. For example, Shaanxi Heyuanxin Metallurgical Electric Furnace Equipment Co., Ltd. has installed over 400 systems in 15+ countries, showing that they can do business internationally[^2].

OEM providers are another way to get hoods because they can make them to the specs that engineering firms or end users come up with. This method works well for big project workers who want to handle everything themselves and organize the whole installation of a building. To make sure that the equipment delivered meets operational needs, OEM relationships need to be based on clear communication about performance requirements, quality standards, and acceptance testing procedures.

Credential Verification and Supplier Assessment

Quality management skills can be seen by looking at a manufacturer's certifications. For example, ISO 9001 certification shows that your quality processes are written down, and ISO 14001 certification shows that you have environmental management systems that lower the risk in your supply chain. Industry-specific certifications, such as ASME Section VIII for pressure vessels, show that you know how to meet important fabrication requirements that affect safety and dependability.

References from customers give you useful information that marketing tools can't. By talking to current users, you can find out if the performance you were promised actually happened, how quickly the seller responds when problems arise, and if the installation timelines were reasonable. By asking about the availability of spare parts and how quickly technical support responds, you can get an idea of what to expect when you need operating help years after the purchase.

Performance boasts are more likely to be true when they are tested and certified by a third party. You can trust performance data from systems that have been tested by independent labs according to ASHRAE standards. Manufacturers who are willing to legally guarantee certain levels of efficiency show that they have faith in their designs. Suppliers who don't offer performance guarantees often deliver equipment that doesn't meet specs.

Commercial Considerations for Procurement Success

Different providers have very different ways of setting prices. Some companies give you prices for just the equipment, and you have to take care of shipping, installation, and commissioning on your own. Turnkey pricing includes full installation and startup, which makes project management easier but could include construction service margins. Knowing exactly what each quote covers keeps project budgets from going over budget due to unexpected costs.

When your project schedule depends on when equipment needs to be delivered, negotiating lead times becomes very important. Custom-engineered systems usually take 12 to 16 weeks to ship from the time they are ordered, but for more complicated designs, it can take 20 weeks or more. Express services shorten wait times, but they raise the cost of equipment by 15 to 25 percent. When you plan your purchases early in the project cycle, you can avoid paying more because of delays and make sure the equipment comes when it's needed.

When you order more than one unit for a facility expansion or installations at more than one site, you can get a discount. Manufacturers lower the price per unit by 10–20% for orders of three or more systems because the cost of design engineering is spread out over more units. Standardizing on a single supplier also makes it easier to keep track of spare parts and train employees, which saves money on costs and improves operations.

Beyond the usual one-year coverage, the terms of the warranty should be carefully looked over. Longer guarantees that last between 5 and 7 years protect against early failures that would need expensive replacements. Pay attention to the warranty exclusions. For example, some manufacturers won't cover you if you use unapproved maintenance contractors or go beyond the limits that were set. Knowing these limits keeps disagreements from happening when guarantee claims are made.

Conclusion

Choosing the correct Industrial Furnace hood is a significant choice that will have long-lasting effects on your facility's safety, compliance, and profits. These systems have to be able to work in very hot or very cold places and catch dangerous fumes that could put your employees or your reputation with the government at risk. Knowing the technical differences between water-cooled and air-cooled designs, how the choice of material affects longevity, and looking at the total ownership costs instead of just the purchase price can help you make smart purchases that don't cost a lot of money. The best providers have a track record of metalworking knowledge, well-documented quality systems, and quick, helpful support that lasts as long as your equipment does. By using the information in this article, you can come up with solutions that will work reliably, protect your employees, take care of the environment, and help your business run smoothly.

FAQ

1. What Hood Configuration Best Suits Electric Arc Furnace Steelmaking?

For EAF operations, you need canopy hoods that are cooled by water or fourth-hole designs that are directly attached to the furnace roof. These systems need to be able to handle electric arc shocks and temperature spikes caused by oxygen lancing while still collecting more than 95% of the energy they use. The design of a water-cooled tubular membrane protects against heat in the right way, with cooling channels working at 3-6 bar pressure. The hood both collects emissions and cools down systems before they are used, which keeps filter fires from starting when high-temperature gases get in.

2. How Often Should Industrial Furnace Hoods Undergo Maintenance?

Visual checks once a month find new problems like rust, damaged insulation, or cooling leaks. Every three months, thermal imaging finds interior scale growth that makes cooling less effective. Every year, the furnace is shut down for relining, which lets the inside be thoroughly cleaned, the refractory inspected, and, if necessary, the cooling tubes replaced. Depending on the quality of the water, water-cooled systems need to be descaled every 12 to 18 months. Heavy-duty installations can last up to 5–10 years longer with proper maintenance, and they won't break down in the middle of production.

3. Can Hood Systems Be Customized for Specific Emission Targets?

Of course. Custom engineering changes the capture speeds, the shape of the hood, and the filter systems so that they meet your exact pollution standards. Facilities that have to follow strict rules about PM2.5 or heavy metals benefit from designs that collect more efficiently and have stricter sealing requirements. When space is limited, side-draft designs or dog-house enclosures that increase capture within available openings are used. Manufacturers that offer CFD models make sure that their designs are optimized for your specific furnace setup and output needs. This makes sure that they meet all of your requirements without over-engineering, which wastes money.

Partner with Shaanxi Heyuan for Industrial Furnace Hood Solutions Engineered for Excellence

Shaanxi Heyuan provides tried-and-true fume extraction technology that is specifically designed for tough metallurgical tasks in steel mills, foundries, and other metalworking facilities. Our Industrial Furnace hood systems have been tested and shown to collect more than 95% of the air while keeping leakage rates below 0.5%. This is based on the performance of more than 400 installations in 15+ countries. Our hoods are made with lightweight, high-temperature-resistant steel and advanced insulation that keeps 85% of the heat inside. They work reliably at temperatures up to 800°C and come with a 5-year warranty.

Our 400-person skilled team, which includes 11 top metallurgical engineers, helps us with everything from planning to commissioning. Our design services can be tailored to your exact needs, whether you need standard cover configurations or fully personalized systems for furnaces with unique shapes. Before being shipped, every system goes through strict hydrostatic testing and non-destructive weld inspection by quality management that is ISO-certified.

Our expert help is available 24 hours a day, 7 days a week, and our after-sales service covers all of your needs. We help plan the installation, train the operators, and keep an inventory of spare parts to keep downtime to a minimum. Looking for an Industrial Furnace hood provider who is dependable and knowledgeable about industrial processes? Email our team at sxhyyj606@163.com to talk about your unique needs. Get your personalized quote today and find out why top steel companies trust Heyuanxin to provide long-lasting emission control solutions.
