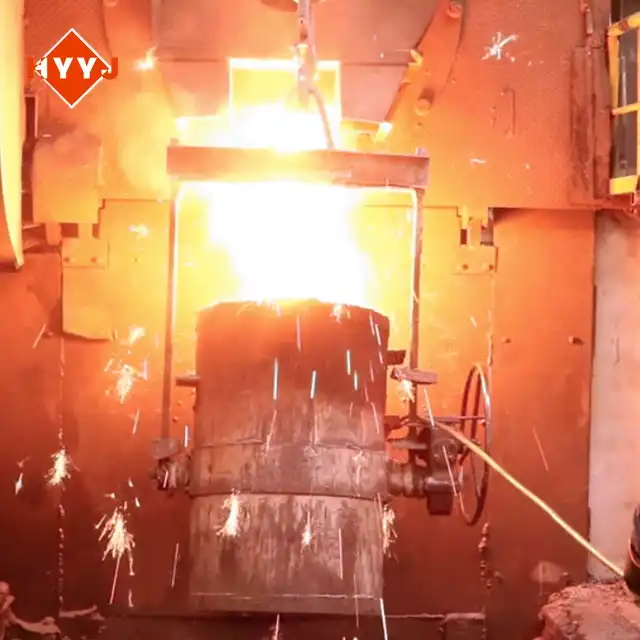

High Frequency Furnace for Casting and Heat Treatment Plants

When your casting or heat treatment plant demands faster processing, lower energy costs, and superior product quality, the right induction heating technology becomes mission-critical. A high-frequency furnace delivers electromagnetic induction heating in the 10 kHz to 300 kHz range, generating intense, localised heat within conductive workpieces through eddy currents. Unlike traditional gas-fired or resistance furnaces, this technology eliminates long preheating cycles and reduces oxidation, making it essential for precision operations in metallurgy, automotive component manufacturing, and specialized alloy processing across North American industrial facilities.

Understanding High-Frequency Furnaces: Core Concepts and Applications

How Does Electromagnetic Induction Create Industrial Heat?

Through a simple but effective process, our induction heating systems turn electrical energy into heat energy. A magnetic field that changes quickly is made when high-frequency alternating current runs through the induction coil. This field goes through the metal piece and creates eddy currents that heat it up through resistance. The great thing about this method is that it is direct—the heat comes from inside the material instead of moving from somewhere else. This basic difference is what makes the big changes we see in heating speed and energy efficiency possible.

The number you choose controls how deep and how fast the heat goes. Higher frequencies focus heat close to the surface, which makes them ideal for soldering or case hardening. Lower frequencies in the range go deeper, making them good for heating larger parts all the way through. The systems made by Shaanxi Heyuan work between 10 kHz and 100 kHz, so you can choose the frequency that best fits your mechanical needs.

Critical Applications in Modern Metal Processing

The ability to melt metals using induction is very helpful for casting operations. Smelters of precious metals use electromagnetic stirring because it keeps the mixture homogeneous and reduces the amount of material that is lost through volatilisation. Because the melting cycles are so fast—often 30–50% faster than traditional methods—your production schedule can handle more work.

For processes that use heat, exact temperature control is needed, and this is where our solutions really shine. For quenching processes, the material needs to be heated quickly to temperatures that make it austenitic and then cooled slowly. The temperature difference across your workpiece stays within ±5°C, which makes sure that the metallurgical changes are consistent. When our control systems deliver programmable heating profiles batch after batch, they help with tempering, annealing, and stress-relieving.

Why Do Procurement Managers Choose Induction Technology?

Energy costs are a big part of the costs of doing business in metal processing. If the thermal efficiency is more than 85%, more of the electricity you use is turned into useful heat in the object instead of waste heat in your building. We have records of plants that used 40% less energy than they did with their old resistance furnaces. The flameless heating environment also makes the workplace better because there are no byproducts of combustion, the temperature is lower, and the air quality is better for your workers.

When building a facility, the small size should be taken into account. Our units take up a lot less floor space than traditional furnaces of the same size. The chamber sizes range from φ50mm×100mm for lab work to φ300mm×500mm for production runs. The power outputs can be changed from 15kW to 200kW to meet your volume needs.

Comparing High-Frequency Furnaces with Other Furnace Technologies

Operational Distinctions That Impact Your Bottom Line

Resistance stoves get their heat from heated parts that conduct heat and give off heat. This indirect way wastes more energy and makes the loop last longer. Gas-fired furnaces have a high power density, but they have trouble keeping the temperature even and release emissions that need to be cleaned up with ventilation systems. Traditional induction furnaces that run on power frequency (50–60 Hz) need liquid heels and can't start and stop quickly enough for current production schedules.

These problems are taken care of by our high-frequency furnace induction heating technology. With instant-on, you only heat when you need to, so you don't waste energy when the unit isn't in use. The skin effect lets you heat only certain parts of a metal, like hardening the outside of a gear without changing how tough the inside is or brazing joints without annealing the nearby parts. This accuracy stops the distortions caused by through-heating that happen with regular methods.

Energy and Cost Analysis for Procurement Decisions

The initial investment in tools needs some background. Induction systems may cost more to buy than simple resistance heaters, but the real value comes from figuring out how much they cost to run. The amount of energy used drops by a huge amount—550 to 650 kWh per tonne of material handled, compared to 800+ kWh for older methods. Over the normal lifecycle of an item, the energy savings alone often make up for more than the difference in price at the start.

To save money on maintenance, solid-state induction devices are better. There are no heating elements to change, refractory linings to rebuild, or hob maintenance to do. Our systems are powered by IGBT inverters that work reliably with little maintenance. Protection systems keep an eye out for overcurrent, overvoltage, and hot situations. This keeps parts from breaking down and costs a lot of money.

Matching Technology to Your Production Requirements

Adjustable frequency systems work best for small-batch precision casting jobs. Being able to work with various alloys and part shapes without having to switch between pieces of equipment makes scheduling more flexible. Suppliers of automotive parts that harden drivetrain parts need customisable heating settings to make sure that the process is always the same. Aerospace heat treaters who work with superalloys like the controlled atmosphere features that keep oxidation from happening during high-temperature processing.

Take your material range into account when you're judging systems. Different metals, like steel, iron, copper, aluminium, and some special combinations, work best with certain frequency bands. The flexible frequency feature of our equipment lets you meet a wide range of material needs in a single installation, making the most of your investment.

Procurement Considerations for High-Frequency Furnaces

Evaluating Total Cost of Ownership

The purchase price is just the beginning of your financial research. Installation costs depend on the needs of the power infrastructure. During the quotation part, our engineering team checks out your current electricity service to give you correct project costs. The good news is that our small designs usually need less foundation work and building preparation than regular furnace installations.

When you're trying to increase your capacity or replace some tools, lead times are important. Standard configurations ship between 8 and 12 weeks, but custom-engineered solutions need more time for manufacturing and design validation. Technical risk during procurement is lower when you work with a well-known manufacturer that has multiple patents and certifications. The fact that Shaanxi Heyuanxin Metallurgical Electric Furnace Equipment Co., Ltd. keeps its ISO quality management system and workplace health management system certifications shows that we are dedicated to making sure that our manufacturing processes are reliable.

Warranty Terms and After-Sales Support

In work settings, the costs of equipment downtime add up quickly. Your choice matrix should give a lot of weight to how well the source handles issues after the sale. As one of the benefits of our service, we teach your employees how to operate the tools, so they know how to do it right from the start. Core component quality assurance and prompt maintenance responses cut down on unplanned outages as much as possible.

Different sellers offer different warranty terms, but most should cover major parts for 12 to 24 months. Pay attention to what isn't covered—consumables like induction coils may have less coverage. Remote diagnostics are becoming more and more important. Our systems allow data logging and remote tracking to make troubleshooting faster when problems happen.

New Equipment vs. Used Market Considerations

There are risks that come with buying used equipment that aren't always obvious. Induction technology has come a long way in the past few years. Older systems that use thyristors aren't as efficient or easy to handle as newer IGBT designs. You might save money on the purchase price, but you'll have to pay more for upkeep and have higher ongoing running costs. Also, used equipment usually doesn't come with factory support or a warranty.

Buying new equipment from a well-known company gives you peace of mind because the performance specs are written down, the equipment is tested in the workshop, and there is a full support network. Custom configurations of furnaces that are made to fit the size of your workpiece and the needs of your process give you the best results that generic, used equipment can't match.

Selecting the Right High-Frequency Furnace Supplier

Certification and Quality Credentials

Checking licenses and quality control systems is the first step in evaluating a supplier. For basic proof of structured production processes, look for ISO 9001 quality management approval. Certifications for an environmental management system (ISO 14001) and an occupational health system (ISO 45001) show that the business is fully developed. These aren't just pieces of paper; they're organised ways to make sure that the result is always the same and that it keeps getting better.

Having patents shows that you are committed to creation and have good technical skills. Shaanxi Heyuanxin has more than ten utility model patents and more than ten computer software copyrights, which shows that they are still investing in the growth of technology. High Frequency Furnace enterprise recognition at the provincial level and 3A credit enterprise status give customers more faith in a business's financial stability and reputation.

Evaluating Technical Support and Service Networks

Your relationship with your supplier goes far beyond just getting equipment. How quickly your system can start making things depends on how well it is commissioned. Our expert team oversees the installation on-site and makes sure the process runs smoothly from the start. This helps you meet performance goals right from the start.

Long-term success depends on how well you train. Not only should operators learn how to do basic tasks, but they should also learn how to fix common problems and understand how process factors relate to each other. Training your technical staff in maintenance cuts down on the number of service calls you need to make to outside companies and the time it takes to make changes.

Custom Solutions for Unique Applications

Standard catalogue equipment works well for most uses, but your process may need equipment that is set up in a certain way. Custom engineering may be needed for things like chamber size, power needs, controlling the atmosphere, and integrating robotics. If your supplier has in-house design and manufacturing flexibility, they can give you the best solutions instead of making you change your process to fit the equipment that is available.

When you're working on bigger jobs or adding furnace equipment to whole processing lines, OEM options are important. Our knowledge of electric arc furnaces, ladle furnaces, and dust cleaning systems gives us a bigger picture of what a metallurgical company needs. This understanding of systems helps make sure that your induction heating equipment works well with the rest of your business.

Operation, Maintenance, and Safety of High-Frequency Furnaces

Start-up Procedures and Performance Monitoring

The right way to start up equipment protects it and makes sure it works at its best. Our systems come with pre-start verification checks that make sure the water flow is correct, the power source voltage is correct, and the coil link is correct. The control interface shows operators what to do and stops the process if safety conditions aren't met.

Monitoring temperature gives you a look at how well a process is working. In bigger systems, multi-zone sensing shows patterns in how temperatures are distributed, which helps with placing coils and adjusting power settings. With data logging, you can keep track of process factors for quality purposes and look for patterns that could mean problems are starting to form before they become failures.

Preventive Maintenance Programs

Systems work effectively when they get regular repairs. Maintenance of the water cooling system is the most important thing to do. Scale buildup makes heat transfer less effective and can cause parts to get too hot. Problems can be avoided by checking and cleaning the cooling channels every three months. Monitoring the water quality finds changes in conductivity that could mean that cooling and electricity systems are leaking.

Electrical lines need to be checked every so often. During operation, thermal cycling can slowly loosen connections, which can raise the resistance and create hot spots. It should be standard practice to check the torque of the main power connections every three months and the connections to the control circuit every year. Most of the field failures we record can be avoided by following these easy steps.

Safety Compliance and Hazard Mitigation

Electrical dangers need to be respected and properly protected. Our systems have many layers of safety, including ground fault detection, emergency stop circuits, and interlocked access panels that keep people from touching parts that are on. When operators are trained, they are told that capacitors may still hold charge even after the power is turned off, so they need to be discharged properly.

Concerns about electromagnetic field exposure come up with induction equipment. Even though our designs follow the exposure limits, it's still a good idea to mark off areas where people with pacemakers or other implanted electronic devices shouldn't go. Because high-frequency fields are localised, the amount of radiation drops quickly as you move away from the coil area.

When working with hot objects, you need to take normal safety measures. Wearing the right safety gear, making sure there are designated cooling areas, and following proper handling techniques can keep you from getting burnt. The fast heating feature helps with production, but it also needs careful attention from the user when loading and removing.

Conclusion

If you choose high-frequency furnace induction heating for your casting or heat treatment business, you will save money on energy costs, have more control over the process, and be able to make more products. Because they work on electric principles, these systems heat up faster, more evenly, and more cleanly than other options. To have a successful deployment, you need to choose your provider carefully, pay attention to the total cost of ownership, and be dedicated to using and maintaining the system correctly. Since 2008, we've been building and making metallurgical equipment. We've seen that plants that switch to current induction systems usually get their money back within 18 to 36 months by saving energy, improving quality, and increasing output.

FAQ

How much energy can we save by switching to induction heating?

When compared to resistance or gas-fired furnaces, they usually use 30 to 50 per cent less energy. The exact amount of money you save will depend on how well your current equipment works, how much you make, and what your process needs. Modern induction systems have a thermal efficiency of more than 85%, which means that most of the electricity going into the workpiece is turned into useful heat. We suggest that you do a thorough energy audit that compares your current energy use to what the induction system is expected to need. This will help you figure out how much money your business can save.

What maintenance challenges should we anticipate?

The most important ongoing requirement is cooling system maintenance. Most practical problems can be avoided by checking the water flow, cleaning the filters, and keeping an eye out for scale building on a regular basis. Inspections of electrical connections every three months catch problems as they start to form before they become major problems. Modern solid-state systems don't need many parts replaced. Induction coils wear out over time from thermal cycling, but in normal industrial settings, they usually last longer than 3 to 5 years.

Can these furnaces process different metals without modifications?

The frequency range can be changed to work with steel, iron, copper, aluminium, and special alloys, all of which are conductive metals. For different materials, the frequency may need to be changed to get the best heating results, but this is done through the settings on the control panel, not by making any physical changes. Our systems can quickly switch between different goods or materials without having to recalibrate them by hand because they store multiple program settings. Materials that aren't conductive can't be heated by electromagnetic induction.

Partner with Shaanxi Heyuan for Superior Induction Heating Solutions

Shaanxi Heyuan is the high-frequency furnace source that metallurgical plants and steel mills all over North America trust. This is because we offer full solutions, from the initial design to commissioning and ongoing expert support. Our engineering team changes the layout of the furnaces to fit the size of the parts you need to process and the way you want them to work, so they work at their best from the start. Our systems give your heat treatment processes the accuracy and dependability they need with temperature control within ±5°C and thermal efficiency of over 85%. Email our technical experts at sxhyyj606@163.com to talk about your application needs and get a thorough quote. We have the knowledge and high-quality equipment that give you a competitive edge, whether you need it for precision casting, pre-forging heating, or specialised heat treatment methods. You can look at our full line of mining equipment options at hyyjfurnace-supply.com.
