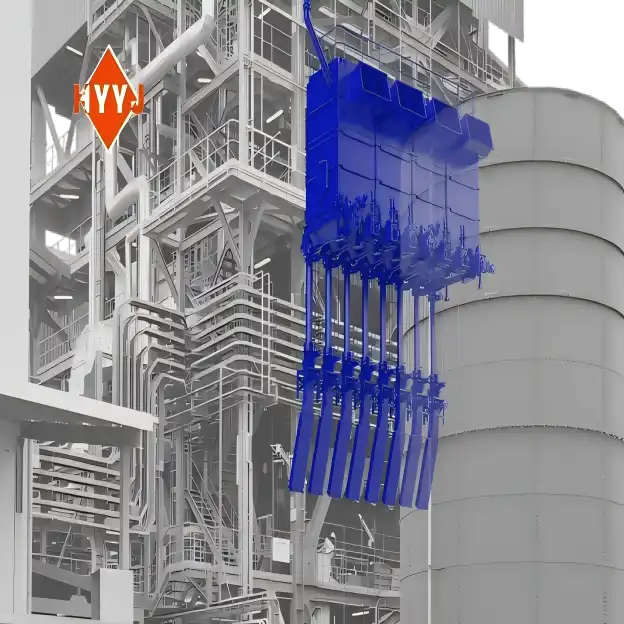

Automatic Furnace Feeding System: Key Design Considerations

When designing an Automatic Furnace Feeding System, precision engineering meets operational safety to revolutionize metallurgical production. These automated charging solutions eliminate manual handling risks while delivering consistent material flow into electric arc furnaces, induction furnaces, and converters. The critical design considerations span capacity matching, positioning accuracy, thermal resilience, and seamless integration with existing plant infrastructure. Understanding these parameters ensures your system delivers the throughput, reliability, and ROI that modern steel mills and smelting operations demand.

Understanding Automatic Furnace Feeding Systems: Components and Working Principles

The way metallurgical plants handle raw materials has changed a lot since automated charging systems were introduced. Instead of using people or simple machines to move things, these combined systems use programmable logic controllers (PLCs) and real-time sensors to handle every step of the process.

Core Components and Their Functions

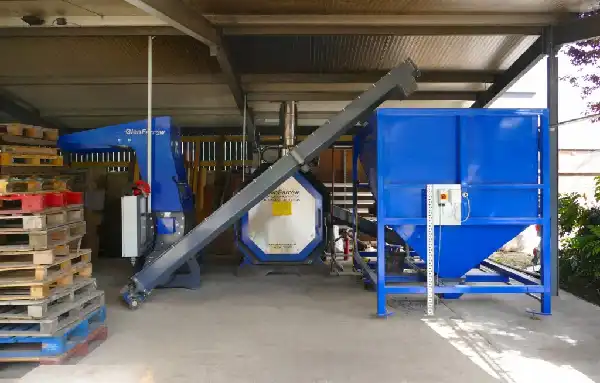

Four elements that work together make up the core of any successful feeding system. Material moves from storage bins to the furnace mouth on belt, screw, or chain-driven mechanical conveyors. Vibratory feeders use electromagnetic accuracy to control flow rates and stop spikes that could make the melt bath unstable. To keep tight stoichiometric ratios, load cells and weighing units built into hoppers measure the amount of each batch. Through SCADA interfaces, control units keep these parts in sync with each other and with the timing of furnace taps [^1].

These parts work together to deal with the harsh conditions that steelmakers have to deal with. Radiant heat from furnace openings often goes over 1200°C, so screens that are cooled by water and heat-resistant proximity sensors are needed. Standard electronics can't work properly when there is electromagnetic interference from arc discharge, so they need shielded wiring and separate signal paths. The system also has to be able to handle mechanical shocks from falling scrap and vibrations from nearby heavy machinery.

Operational Flow and Efficiency Gains

The trip of materials starts in storage tanks, where bridge-breakers keep feedstock from getting stuck when it's wet or sticky. Material is moved to hoppers that are higher than the heating floor of the furnace by conveyor systems. The discharge chute is lined up with the furnace mouth using precise positioning systems, which are usually rail-mounted or gantry-based. This ensures placement accuracy within ±50mm.

This level of accuracy is important because dumping without control causes thermal shock waves that damage refractory linings and make it hard to keep the temperature even. Instead, automated systems send materials in a trickle-feed mode, slowly stacking scrap to protect against impacts and keep the heat spread fixed. As a result, charging cycles happen 30% faster than with manual methods. This directly leads to higher annual throughput and lower energy use per ton of output[^2].

Industry-Specific Adaptations

Handling materials in different ways is needed for each metallurgy process. For electric arc furnace work, you need strong Automatic Furnace Feeding Systems that can handle rough scrap baskets, round DRI briquettes, and dusty carbon additives without contaminating other parts. Handling induction furnaces used for casting aluminum needs to be done more carefully so that the liquid metal surfaces don't get oxidized when alloying elements are added. Continuous lime input into converter operations is made possible by special "fifth hole" roof feeding systems that improve the chemistry of the slag without stopping the blow cycle.

For each use, the conveyor angles, hopper shapes, and ways of releasing the material must be customized. Professionals in procurement need to work together with engineering teams to choose systems that can handle both current material types and possible changes to the way things are done in the future.

Key Design Considerations for Selecting an Automatic Furnace Feeding System

It's important to balance a lot of technical and business factors when picking the right automated charging solution. The following things should be thought about to see if a system will provide long-term value or become a maintenance burden.

Capacity Matching and Throughput Requirements

Your feeding method needs to work with the rate at which the furnace melts things and your output goals. Systems that are too small lead to bottlenecks that lower output, while systems that are too big waste money and energy. For pre-heating and closing steps, a medium-sized EAF that makes 80 tons per heat and has a tap-to-tap time of 90 minutes needs a charging rate of about 50 to 60 tons per hour. Systems that can charge between 1 and 50 tons at a time give you the freedom to use them with different burner sizes.

Material bulk density changes a lot between shredded scrap (0.8–1.2 t/m³) and compacted briquettes (2.5–3.0 t/m³), which must be taken into account when figuring out throughput. It's important to set the hopper amounts and conveyor speeds so that they can handle times of high demand, like furnace campaigns where multiple heats run in a row without stopping.

Energy Efficiency and Drive Technology

When systems run for 8500 hours or more a year, the costs of running them add up quickly. Electric drives have exact variable-frequency control, which lets you change the speed in a way that uses the least amount of energy when the load is only partially applied. Pneumatic systems can work safely in places with a lot of dust, but they always need compressed air, even when they're not in use.

Power needs range from 15 to 150 kW, depending on the length of the conveyor, the change in elevation, and the properties of the material. When electric drives slow down, regenerative braking collects kinetic energy. This lowers the net power draw. To compare true running costs, ask vendors for written kWh/ton measures that have been checked by a third party.

Safety Compliance and Personnel Protection

Automated feeding systems have to meet strict safety standards to keep workers safe from things like molten metal splashes, toxic fumes, and being crushed by moving machinery. Safety in Industrial Thermal Processing Equipment (ISO 13577) says that systems must have fail-safe interlocks that stop work if guards are opened or sensors find people in exclusion zones[^3].

Instead of being software-based, emergency stop circuits should be built so that they always work, even if the PLC fails. Adding dust extraction stops flammable metal fines from building up near sources of ignition. Entanglement injuries can be avoided by putting up guards around pinch points and rotating parts. Clear lines of sight and good lighting also let supervisors watch operations from a safe distance.

Integration with Existing Infrastructure

Putting Automatic Furnace Feeding Systems into plants that are already running brings its own set of problems. Old furnaces might not have the structural supports needed for overhead conveyors, so they would need special hanging brackets and base support. Protocol compatibility determines how well a control system works with other systems. For example, current PLCs can communicate using Profibus and Modbus, but older furnace controllers might need signal adapters or have to run on their own.

Three-dimensional laser scanning of your building lets you do a precise fit analysis before the fabrication process starts. This method finds space problems, problems with high cranes, and the best way to route the conveyors so that they spill less material. With modular designs, installation can be done in stages during set repair windows, which means that production doesn't have to stop.

​​​​​​​

Comparing Automatic Furnace Feeding System Types and Technologies

Using different types of technology for automatic charging works best in certain situations. When procurement teams understand these trade-offs, they can choose systems that meet both short-term needs and long-term goals.

Electric vs. Pneumatic Drive Systems

Modern systems mostly use electric variable-frequency drives because they are easy to control and work well. VFDs change the speed of the motor to match the demand at any given time. This keeps mechanical parts from wearing out during start-stop cycles. Maintenance jobs include lubricating the bearings and checking the tension on the belt, which can be done by anyone in the company without any special training.

Pneumatic conveyors work well in places where there is a risk of exploding dust or where it is very hot outside, where electric motors would need expensive shelters. Compressed air moves the material through tubes that are closed off, so there are no moving parts that could get worn down by rough materials. The cost is that pneumatic systems usually use three to five times more primary energy than electric systems because the compressors are less efficient.

Automation Level and Labor Impact

Fully automated, unattended operation is the best way for large producers to get the most consistent results. These systems connect to MES (Manufacturing Execution Systems) across the whole plant to get heat plans, change charge mixes instantly, and record quality data so that problems can be tracked. From a central control room, one person can oversee multiple furnaces, freeing up workers to do more valuable jobs like quality control and process optimization.

In semi-automated systems, charge approval and furnace positioning are still done by hand, but material weighing and conveyor operation are done automatically. This set-up works well for smaller companies where furnace plans change often, and decisions should be made by people with experience. Compared to fully physical handling, the labor cuts are still 50 to 60 percent, and the capital costs are still pretty low.

Market-Leading Technology Providers

Established automation vendors offer a high level of dependability and a wide range of support services. Siemens SIMATIC controllers have strong programming environments and a lot of I/O choices that make them perfect for complicated setups with multiple furnaces. Honeywell PlantCruise systems are great at integrating data because they can connect feeding operations to enterprise planning systems so that you can see real-time tracking of production.

ABB motors and drives have the highest efficiency ratings in the business, often going above and beyond IE4 energy class norms. Mitsubishi Electric's MELSEC PLCs have small sizes that make them perfect for retrofit projects that don't have a lot of panel room. When comparing suppliers, look at the details of the warranty coverage. Top vendors usually offer comprehensive warranties that last for two to three years, and response times are measured in hours instead of days[4].

Maintenance, Troubleshooting, and Installation Best Practices

To last as long as they're supposed to, even the most advanced mechanical food systems need to be properly installed and maintained. The following actions separate setups that work well from those that don't.

Site Preparation and Professional Installation

For installs to go well, they need to start with careful site studies that record not only the space limitations but also environmental factors such as the amount of dust, the temperature ranges, and the corrosive atmospheres. Foundation designs need to take into account both the moving loads from the conveyor belt and the static loads from fully loaded hoppers. Concrete pads that are too small can become misaligned, and bearings can fail before they should.

Professional installation teams use laser alignment tools to make sure that conveyor sections are within 0.5 mm of each other and follow written procedures for checking the alignment. Before they are turned on, thermal imaging is used to check electrical terminations for loose connections that could lead to voltage drops or arcing. Commissioning includes performance tests with real production materials, not just empty-run trials, to make sure that throughput claims are true and to find flow restrictions.

Custom setup based on furnace type, capacity, and workshop plan makes sure that each system solves problems that are unique to the site. One-stop design, installation, testing, and training services from experienced providers get rid of the need for multiple companies to work together and make it clear who is responsible for the performance of the system.

Preventive Maintenance Protocols

Scheduling regular inspections keeps small problems from getting so bad that they stop production. As part of weekly checks, wear liners in hoppers and chutes should be looked at visually to see if they are wearing away. If they are, material could leak out or break through. As part of the monthly chores, bearings need to be oiled according to the manufacturer's instructions. If the oils are too thick, they damage the seals, and if they are too thin, they speed up the wear.

More invasive tasks, such as measuring belt tension with sound tools, checking the chain wear gauge, and cleaning the optical sensors, can be done every three months during repair windows. Dosing accuracy is kept within ±0.5% by using approved test weights to check the load cell's balance. Motor megohm testing finds insulation degradation before it fails. This is especially important in places with a lot of humidity, where windings can become damaged by water [5].

Systems that work in temperatures between -10°C and 200°C go through heat cycling, which makes screws loosen and angles get messed up. Retorquing important bolted joints on a regular basis and checking the alignment after seasonal temperature changes keep parts from wearing out faster.

Common Issues and Troubleshooting Methods

The most common problem that stops operations is a feeder getting clogged. This is usually caused by particles that are too big, moisture caking, or the shape of the hopper making it easier for particles to stick together. Most blockages can be cleared automatically by anti-jamming logic that includes torque monitoring and automatic reversing sequences. Material specification drift is shown by persistent jamming. Recurrent problems can be fixed by switching to screened feedstock or adjusting hopper angles.

Sensor faults show up as batch weights or positioning mistakes that change all the time. When dust builds up on optical sensors, it causes false results that stop the machine from working when it doesn't need to. By using compressed-air purge systems to blow clean the sensor lenses before each measurement cycle, 80% fewer false trips happen. If proximity sensors are having thermal drift, they should be moved away from sources of radiant heat or replaced with high-temperature models that can handle constant exposure to 200°C.

Tracking problems with the conveyor belt lead to edge wear and material spillage. Uneven loading, idler rollers that aren't lined up right, or buildup on the return rollers that makes the width uneven are some of the root reasons. Laser-guided tracking systems change the turning rollers automatically to keep the belt in the middle, and regular cleaning of the return paths keeps buildup from happening.

Future Trends and Innovations in Automatic Furnace Feeding Systems

The metallurgical equipment business is moving toward smarter, more connected systems that can improve themselves and see when they will break down before they do. People's ideas about what automated charging systems can do are changing because of these new technologies.

IoT-Enabled Monitoring and Predictive Maintenance

When sensors are connected to the internet, they turn feeding systems into data sources that show patterns in operations that humans can't see. Motor mount vibration sensors find worn-out bearings weeks before they make noise. This sets off repair plans that keep the machine from having to be shut down without warning. Monitoring the temperature of gearboxes finds lubrication breakdown, which lets oil changes be based on condition instead of random time intervals.

Cloud-based analytics platforms collect data from many installations and use machine learning algorithms to find signs of impending failure across fleets. This collective intelligence grows faster than the experience of a single plant. Predictive models can accurately predict when a component will reach the end of its useful life 85 to 90% of the time. Prioritized work orders help maintenance teams focus on tasks that really need to be done instead of tasks that are done "just in case."

AI-Driven Process Optimization

Adaptive control algorithms change the feeding parameters instantly based on the state of the kiln and the properties of the material. Vision systems look at the composition of scrap as it comes into hoppers and change charge ratios automatically to keep the metallurgy constant, even if the feedstock changes. Temperature feedback from the melt bath changes the feed rates so that the bath doesn't freeze when a lot of metal is added or when carbon is injected [^6].

Through reinforcement learning, these smart systems figure out the best ways to do things, which gradually lowers the use of electrodes, lowers the amount of refractory wear, and shortens the time between taps. Compared to static code, the overall gains in efficiency reach 8–12%, which means that high-volume makers can save a lot of money.

Sustainability and Industry 4.0 Integration

Pressures from the environment lead to new ideas in recovering energy and lowering emissions. Modern feeding systems use heat from furnace waste gases to preheat scrap, which increases thermal efficiency by 15 to 20 percent. During charging, dust suppression systems gather fugitive fumes and send them back into the charge mix to get rid of waste.

Digital twin models allow virtual commissioning before the actual installation. They test control logic and optimize conveyor patterns in software to find improvements that would need expensive changes during startup if they were found during startup. Procurement teams can get real-time information on how much material is being used thanks to seamless ERP connectivity. This lets them buy only what they need, which frees up working capital that would otherwise be used to store raw materials.

Conclusion

To choose the best automated charging solution, you need to make sure that the technical requirements match up with the realities of production while also planning for how operations will change in the future. The best Automatic Furnace Feeding Systems can handle process changes and capacity increases without major reconstruction to meet both short-term and long-term throughput needs. Safety compliance, energy efficiency, and merger compatibility should be your top priorities. This will protect your investment and improve worker output and product consistency. As Industry 4.0 technologies get better, plants that make smart purchasing choices today will be ready to benefit from AI-driven optimization and predictive maintenance in the future.

FAQ

1. How does automated feeding handle wet or sticky materials?

Ultra-high-molecular-weight polyethylene (UHMWPE) linings on steep-walled hoppers reduce friction and keep materials from sticking together. Bridge-breakers use pneumatic hammers or rotating agitators to break up clumps. Reversible screw feeders can sense high torque loads that mean there are jams and automatically reverse rotation to get rid of the problems. In cold places where wetness can freeze, heated hopper jackets keep the flow of materials going.

2. Can these systems retrofit into existing manual furnace setups?

Modular designs make it possible to add new features to plants that are already running with few structural changes. Three-dimensional scans of the building help designers make unique support structures that fit within the available space and don't get in the way of overhead cranes. Installing parts in stages during planned maintenance windows keeps production from stopping, and separate control systems don't need to be complicatedly connected to old furnace controllers until the whole plant is automated.

3. What maintenance extends system lifespan in high-dust environments?

Motor enclosures with an IP65 rating keep conductive dust out, and optical sensors that are regularly flushed with compressed air keep them from giving false readings. By replacing the substitute wear plates in hoppers and chutes every three months, structural parts stay protected from damage. Mechanical reliability is maintained by checking sealed bearings and chain lubrication points on a regular basis. With regular repair, a system can usually last longer than 15 years of nonstop use.
