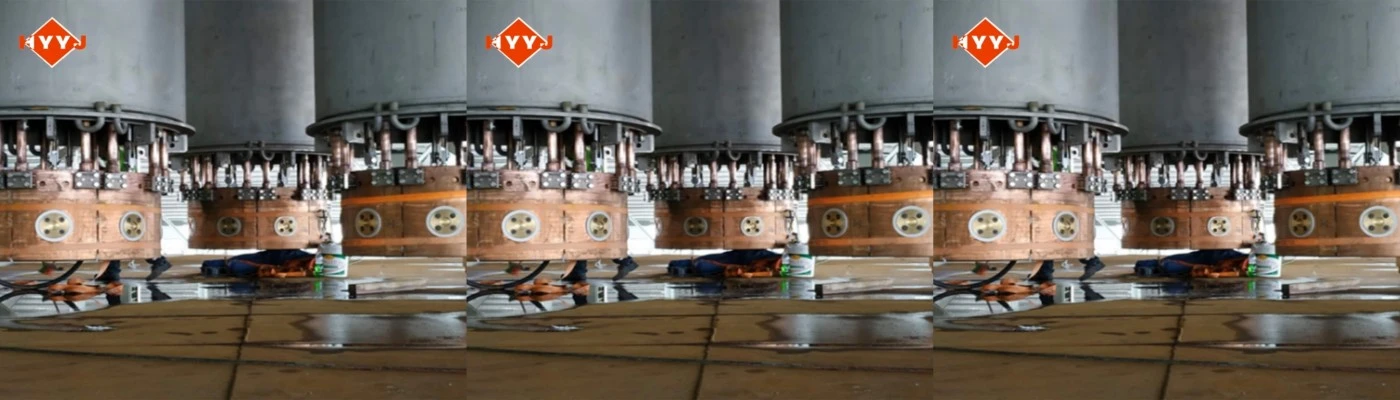

Automatic Electrode Lengthening Equipment

Automatic Electrode Lengthening Equipment - Advanced Industrial Solution

The Automatic Electrode Lengthening Equipment from Shaanxi Heyuan automates electric arc furnaces, refining furnaces, and buried arc furnaces at a company level. Our high-tech machine can work with electrodes with sizes ranging from 300mm to 1200mm, and each extension cycle takes no more than 30 seconds. With a maximum extension length of 1500 mm per operation and a joint concentricity precision of ≤0.5 mm, this equipment makes sure that the melting process doesn't stop. With more than 20 years of experience in metallurgy and more than 400 successful installations around the world, our solution gets rid of the need for human work while keeping high conductivity and safety throughout your production cycle.

Why Choose Our Electrode Extension System?

Enhanced Safety and Reliability

Your workers no longer have to go into dangerous areas with high electricity and high temperatures. Our automatic method gets rid of the risks of arc flashes and burns that happen when electrodes are handled by hand. The equipment works consistently in harsh conditions, withstanding temperatures ranging from -10°C to 400°C and continuing to work properly in places with a lot of dust.

Continuous Production Flow

When you change the electrodes by hand, it stops the melting process and throws off the furnace's temperature profiles. Our method keeps output going by extending electrodes without having to turn off the power. These changes directly lead to more output and less energy use per ton of product.

Precision Engineering

Joint concentricity of ≤0.5mm makes sure that there is very little contact resistance and stable electrical flow. This accuracy stops problems with arc instability that can hurt furnace linings and lower the quality of the product. Your electrode columns stay exactly lined, which extends their useful life.

Technical Specifications

Key Performance Features

Advanced Automation Technology

The system automatically triggers extension programs based on real-time electrode consumption monitoring. Infrared distance sensors continuously track electrode position, eliminating guesswork and manual calculations. Your furnace maintains optimal arc length without operator intervention.

Rapid Extension Capability

Single extension cycles complete in 30 seconds or less, ensuring your smelting rhythm remains unaffected. This speed advantage keeps your production schedule on track while maintaining thermal efficiency throughout the process.

Universal Electrode Compatibility

Whether you're using graphite electrodes for steelmaking or Soderberg electrodes for ferroalloy production, our Automatic Electrode Lengthening Equipment adapts to various specifications. You won't need separate devices for different electrode types, reducing capital investment and maintenance complexity.

Comprehensive Safety Systems

Built-in detection systems monitor joint quality and electrode status in real-time. Safety interlocks prevent operation under unsafe conditions, while automatic quality verification ensures each extension meets your standards before resuming production.

Application Versatility

Electric Arc Furnace Operations

Perfect for steelmaking applications where graphite electrode consumption demands frequent lengthening. The system's precision torque application prevents joint failures that could damage expensive furnace components.

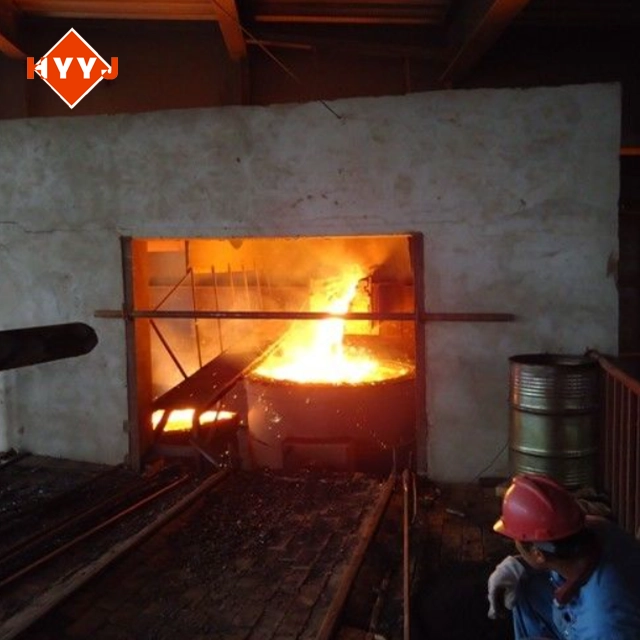

Submerged Arc Furnace Production

Ideal for ferroalloy manufacturing where continuous operation is critical. The equipment handles the challenging environment of silicon, manganese, and other alloy production processes with exceptional reliability.

Refining Furnace Applications

Supports secondary metallurgy operations where electrode integrity directly impacts final product quality. Consistent extension quality ensures stable arc characteristics throughout the refining process.

Why Shaanxi Heyuan Stands Apart

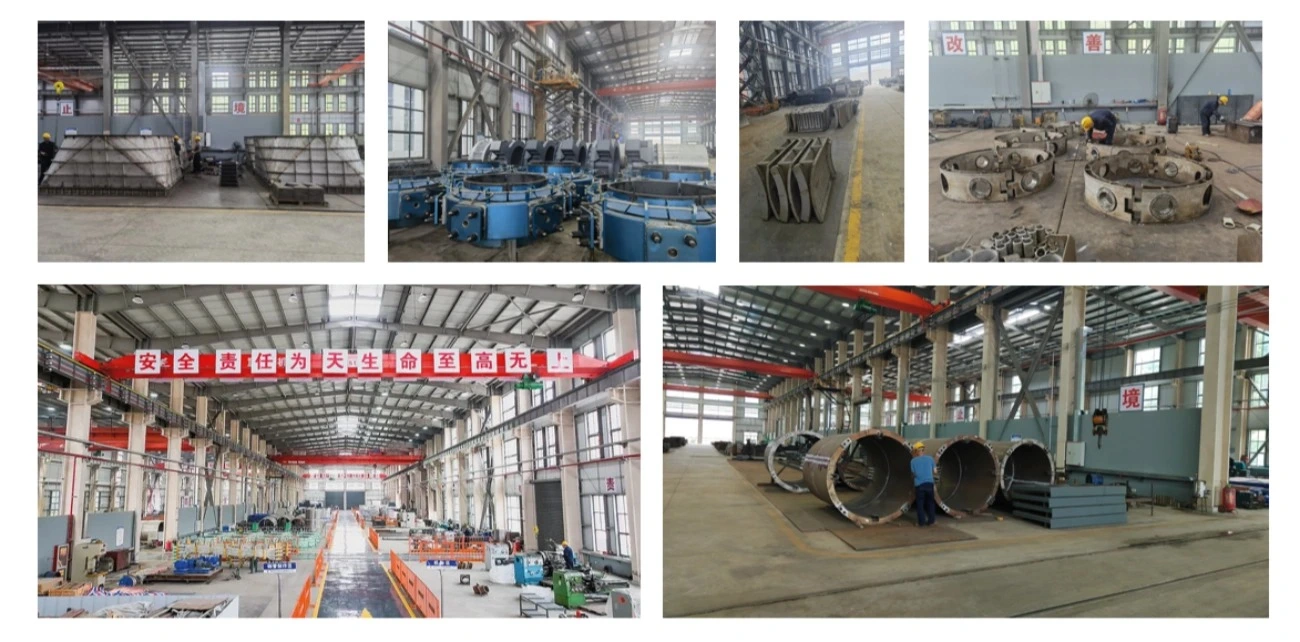

Our 20+ years of metallurgical experience translates into equipment that works reliably in real-world conditions. We understand the challenges you face because we've solved them for over 400 customers across diverse markets including South Korea, Kazakhstan, Iran, Vietnam, and many others.

Complete Service Support

We provide custom configuration based on your specific electrode specifications and furnace type. Our team handles on-site installation, commissioning, and operator training to ensure smooth integration with your existing systems.

Proven Track Record

Since 2003, we've delivered solutions for furnaces ranging from 6,300kVA to 72,000kVA capacity. This experience across diverse applications means we understand the unique requirements of your operation.

Fast Delivery and Support

Standard configurations ship within 15-20 days, while custom designs require only 30-45 days from order confirmation. Our product comes with comprehensive after-sales support, including maintenance guidance and wearing parts supply.

Maximize Your Investment Return

The elimination of manual electrode handling reduces labor costs while improving safety compliance. Continuous operation capabilities increase your furnace utilization rates, directly impacting your bottom line. Precise joint quality extends electrode life and reduces consumption per ton of product.

Your production efficiency improves through reduced downtime, while consistent arc characteristics enhance product quality. The equipment typically pays for itself within 12-18 months through these combined operational improvements.

Contact Us

Ready to enhance your furnace operations with Automatic Electrode Lengthening Equipment? Contact us at sxhyyj606@163.com for customized solutions.
